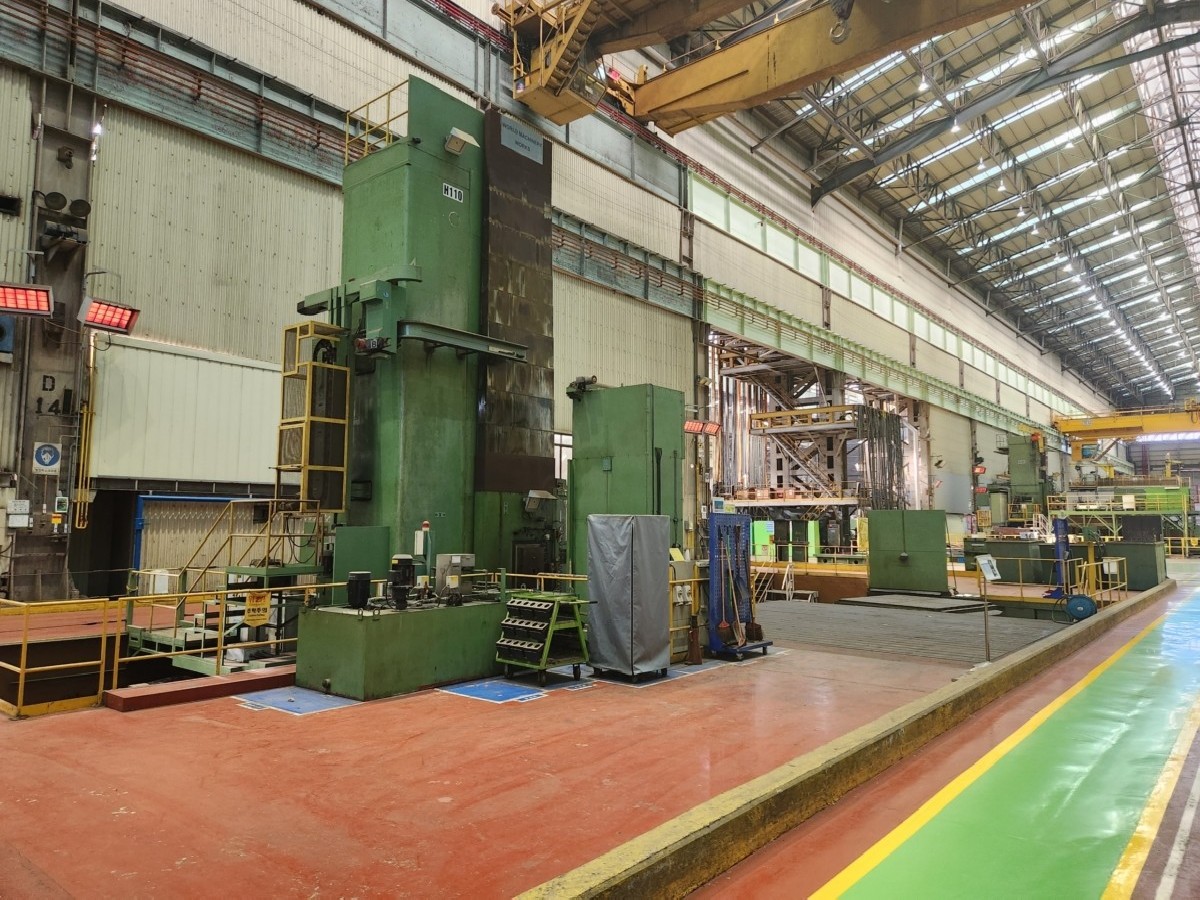

| Machine type: | Floor-type horizontal boring machine - sleeve |
| Manufacturer: | WMW |
| Year of manifacturing: | 2009 |
| Type: | BP 160 CNC |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p196614 |
| Make | WMW |
| Type of machine | BP 160 CNC |
| Year of manufacture | 2009 |
| Control system | Siemens 840 D |
| spindle motor | 100 kW |
| spindel speed | 4~2500 U/min |
| x-travel | 11000 mm |
| y-travel | 5000 mm |
| Total power requirement | kW |
| max. Table load | Max. Tischbelastung 40 Tonnen |
| Rapid feed |  |
| Spindle lock | 50 |
| Dimensions L x W x H | (L,B,H) 23500 x 4750 x 11000 mm |
| Control | CNC |
| Machine's weight | 200 Tonnen |
| Spindle diameter | 160 mm |
| Overall dimensions | 23,5 x 4,7 x 11,0 m |
| Table dimensions | 2500 x 2500 mm |
| Table travel | 2000 mm |
| Plate area | 3 Stück je 2000 x 6000 x 420 mm |
| Traverse | (X,Y,Z,W) 11000 x 5000 x 1200 x 1000 mm |
| Slide dimension | 620 x 500 mm |
| Delivery period | Sofort |
| Price | Auf Anfrage |
