| الصانع | Titan |
| النوع | SC43-3HY-CNC-MSF-01 |
| سنة الصنع | 2009 |
| قطر الدوران | 4250 mm |
| التحكم | Siemens Sinumerik 850D |
| الارتفاع الدوار | 3200 mm |
| قطر الطاولة | 4000 mm |
| قدرة المحرك | 0 HP/kW |
Anzahl Werkzeugposition: 12
Anzahl Paletten: 1

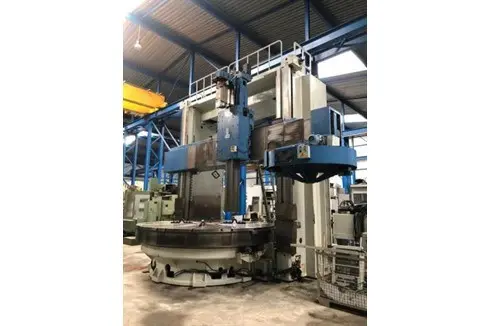

Lathes / Vertical turret lathes
Brand: Titan
Type: SC43-3HY-CNC-MSF-01
CNC brand: Siemens
CNC model: Sinumerik 840D
Year of make: 2009

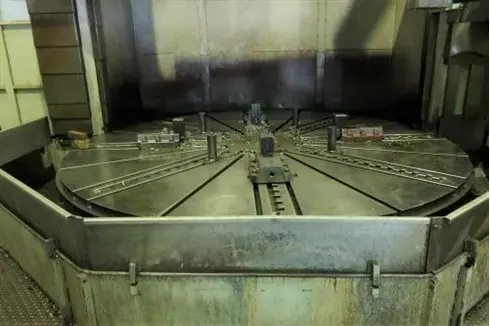

Jawplate diameter: 4.000 mm ø
Maximum turning diameter : 4.250 mm ø
Turning height: 3.200 / 2.950 mm
X: 2.810 mm
Z: 1.750 mm
Intake: BT50
Revolutions: 1 - 60 RPM
Vertical travel of RAM (on ballscrew): 1.750 mm
Tool changer: 12 Positions
Maximum table load: 80.000 kg
Machine dimensions (lxwxh): 12.700x 9.850 x 6.040 mm
Machine weight: 95.000 kg

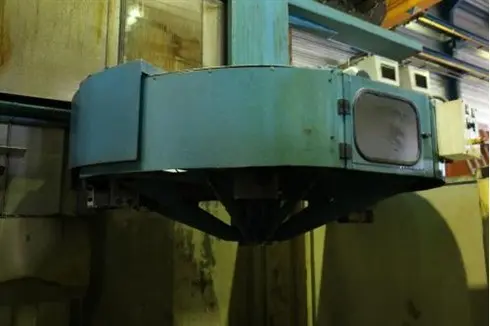

RAM head size: 300 x 300 mm
Main table motor: 100 kW
Double column
CNC controlled
C axis attachment
Milling attachment

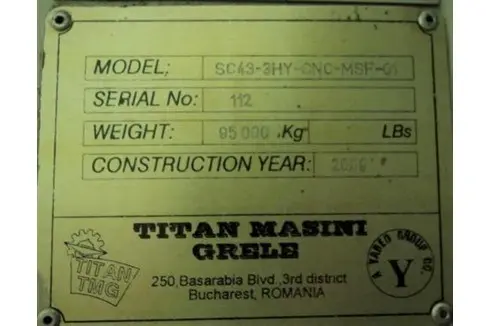

Machine nr.: D785
