CONTROLS
CNC controls HEIDENHAIN ITNC 530

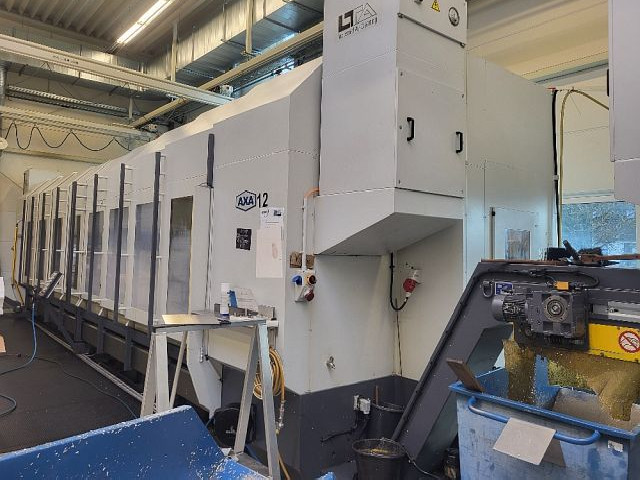

BASIC DESIGN
basic design: moving column
WORKING RANGE -CUBIC-
number of processing axes (excl parallel axes): 5
X-axis travel: 8000 mm
Y-axis travel: 700 mm
Z-axis travel: 850 mm
rotating range B-axis from: 90 °
rotating range B-axis up to: -90 °
distance of axis of horizontal spindle - clamping surface (max.): 1030 mm

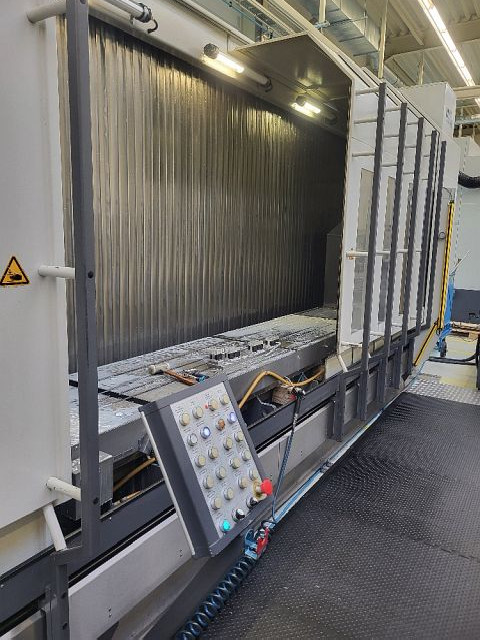

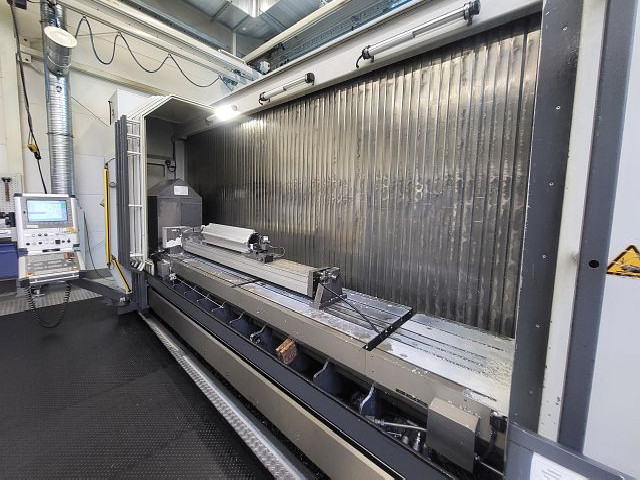

TABLE
table surface (left-right): 8930 mm
table surface (front-back): 600 mm
SPINDLE / HEAD
tool fixture: HSK A63
spindle revolutions (min): 30 /min
spindle revolutions (max): 15000 /min
tool fixture: HSK A63
drive power S6 40%: 30 kW
spindle torque S6 40%: 143 Nm
AXIS DRIVES
traverse velocity X (max): 10000 mm/min
traverse velocity Y (max): 10000 mm/min
traverse velocity Z (max): 10000 mm/min
rapid traverse X: 40000 mm/min
rapid traverse Y: 40000 mm/min
rapid traverse Z: 30000 mm/min
TOOL MAGAZINE
number of positions: 36
tool diameter max.: 85 mm
- with free neighbour positions: 135 mm
tool length max.: 400 mm
tool weight max.: 10 kg
tool changing time: 5 s
ELECTRICAL SPECIFICATIONS
mains power supply: 55 kVA
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
space requirements -left/right-: 11200 mm
space requirements -front/back-: 3300 mm
total height: 3300 mm
total weight approx.: 28000 kg
ATTACHMENTS
guideway covers: yes
chip conveyor: yes
coolant unit: yes
band filtration unit: yes
through spindle coolant attachment: yes
closed cabin: yes
European CE standards: yes
X = 8000mm or 2x 3750mm pendulum stroke (vertical)
- Internal cooling 40 bar
- Coolant tank 800 liters
- Belt filter
- 3 D radio measuring probe
- Raising the machine table by 70mm
- Table load 1200kg/m²
- Machines currently in storage and no longer powered
- 2 round tables with clamping cubes
