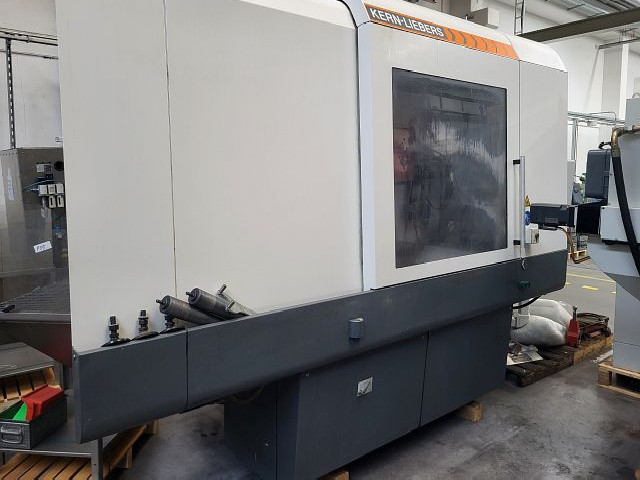

Surface Grinding Machine - Horizontal BLOHM PLANOMAT 608

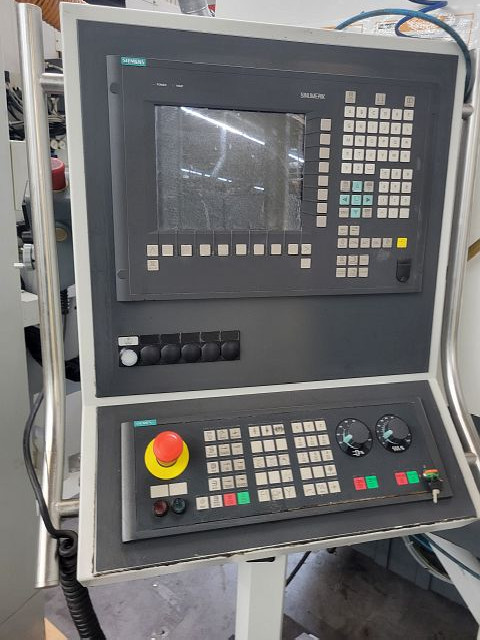

CONTROLS
  CNC controls SIEMENS S7

WORKING RANGE SURFACE GRINDING
  grinding length: 800 mm
  grinding width: 600 mm
  vertical travel: 55 mm

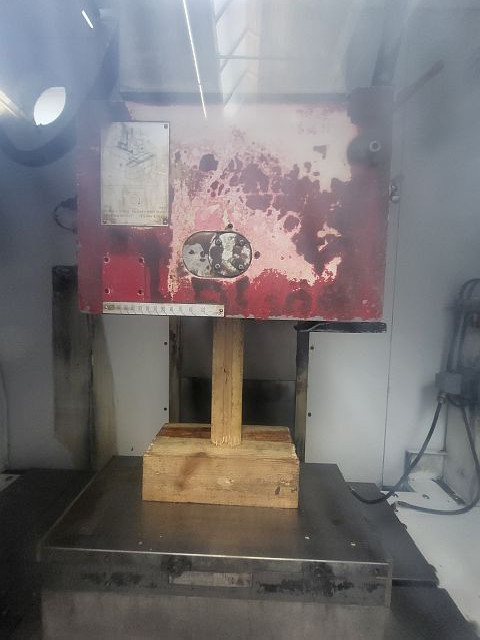

TABLE (SURFACE GRINDING)
  table surface (left-right): 1200 mm
  table surface (front-back): 600 mm
  workpiece load (max): 800 kg
  magnetic table: yes

SPINDLESTOCK GRINDING SPINDLE
  X-axis travel: 900 mm
  Y-axis travel: 550 mm
  Z-axis travel: 560 mm
  drive power: 15 kW

GRINDING TOOL
  type of grinding tool: wheel
  diameter (max): 400 mm
  borehole: diameter: 127 mm
  width: 80 mm

ELECTRICAL SPECIFICATIONS
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  total weight approx.: 5000 kg
