CONTROLS

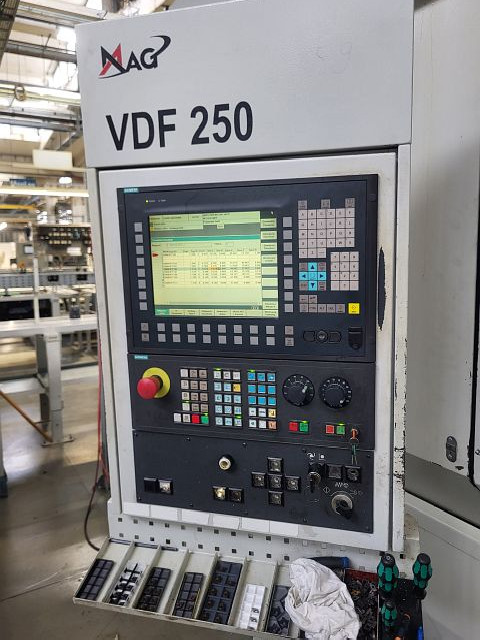

CNC controls SIEMENS SINUMERIK 840 D
BASIC FUNCTIONS
number of spindles: 2
number of x/z slides: 2
number of turrets: 2
live positions: yes
number of c-axes: 2
WORKING RANGE TURNING
swing diameter (max): 600 mm
turning diameter (max): 290 mm
bar diameter (max): 82 mm
worpiece length max.: 850 mm
MAIN SPINDLE
spindle revolutions (max): 4500 /min
spindle bore diameter: 65 mm
c-axis: optional
COUNTER SPINDLE
spindle revolutions (max): 4500 /min
c-axis: yes
X/Z SLIDE
tool fixture: Turret
ELECTRICAL SPECIFICATIONS
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
space requirements -left/right-: 6000 mm
space requirements -front/back-: 2300 mm
total height: 2500 mm
total weight approx.: 11000 kg
