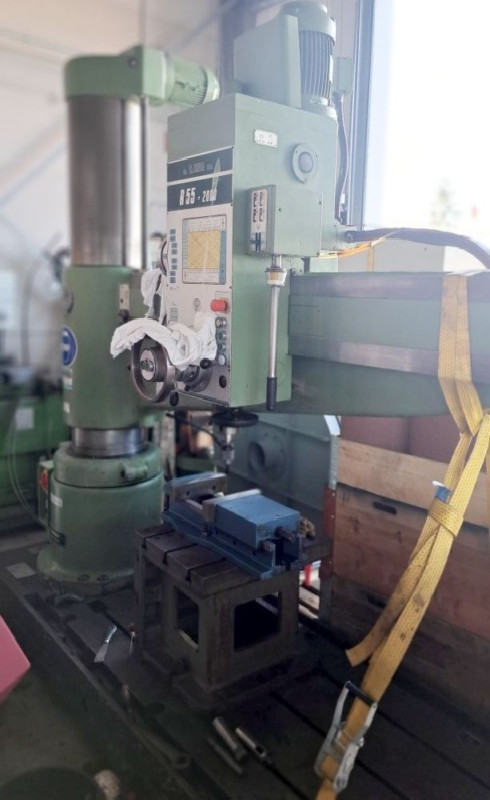

| Machine type: | Radial Drilling Machine |
| Manufacturer: | BREDA / GI-EFFE-DI |
| Year of manifacturing: | 1989 |
| Type: | R 55 - 2000 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p228999 |
| Make | BREDA / GI-EFFE-DI |
| Type of machine | R 55 - 2000 |
| Year of manufacture | 1989 |
| spindel speed | 30-1200 U/min |
| feed range | 0,06 - 1,0 mm/U |
| Total power requirement | 7,2 kW |
| Spindle lock | 5 |
| Control | konventionell |
| Machine's weight | 4,5 t |
| Sweep | 2005 mm |
| Drive power | 4,4 kW |
| Overall dimensions | 3,00 x 0,80 x 2,80 m |
| Table dimensions | 1500 x 800 mm |
| Spindle travel | 310 mm |
| Drilling diameter (in steel) | 55 mm |
| Column diameter | 360 mm |
| Outrigger vertical adjustment | 505 - 1670 mm |
| Distance from spindle / support plate | 825 - 1670 mm |
| Operating voltage | 400 V |
| Outrigger horizontal adjustment | 495 - 2.000 mm |
| Delivery period | sofort |
| Price | Auf Anfrage |
