CONTROLS
CNC controls SIEMENS 840D SL 4.8
WORKING RANGE -CUBIC-
number of processing axes (excl parallel axes): 4
X-axis travel: 210 mm
Y-axis travel: 270 mm
Z-axis travel: 360 mm

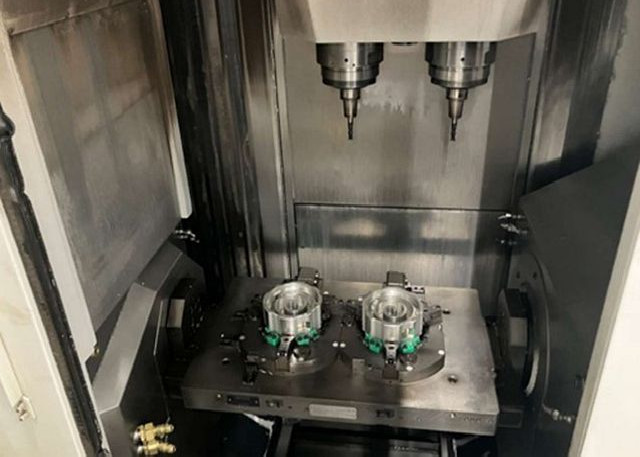

SPINDLE / HEAD
spindle revolutions (max): 40000 /min
tool fixture: HSK A40
TOOL MAGAZINE
number of positions: 72
AUTOMATIC WORKLOAD EQUIPMENT

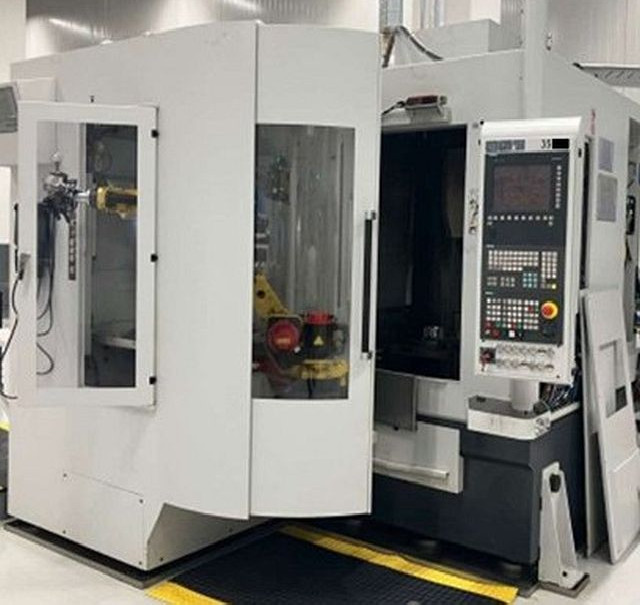

workpiece manipulator: articulated robot
number of store positions: 36
ELECTRICAL SPECIFICATIONS
mains voltage: 400 V
mains frequency: 50 Hz

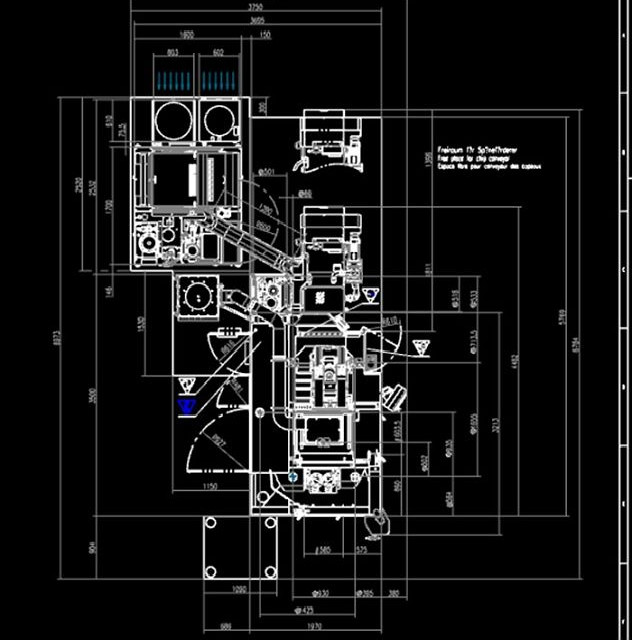

DIMENSIONS / WEIGHTS
space requirements -left/right-: 8500 mm
space requirements -front/back-: 2500 mm
total weight approx.: 6000 kg
ATTACHMENTS
central lubrication system: yes
chip conveyor: yes
coolant unit: yes
through spindle coolant attachment: yes
European CE standards: yes
-Siemens tool management with retooling
-Fanuc Automation Robot M-10IA
-Operating hours: 7,200 h - of which spindle 1 original, spindle 2: 3896 h
