| Machine type: | CNC Turning Machine |
| Manufacturer: | DAEWOO DOOSAN |
| Year of manifacturing: | 2001 |
| Type: | PUMA 400 LMB |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p192482 |
| Make | DAEWOO DOOSAN |
| Type of machine | PUMA 400 LMB |
| Year of manufacture | 2001 |

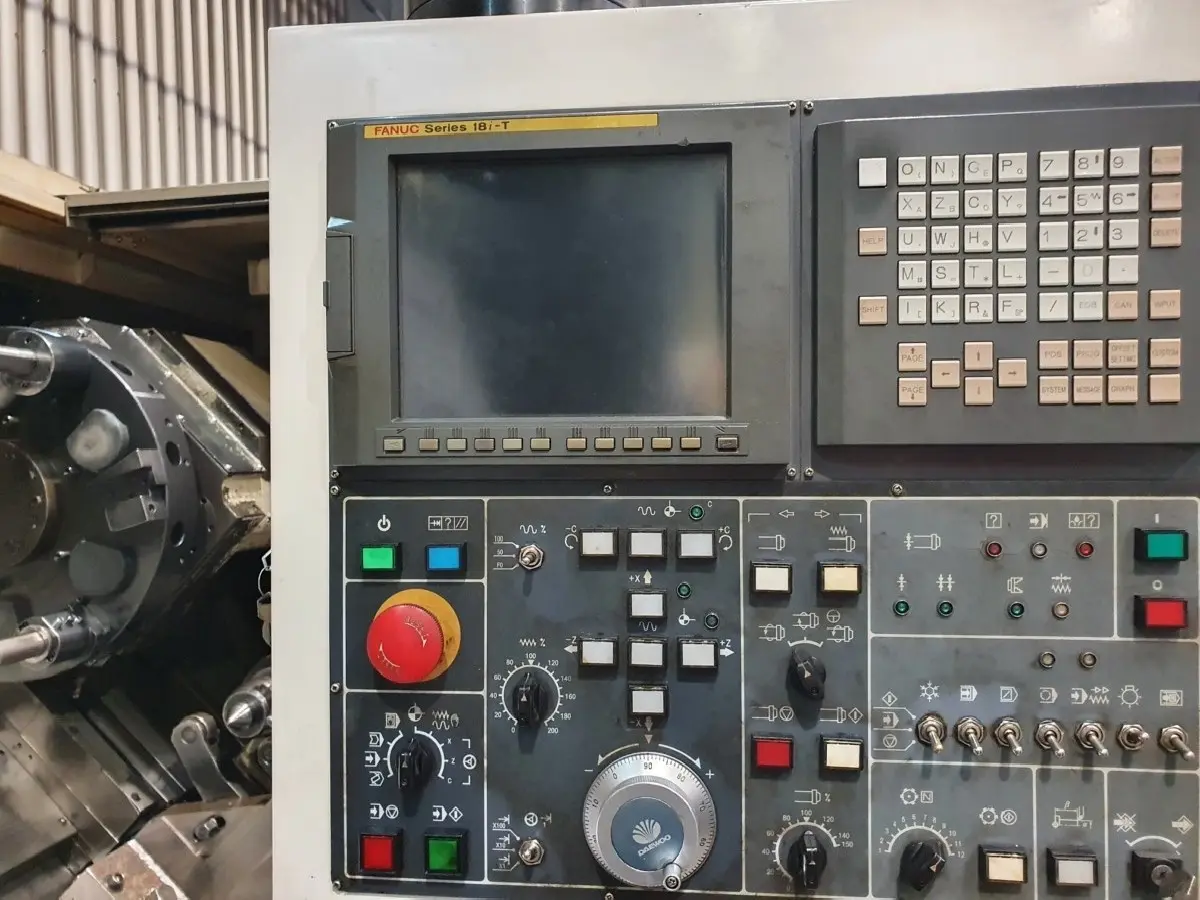

| Control system | FANUC 18T |
| Total power requirement | 50 kW |
| Cutting diameter | 700 mm |
| Speed range | 15~ 2000 U/min |
| Sleeve travel | 120 mm |
| Control | CNC |
| Spindle nose | A2 11 |
| Shank diameter | 32 x 32 mm |
| Turning length | 2000 mm |
| Core diameter | 116 mm |
| Chip removal device |  |
| Tailstock | JA 120 MM |
| Machining diameter over bed | 550 mm |
| Traverse X-axis | 362 mm |
| Traverse Z-axis | 2505 mm |
| Rapid X - axis | 16 m/min |
| Rapid Z - axis | 20 m/min |
| Sleeve diameter | 120 mm |
| Spindle drive power | 26/22 kW |
| Turret | 12 |
| Clamping assembly | 6 |
| Torque | 125 |
| Delivery period | nach Vereinbarung |
| Price | Auf Anfrage |
