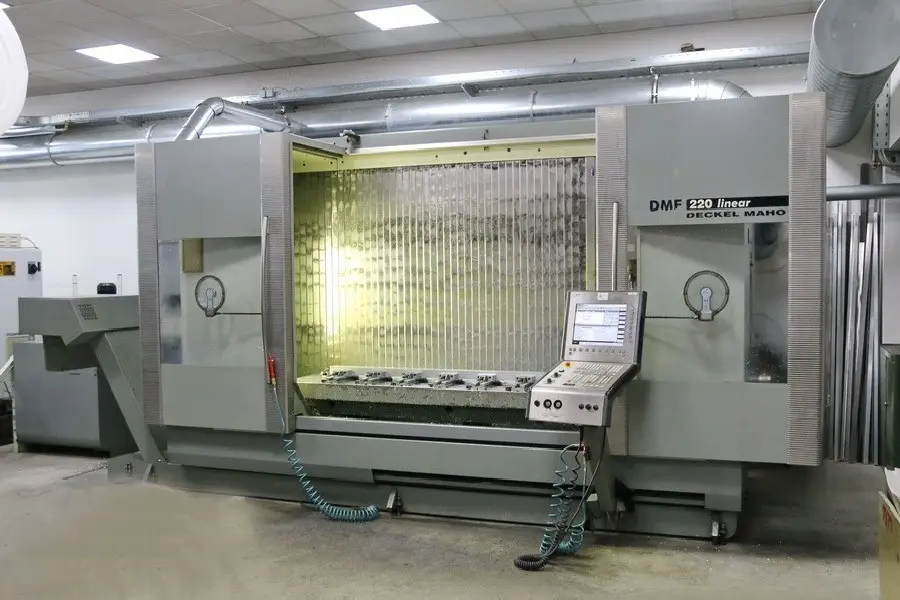

| Machine type: | Machining Center - Vertical |
| Manufacturer: | DECKEL MAHO |
| Year of manifacturing: | 2002 |
| Type: | DMF 220 linear |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p194116 |
| Make | DECKEL MAHO |
| Type of machine | DMF 220 linear |
| Year of manufacture | 2002 |
| Control system | 840 D Powerline ShopMill Siemens |
| Tool holder | SK 40 |
| Torque on the spindle | 130 / 87 Nm |
| x-travel | 2.200 mm |
| y-travel | 560 mm |
| z-travel | 720 mm |
| Table area | 2.600 x 600 mm |
| max. Table load | 2.200 kg |
| Total power requirement | 60 kVA |
| Control | CNC |
| Machine's weight | 12,5 t |
| Chip removal device |  |
| Cooling system | |
| Tool changer assembly | 30 pos. |
| Tool diameter | 80 / 125 mm |
| Tool weight | 6 kg |
| Overall dimensions | 6,0 x 3,7 x 2,9 m |
| Feed speed | 20.000 mm/min |
| Tool length | 300 mm |
| T-slot - width | 18 H7 mm |
| T-slot - distance | 100 mm |

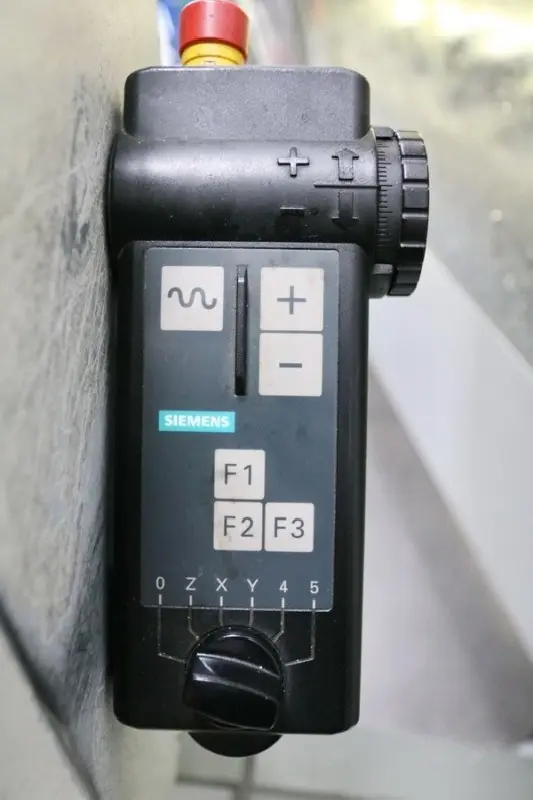

| Handwheel, electronic | |
| Internal coolant supply | 40 bar |
| High-pressure coolant | |
| Number of T-slots | 6 |
| Main spindle speed range | 20 - 12.000 min/-1 |
| Paper belt filter | |
| Main spindle power | 35 / 25 kW |
| Documents | |
| Lighting of work premises | |
| 3D Measuring probe | Heidenhain TS 631 |
| Delivery period | nach Absprache |
| Minimum programmable increment | 0,01 mm |
| Number of tool slots | 30 pos. |
| Price | Auf Anfrage |
| Resolution | 0,001 mm |
