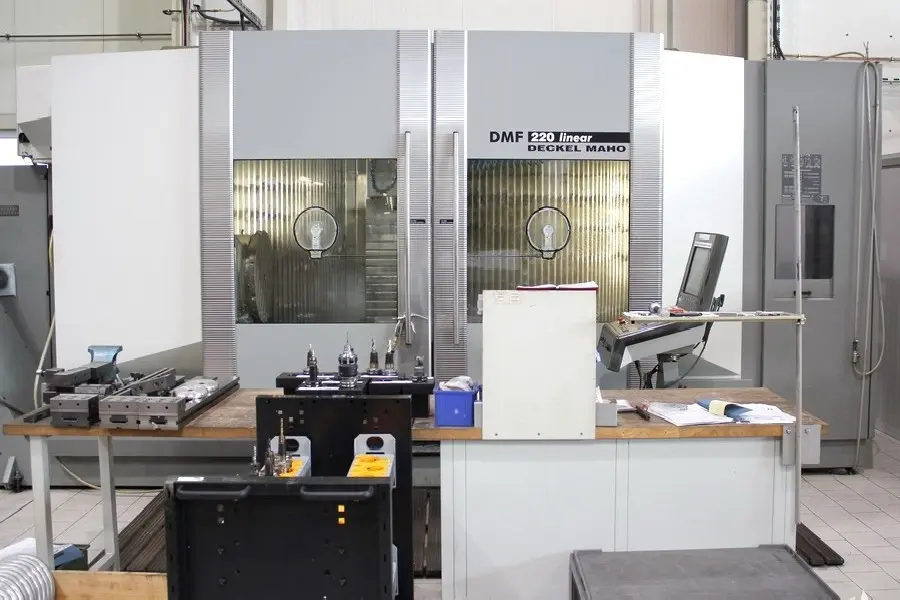

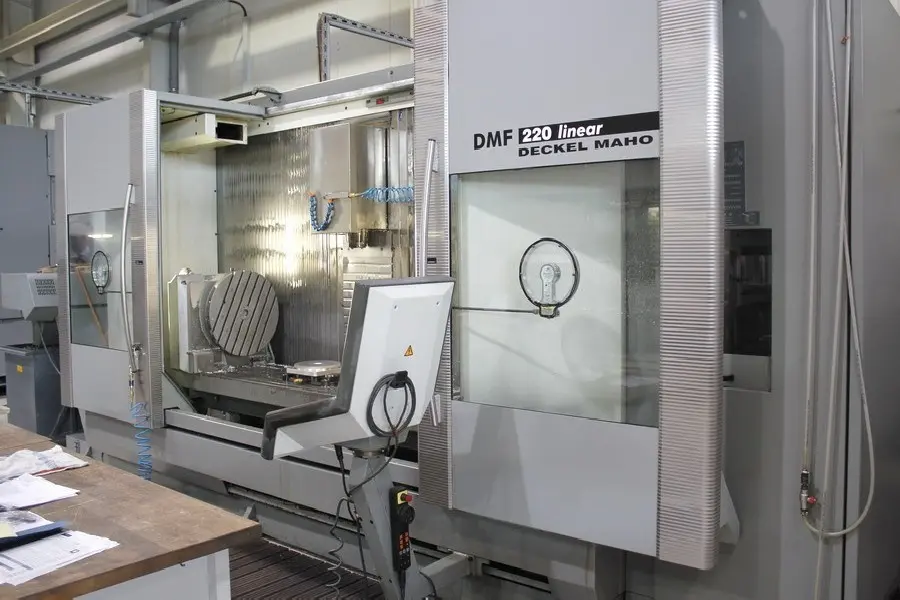

Machine type: | Travelling column milling machine |
Manufacturer: | DECKEL MAHO |
Year of manifacturing: | 2003 |
Type: | DMF 220 Linear |
Condition: | used |
Attended time: | h |
Number of reference: | p204725 |
Make | DECKEL MAHO |
Type of machine | DMF 220 Linear |
Year of manufacture | 2003 |
Control system | iTNC 530 Heidenhain |
Tool holder | SK 40 |
x-travel | 2.200 mm |
y-travel | 560 mm |
z-travel | 720 mm |
Table area | 2.600 x 600 mm |
max. Table load | 2.200 kg |
Total power requirement | kW |
Control | CNC |
Machine's weight | 12 t |
Chip removal device | |
Cooling system | |
Tool magazine | 100 pos. |
Tool diameter | 80 mm |
Tailstock | 350 mm / MK 5 |
Tool weight | 6 kg |
Overall dimensions | 7,0 x 4,2 x 2,7 m |
Rapid X - axis | 100 m/min |
Rapid Y - axis | 50 m/min |
Rapid Z - axis | 50 m/min |
Tool length | 300 mm |
Handwheel, electronic | |
Drive power – milling spindle | 35 / 25 kW |
Oil mist aspiration plant | |
Internal coolant supply | 40 bar |
Speed range - milling | 20 ~ 12.000 U/min |
Delivery period | nach Absprache |
Price | Auf Anfrage |
