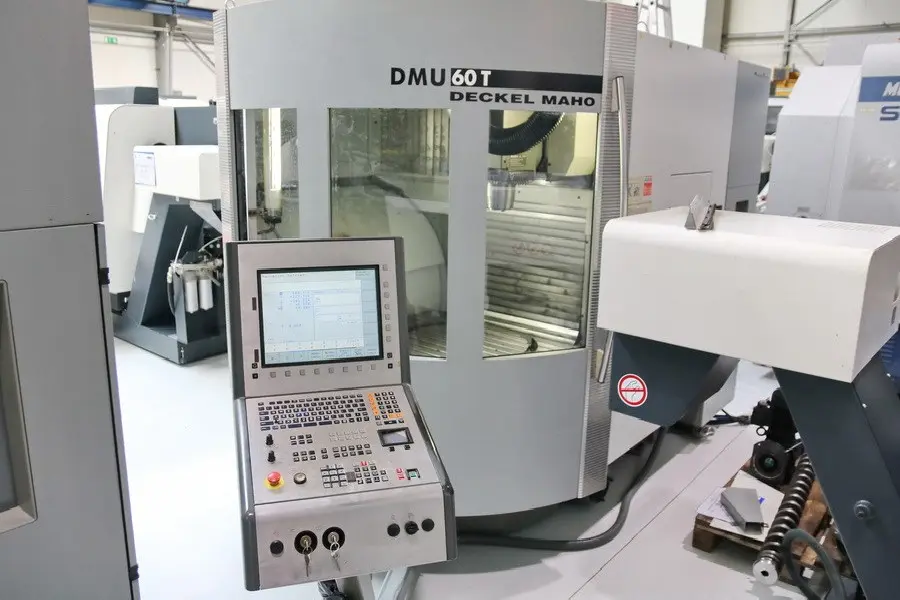

Machine type: | Machining Center - Universal |
Manufacturer: | DECKEL MAHO |
Year of manifacturing: | 2003 |
Type: | DMU 60 T |
Condition: | used |
Attended time: | h |
Number of reference: | p215547 |
Make | DECKEL MAHO |
Type of machine | DMU 60 T |
Year of manufacture | 2003 |

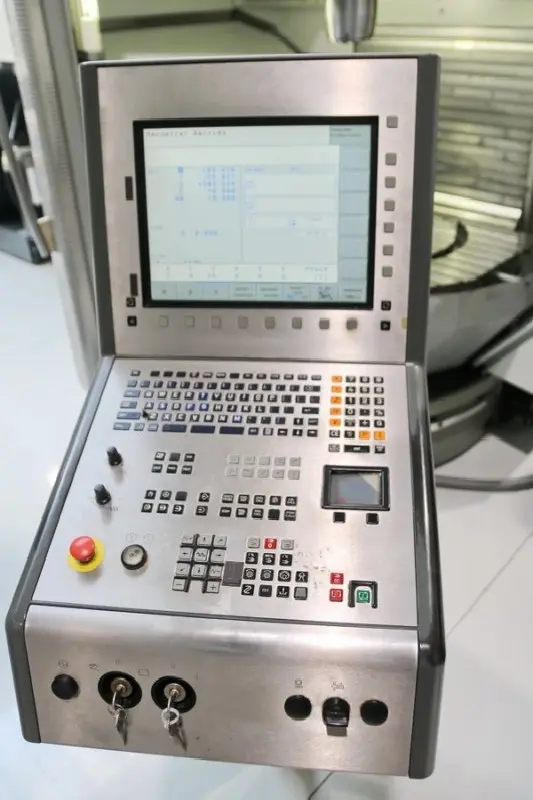

Control system | iTNC 530 Heidenhain |
Tool holder | MAS BT 40 |
Torque on the spindle | 125 Nm |
x-travel | 630 mm |
y-travel | 560 mm |
z-travel | 560 mm |
max. Table load | 350 kg |
Total power requirement | 26 kVA |
total weight | max. 100 kg |

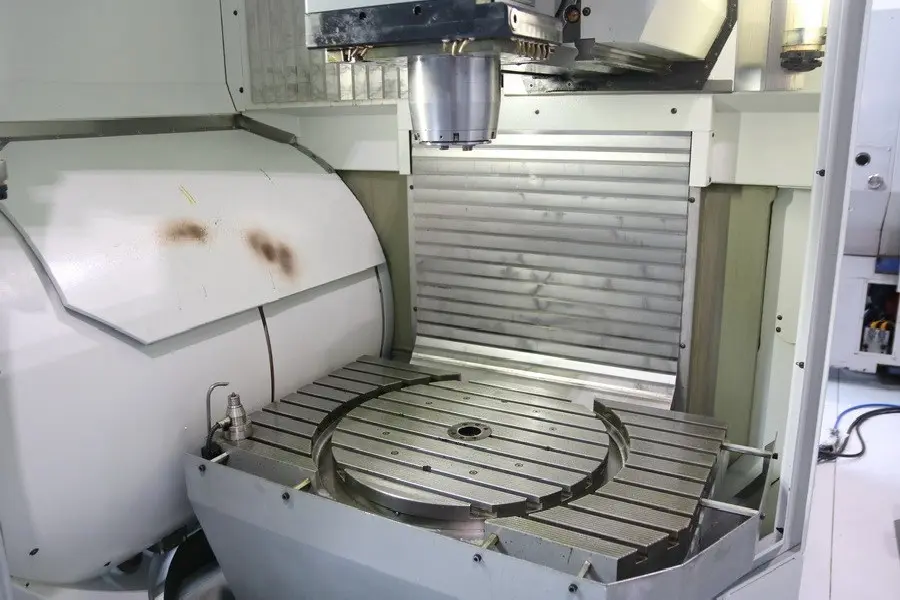

Round table diameter | 600 mm |
Control | CNC |
Machine's weight | 6,7 t |
Clamping area | 1.000 x 600 mm |

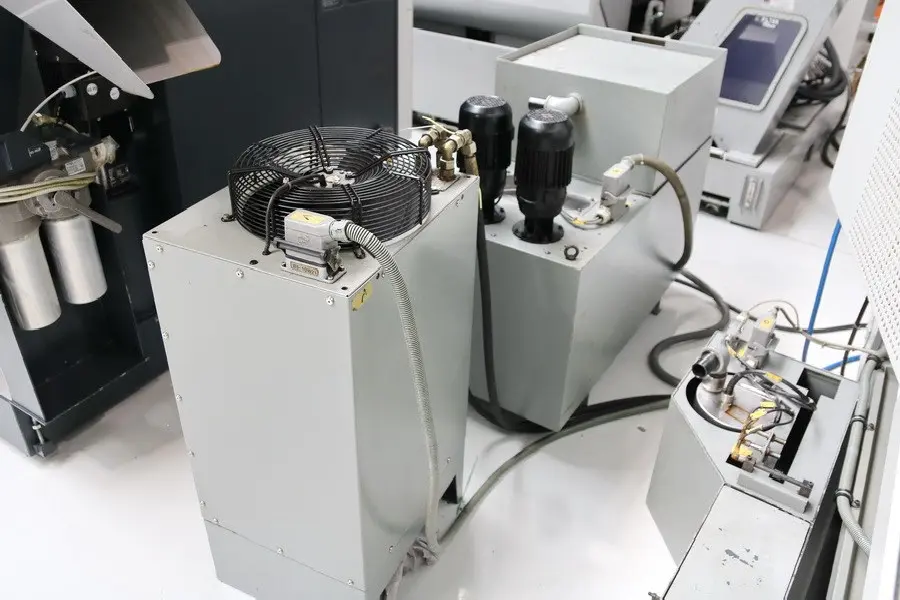

Cooling system | |
Tool changer assembly | |
Tool diameter | 80 mm |
Tool weight | 8 kg |
Overall dimensions | 4,0 x 4,0 x 3,0 m |
Feed speed | 20 - 10.000 mm/min |
Rapid X - axis | 26 m/min |
Rapid Y - axis | 26 m/min |
Rapid Z - axis | 20 m/min |
Tool length | 315 mm |
T-slot - width | 14 H12 / 14 H7 |
T-slot - distance | 63 mm |
Number of T-slots | 8 / 1 |
Main spindle speed range | 20 - 12.000 min/-1 |
Main spindle power | 15 / 10 kW |
Documents | |
3D Measuring probe | Heidenhain TS 641 |
NC – rotary table | |
Delivery period | sofort |
Tool position determination | Heidenhain TT 130 |
Minimum programmable increment | 0,001 mm |
tilt +/- | B: 103 ° |

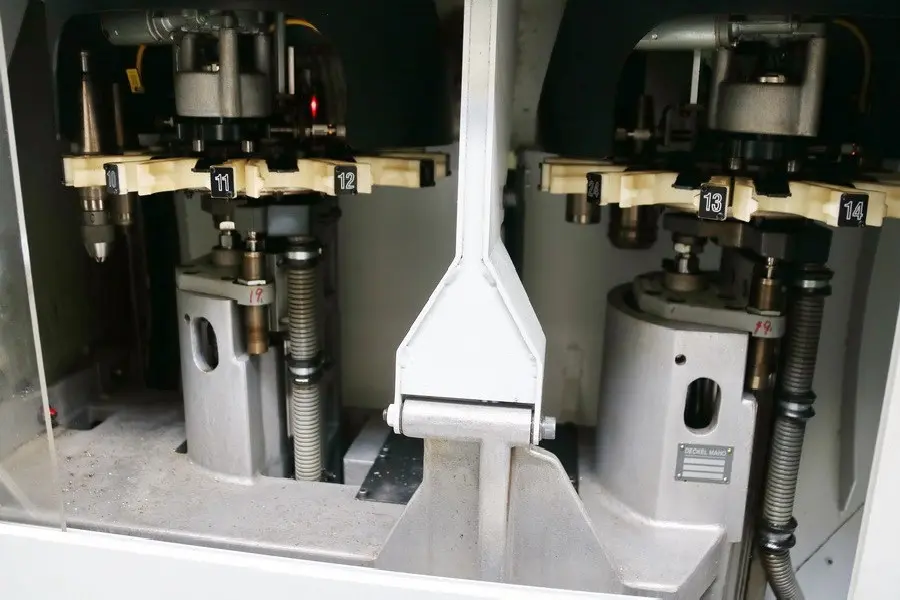

Number of tool slots | 24 pos. |
Price | Auf Anfrage |
Resolution | 0,001 mm |
