| Machine type: | Machining Center - Universal |
| Manufacturer: | DECKEL MAHO |
| Year of manifacturing: | 2005 |

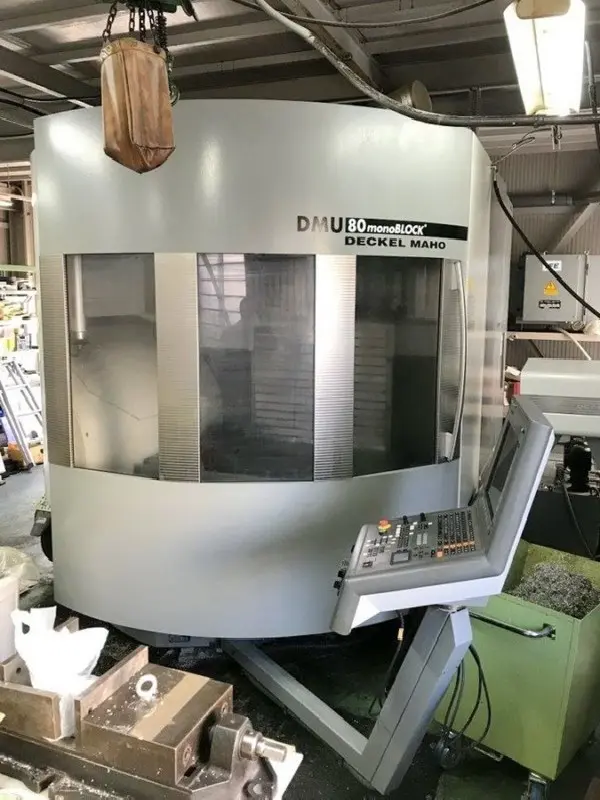

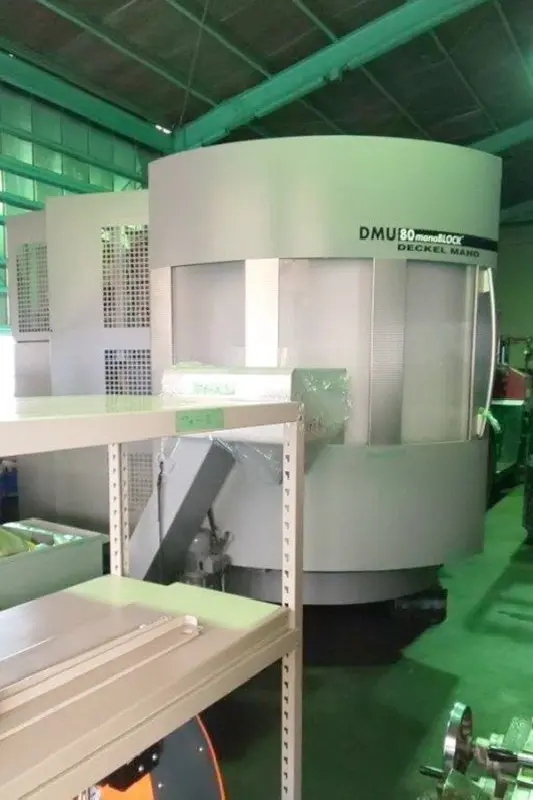

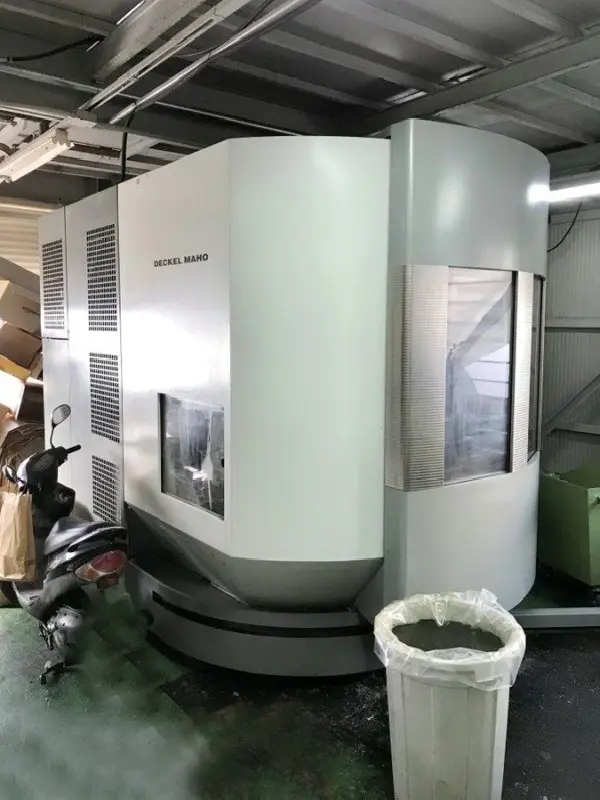

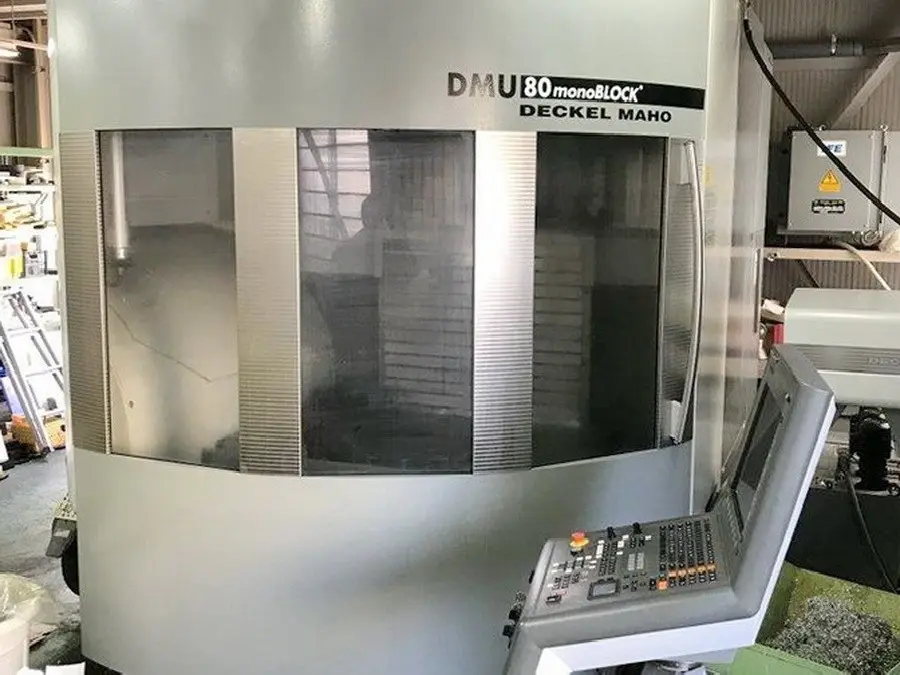

| Type: | DMU 80 monoBLOCK |
| Condition: | used |

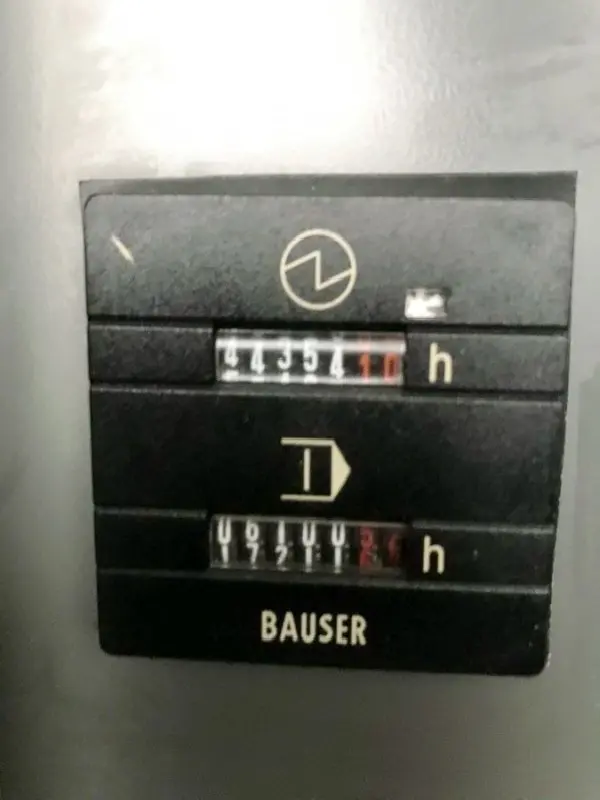

| Attended time: | h |
| Number of reference: | p198538 |
| Make | DECKEL MAHO |
| Type of machine | DMU 80 monoBLOCK |
| Year of manufacture | 2005 |

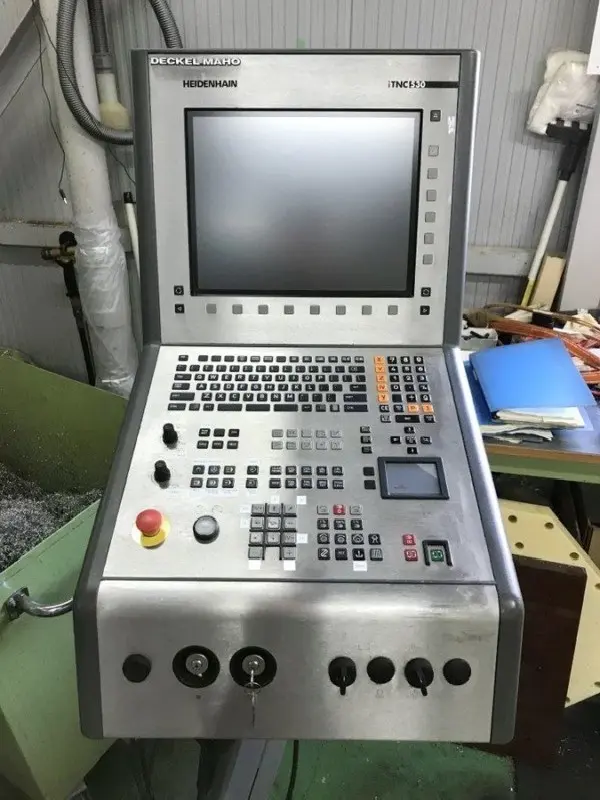

| Control system | iTNC 530 Heidenhain |
| Tool holder | HSK-A 63 |
| Torque on the spindle | 121 / 82 Nm |
| x-travel | 880 mm |
| y-travel | 630 mm |
| z-travel | 630 mm |

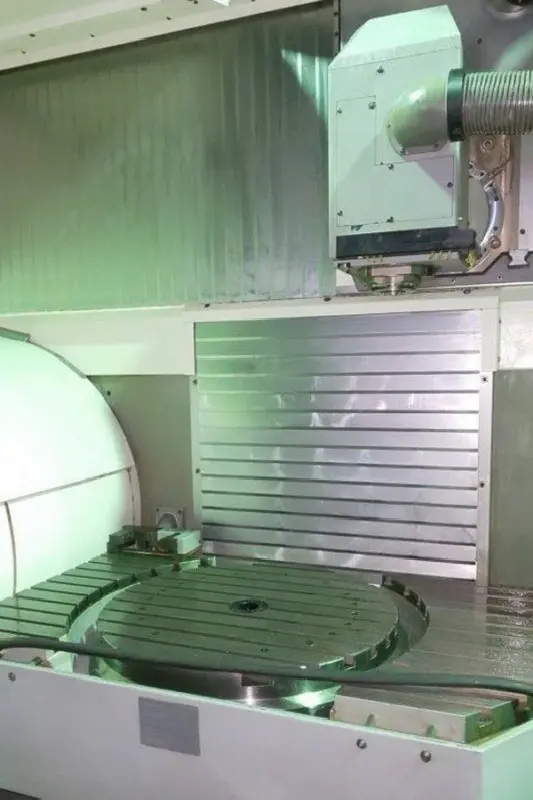

| Table area | Ø 700 / 1.250 x 700 mm |
| max. Table load | 650 kg |
| Total power requirement | 48 kVA |
| Rapid feed | 30 m/min |
| Max. workpiece height | 550 mm |
| Control | CNC |
| Machine's weight | 14,0 t |

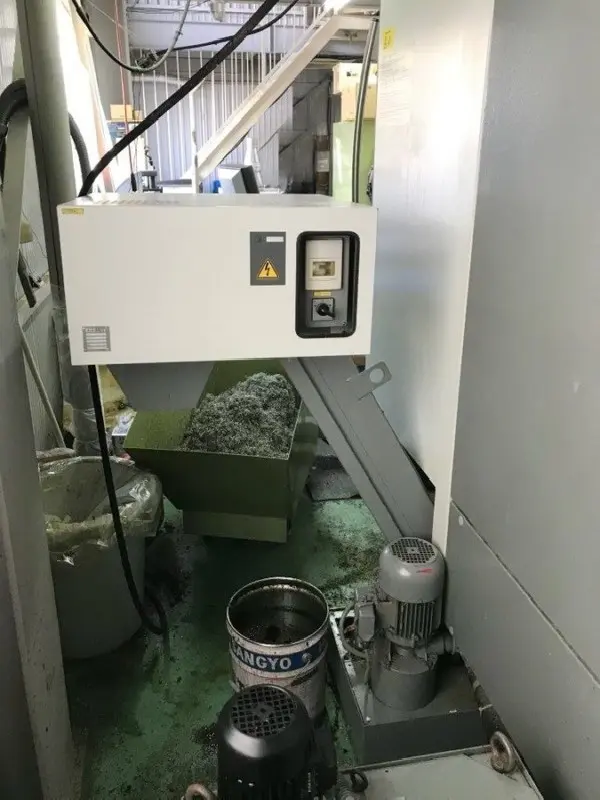

| Chip removal device | ![]() |

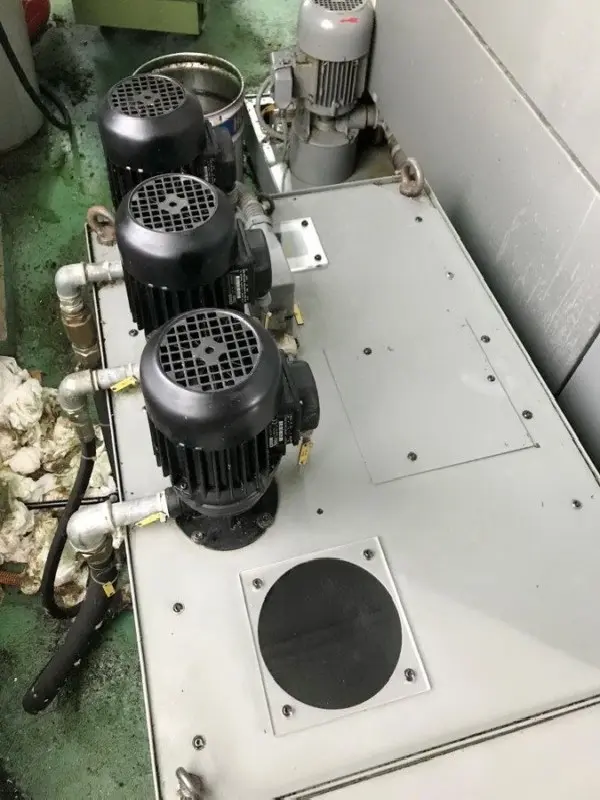

| Cooling system | ![]() |
| Tool diameter | 80 mm |
| Tool weight | 8,0 kg |
| Overall dimensions | 6,5 x 5,0 x 2,9 m |
| Feed speed | max. 30.000 mm/min |
| Handwheel, electronic | ![]() |
| Workpiece diameter max. | 850 mm |
| Main spindle speed range | max. 18.000 min/-1 |
| Acceleration | 5 m/s² |
| Main spindle power | 28 / 19 kW |
| Documents | ![]() |
| 3D Measuring probe | Heidenhain TS 641 |
| Delivery period | nach Absprache |
| Tool position determination | Blum |
| tilt +/- | B: +30° / -120 ° |
| Number of tool slots | 32 pos. |
| Price | Auf Anfrage |
![]() | |
![]() | |
| CNC - Bearbeitungszentrum Universal |
