| Machine type: | Machining Center - Universal |
| Manufacturer: | DECKEL MAHO |
| Year of manifacturing: | 2008 |
| Type: | DMU 80 P duoBLOCK |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p215548 |

| Make | DECKEL MAHO |
| Type of machine | DMU 80 P duoBLOCK |
| Year of manufacture | 2008 |

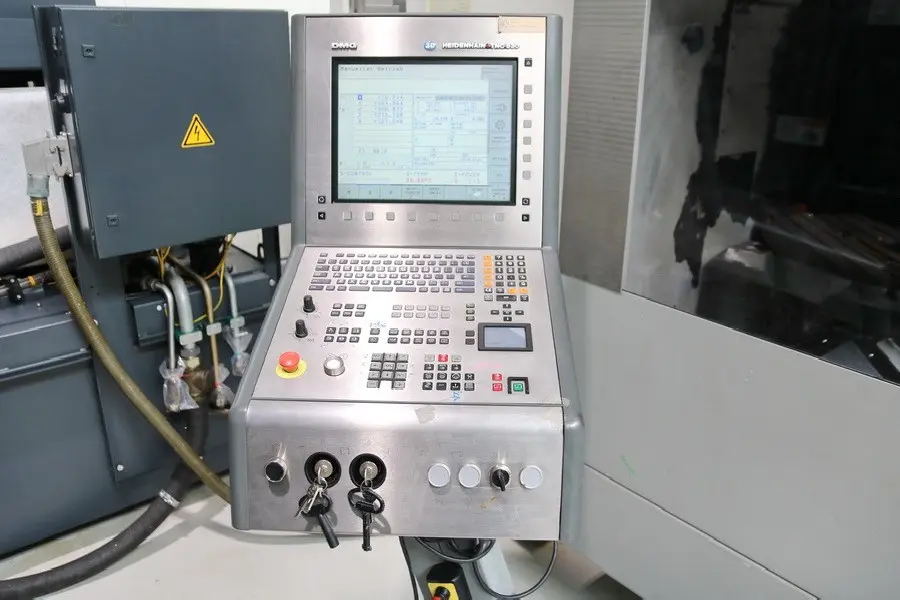

| Control system | iTNC 530 Heidenhain |
| Tool holder | HSK-A63 |
| Torque on the spindle | 121 / 82 Nm |
| x-travel | 800 mm |
| y-travel | 800 mm |
| z-travel | 800 mm |
| Speed range | 18.000 min/-1 |
| max. Table load | 1.400 kg |
| Total power requirement | 64 kVA |
| Rapid feed | C: 30 m/min |
| Control | CNC |
| Machine's weight | 14,0 t |
| Chip removal device | ![]() |
| Tool holding fixture | 11x |
| Cooling system | ![]() |

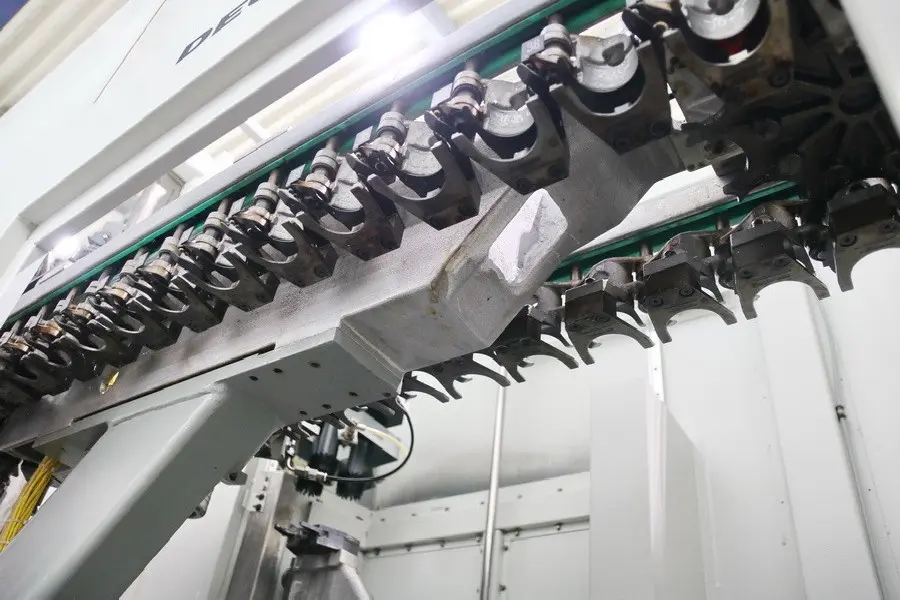

| Tool magazine | ![]() |
| Overall dimensions | 6,5 x 6,5 x 3,5 m |
| Feed speed | max. 60.000 mm/min |
| Table diameter | 900 x 700 mm |

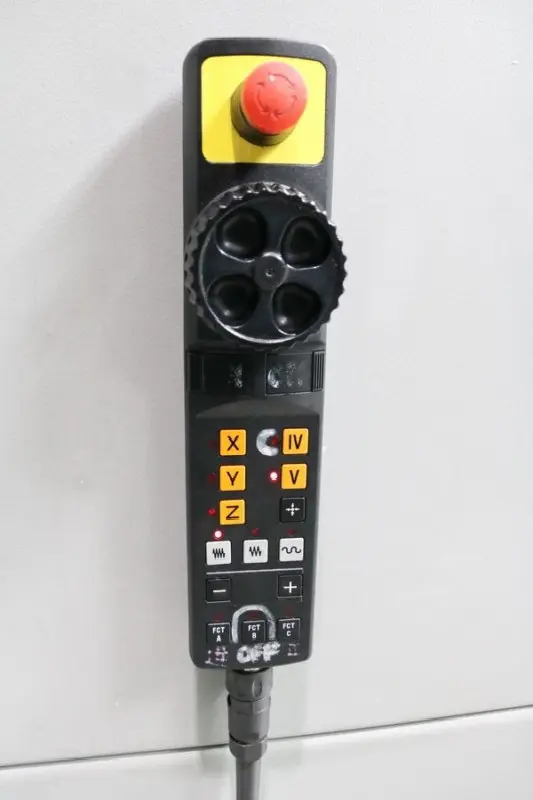

| Handwheel, electronic | ![]() |
| Internal coolant supply | 40 bar |
| High-pressure coolant | ![]() |
| Main spindle power | 28 / 19 kW |
| Documents | ![]() |
| 3D Measuring probe | Heidenhain TS 640 |
| NC – rotary table | ![]() |
| Delivery period | nach Absprache |
| tilt +/- | B: 0 - 190 ° |
| Number of tool slots | 40 pos. |
| Price | Auf Anfrage |
![]() | |
![]() | |
| CNC-Bearbeitungszentrum Universal |
