| Machine type: | CNC Turning Machine |
| Manufacturer: | DOOSAN DAEWOO |
| Year of manifacturing: | 1998 |
| Type: | LYNX 200 LC |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p192939 |
| Make | DOOSAN DAEWOO |
| Type of machine | LYNX 200 LC |
| Year of manufacture | 1998 |
| Control system | Fanuc 21-T |
| distance between centres | 335 mm |
| Total power requirement | 15 kW |
| Cutting diameter | 460 mm |
| Control | CNC |
| Machine's weight | 3,2 t |
| Spindle nose | A2-6 |
| Shank diameter | 20 (vierkant) mm |
| Turning length | 300 mm |
| Pipe diameter | 50 mm |

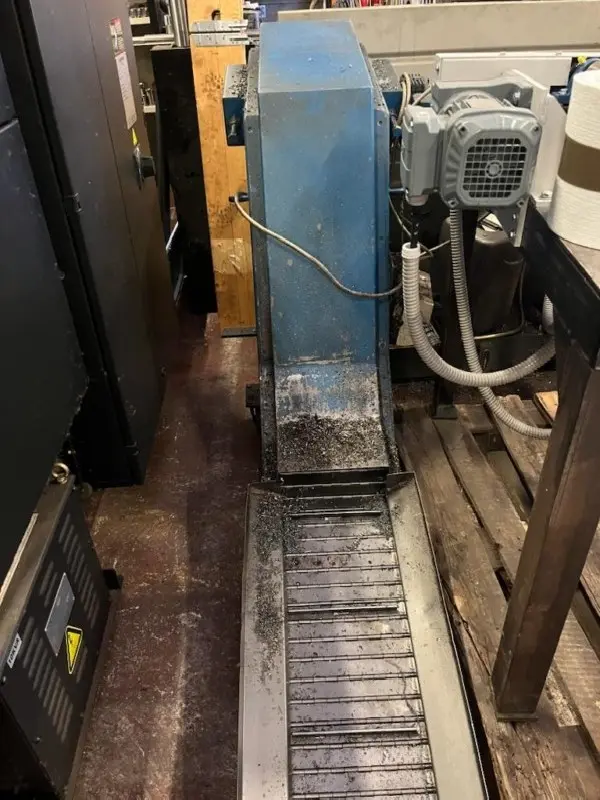

| Chip removal device |  |
| Cooling system | |
| Main spindle | |
| Overall dimensions | 1,9 x 1,5 x 1.5 m |
| Machining diameter over slide | 280 mm |
| Machining diameter over bed | 460 mm |
| Chuck size | 200 mm |
| Diameter of spindle bore | 51 mm |
| Traverse X-axis | 160 mm |
| Traverse Z-axis | 330 mm |
| Rapid X - axis | 12 m/min |
| Rapid Z - axis | 15 m/min |
| ISO spindle taper | 1/20 |
| Main spindle speed range | 42 - 4.000 U/min |
| Coolant tank | 87 l |
| Main spindle power | 7.5 kW |
| Spindle opening | 65 mm |
| Delivery period | sofort |
| Number of tool slots of top revolver | 10 . |
| Price | Auf Anfrage |
