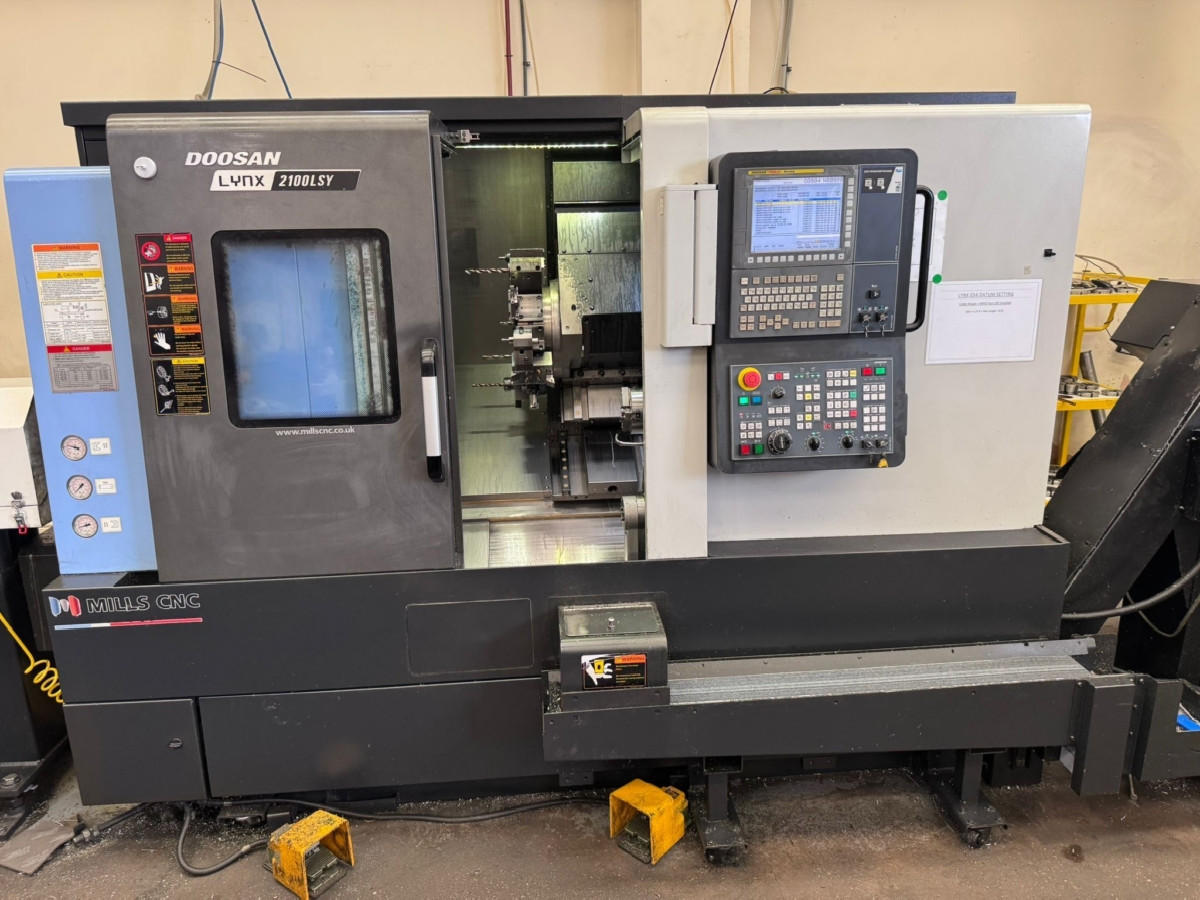

| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | DOOSAN |
| Year of manifacturing: | 2018 |
| Type: | Lynx 2100 LSYB |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p227651 |
| Make | DOOSAN |
| Type of machine | Lynx 2100 LSYB |
| Year of manufacture | 2018 |

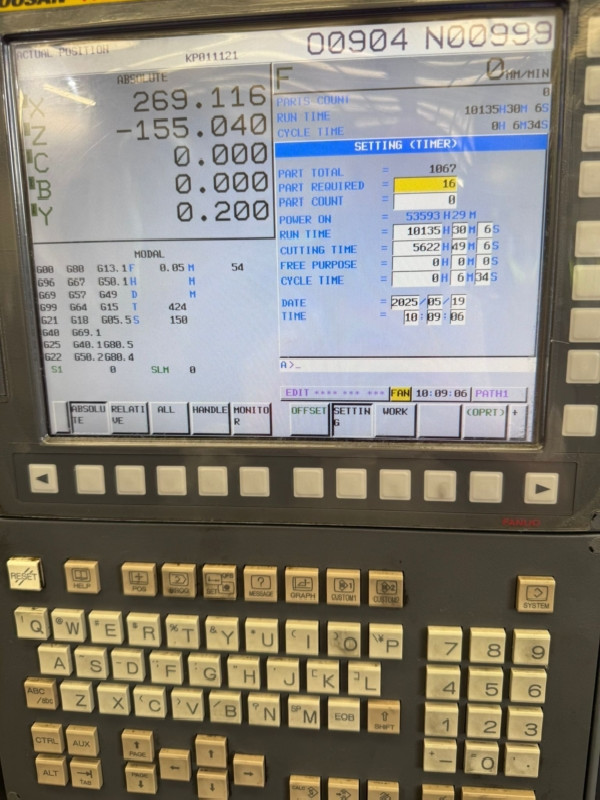

| Control system | FANUC 0iTF |
| Swing over bed | 600 mm |
| b-axis | 560 mm |
| Speed range | 6000 min/-1 |
| Total power requirement | 33,66 kVA |
| Rapid feed | X/Z/B: 30/36/30 / Y: 10 m/min |
| Cutting diameter | 300 mm |
| Control | CNC |
| Machine's weight | 4,2 t |
| Spindle nose | ASA A2-6 |
| Turning length | 510 mm |
| Overall dimensions | 2,9 x 1,7 x 1,9 m |
| Chuck size | 8 " |
| X-travel | 205 mm |
| Z-travel | 560 mm |
| Bar diameter | 65 mm |
| Main spindle speed range | 4500 min/-1 |
| C-axis | 0,001 ° |
| Main spindle power | 15 / 11 kW |
| Power-driven tool power | 3,7 kW |
| Spindle opening | 43 mm |
| Delivery period | kurzfristig-nach Vereinbarung |
| Y-axis | 105 (+/- 52,5) mm |
| Number of tool slots | 12 pos. |
| Price | Auf Anfrage |
