| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | DOOSAN |
| Year of manifacturing: | 2018 |
| Type: | Puma 2100 SY II |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p227652 |
| Make | DOOSAN |
| Type of machine | Puma 2100 SY II |
| Year of manufacture | 2018 |

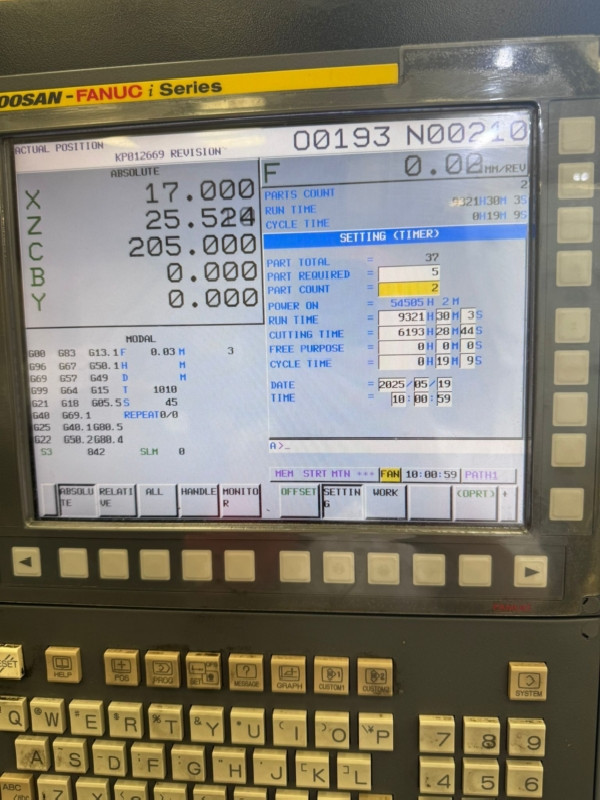

| Control system | Fanuc I-Series |
| Swing over bed | 780 mm |
| b-axis | 590 mm |
| Speed range | 6000 min/-1 |
| Total power requirement | 50,44 kVA |
| Rapid feed | X/Z/B: 30 / Y: 10 m/min |
| Cutting diameter | 406 mm |
| Control | CNC |
| Machine's weight | 5,9 t |
| Spindle nose | ASA A2-6 |
| Shank diameter | 25 mm |
| Turning length | 520 mm |
| Overall dimensions | 5,0 x 2,5 x 2,2 m |
| Chuck size | 255 mm |
| Drill diameter | 40 mm |
| X-travel | 260 mm |
| Z-travel | 590 mm |
| Bar diameter | 65 mm |
| Main spindle speed range | 5000 min/-1 |
| Spindle bearing diameter | 90 mm |
| C-axis | 0,001 ° |
| Main spindle power | 22 kW |
| Power-driven tool power | 5,5 kW |
| Spindle opening | 62 mm |
| Delivery period | kurzfristig-nach Vereinbarung |
| Y-axis | 105 mm |
| Number of tool slots | 12 pos. |
| Price | Auf Anfrage |
