| Machine type: | Heavy Duty Lathe |
| Manufacturer: | DOOSAN |
| Year of manifacturing: | 2008 |
| Type: | PUMA 800 L |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p229043 |
| Make | DOOSAN |
| Type of machine | PUMA 800 L |
| Year of manufacture | 2008 |

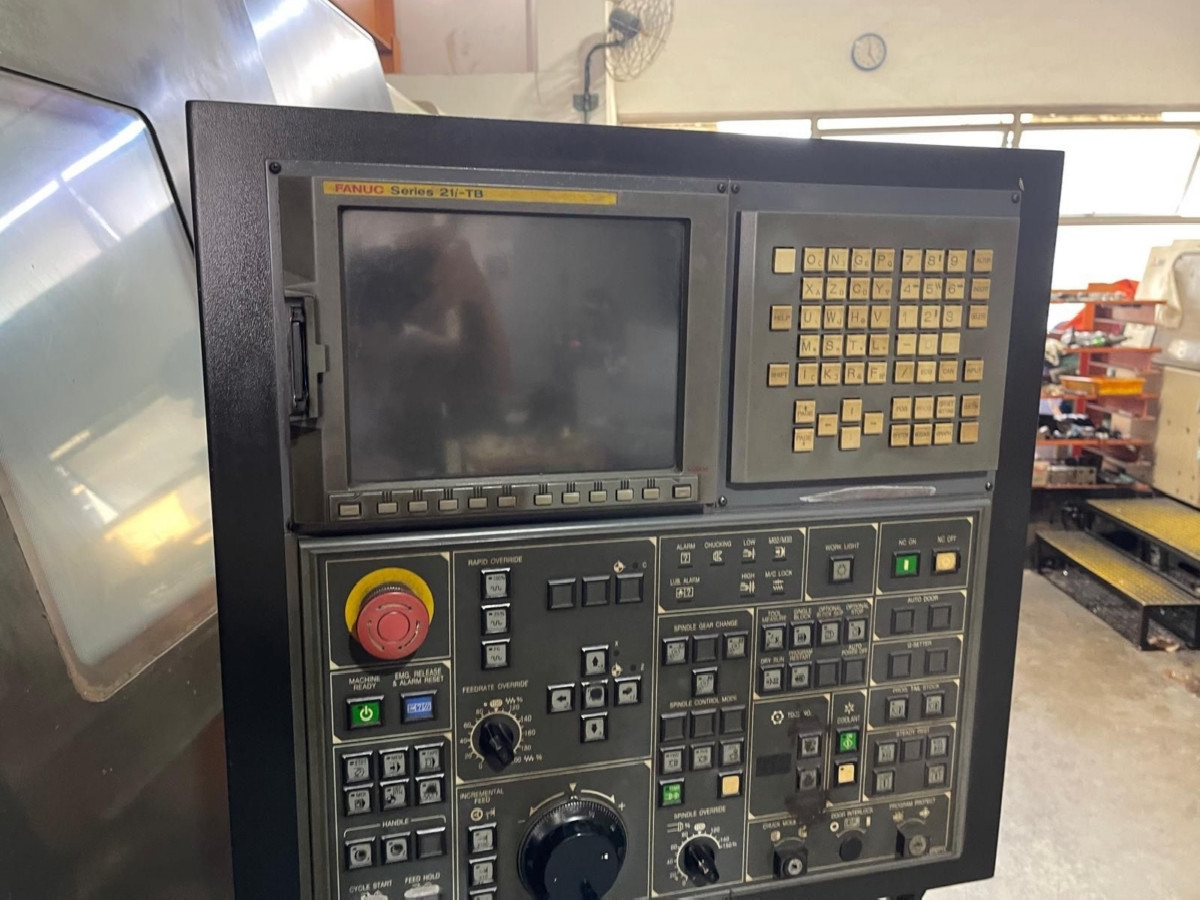

| Control system | FANUC |
| spindle motor | 55/75 kW |
| spindel speed | 750 1/min |
| Rapid longitudinal/cross feed | 12 / 10 m/min |
| Total power requirement | ca 65 kW |
| Cutting diameter | 800 mm |
| Control | CNC |
| Machine's weight | 22 t |
| Turning length | 3200 mm |
| Tailstock |  |
| Chucking capacity | 1030 mm |
| Overall dimensions | 7,3 x 2,7 x 2,6 m |
| Tailstock sleeve diameter | 160 mm |
| Tailstock sleeve travel | 150 mm |
| Machining diameter over bed | 900 mm |
| Turning diameter over saddle | 800 mm |
| Chuck size | 800 mm |
| Traverse X-axis | 470 mm |
| Traverse Z-axis | 3235 mm |
| ISO spindle taper | A1-20 |
| Tailstock offset | 3125 mm |
| Spindle opening | 312,5 mm |
| Delivery period | sofort oder nach Absprache |
| Price | Auf Anfrage |
