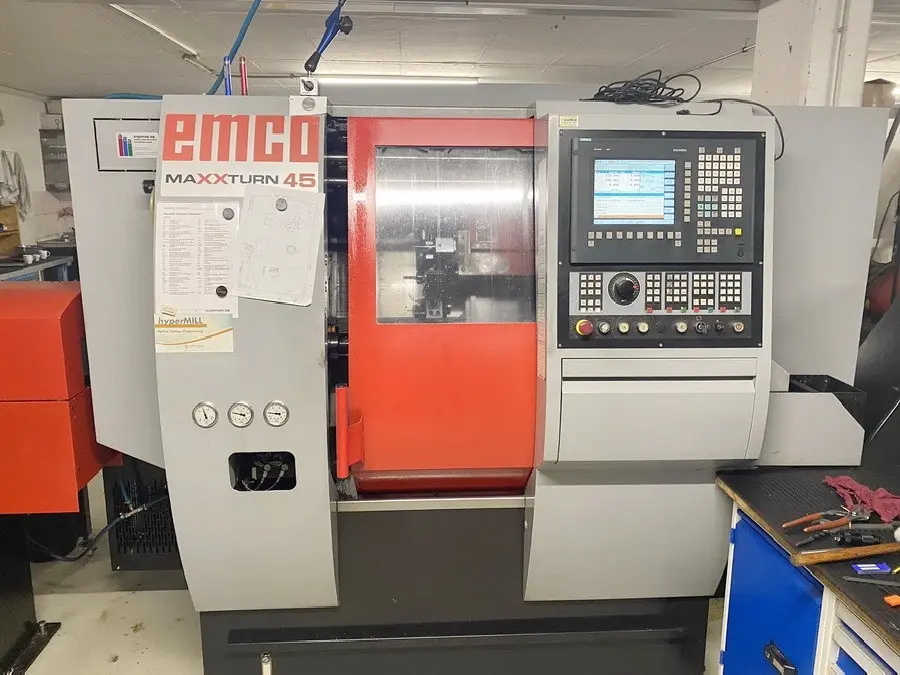

| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | EMCO |
| Year of manifacturing: | 2008 |
| Type: | MaxxTurn 45 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p209680 |
| Make | EMCO |
| Type of machine | MaxxTurn 45 |
| Year of manufacture | 2008 |

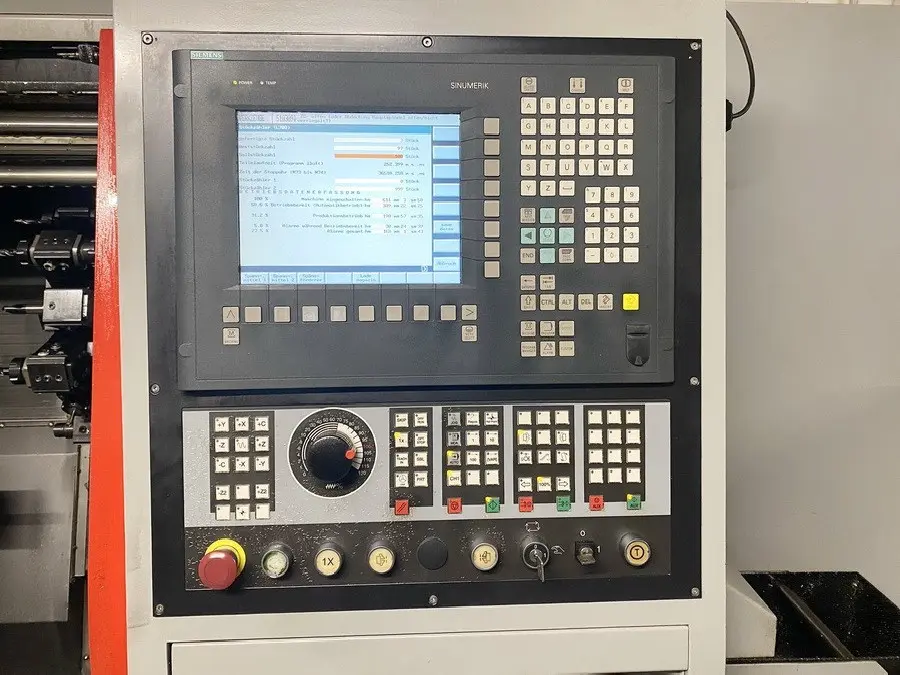

| Control system | Sinumerik 840D Siemens |

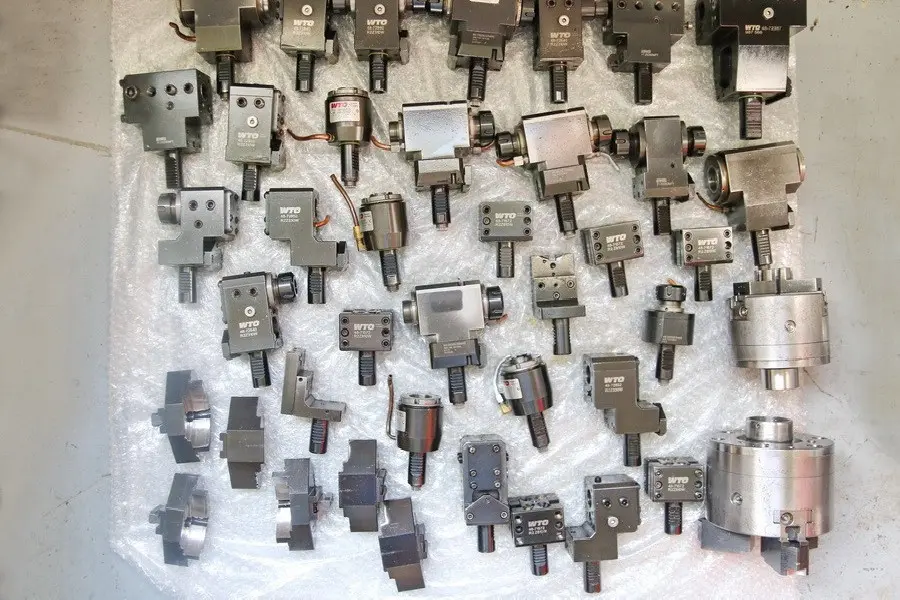

| Tool holder | VDI 25 |
| Torque on the spindle | 16 Nm |
| spindle head | KK4 DIN 55026 |
| Swing over bed | 430 mm |
| Servo force | X: 4.000 / Z: 6.000 N |
| Total power requirement | 25 kVA |
| Rapid feed | X: 24 / Y: 10 / Z: 30 m/min |
| Cutting diameter | max. 300 mm |
| Control | CNC |
| Machine's weight | 4,0 t |
| Chip removal device |  |
| Cooling system | |
| Collet chuck | |

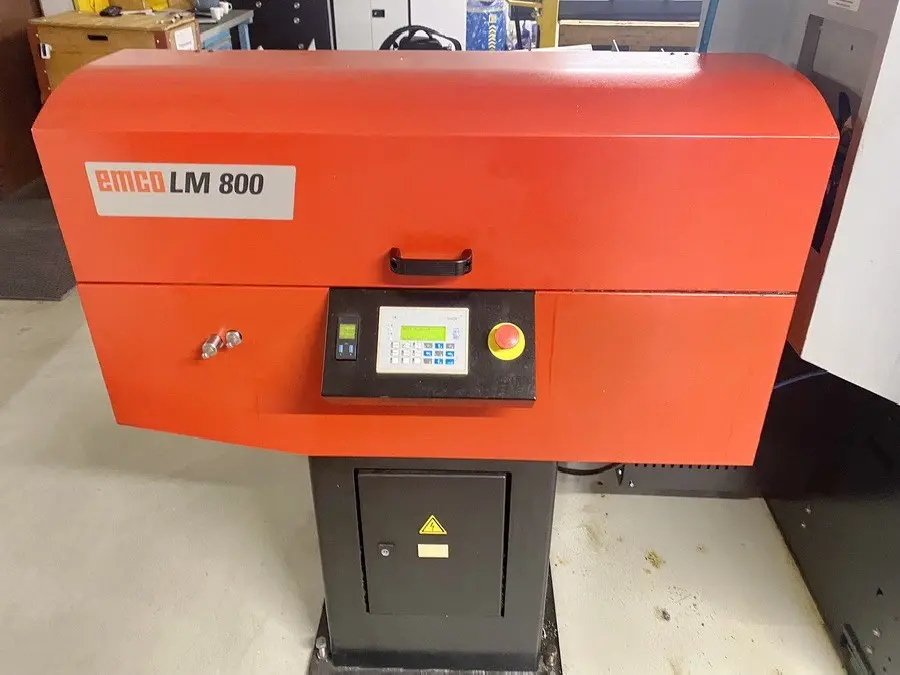

| Bar feeder | Emco LM 800 |
| Overall dimensions | 5,5 x 2,5 x 2,5 m |
| Chuck size | 130 mm |
| Spindle snout opening diameter | 70 mm |
| Tool turret | |
| X-travel | 160 mm |
| Z-travel | 510 mm |
| Bar diameter | max. 45 mm |
| Slots for power-driven tools | |
| Three-jaw chuck | 2x Röhm |
| Main spindle speed range | 0 - 6.300 min/-1 |
| C-axis | 0,001° |
| Acceleration | X: 6 / Z: 8 m/s² |
| Main spindle power | 8 / 13 kW |
| Delivery period | nach Absprache |
| Y-axis | |
| Number of tool slots | 12 pos. |
| Price | Auf Anfrage |
