CONTROLS
PC controller BECKHOFF
PRESS DESIGN
drive system: servohydraulic
frame design: H-frame, tie rod
quick die change system: yes
feedstock transport direction: left to right
SLIDE
total force (nominal): 1100 to
stroke: 130 mm
stroke rate (max.): 60 /min
COUNTER RAM
nominal force: 330 to
stroke: 40 mm
V-RING
nominal force: 500 to
stroke: 40 mm
TOOL DIMENSIONS
lower table (left-right): 960 mm
lower table (front-back): 960 mm
upper table (left-right): 960 mm
upper table (front-back): 960 mm
shut height max.: 470 mm

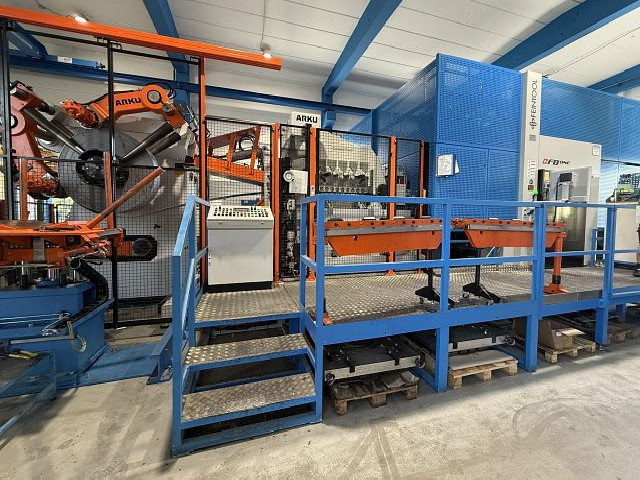

OVERALL SPECIFICATIONS (COIL LINES)
sheet width max.: 500 mm
sheet thickness max.: 16 mm
coil weight max.: 8 to
feedstock transport direction: left to right
COIL CHAIR
coil weight max.: 8 to
stroke: 700 mm
DECOILER
coil weight max.: 8 to
max. diameter of coil: 1800 mm
mandrel expansion range from: 470 mm
mandrel expansion range up to: 530 mm
LEVELLER UNIT
sheet width max.: 500 mm
sheet width (min): 80 mm
sheet thickness max.: 16 mm
sheet thickness min.: 1.5 mm
material cross section max. (450 N/mm2): 3510 mm²
integrated feed function: yes
intermediate clamp release: yes
cleaning device for leveller rollers: yes
CROP SHEAR
cutting force: 800 kN
ELECTRICAL SPECIFICATIONS
mains power supply: 350 kVA
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
total weight approx.: 75350 kg
Absolutely mint condition: just 3'300 running hours, 700'000 strokes

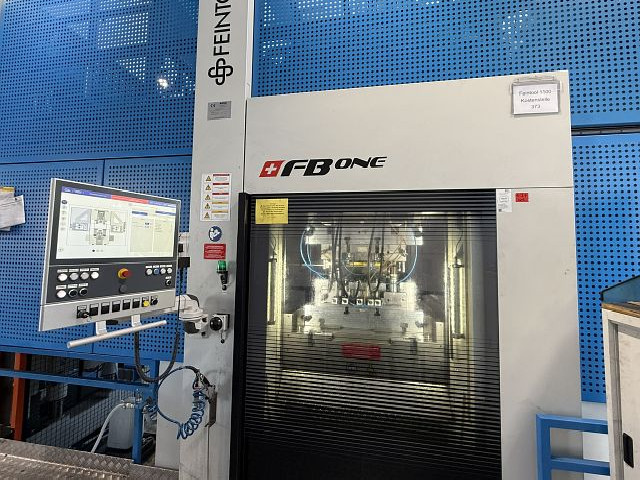

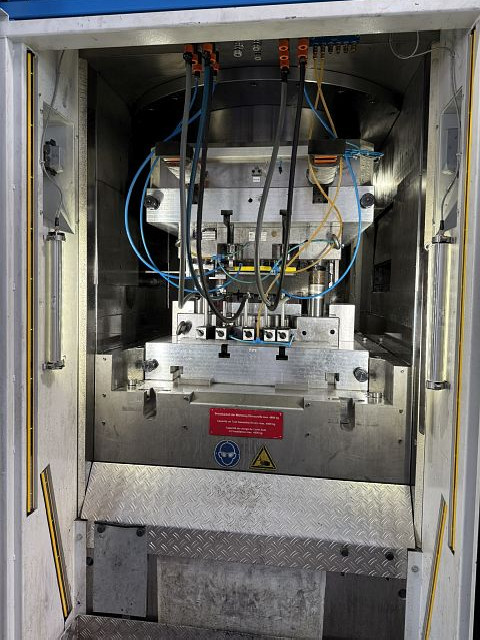

Special equipment fineblanking press:
+ block hydraulics for 4th and 5th force
+ mechanical reamers (without tool-bound sliders)
+ additional operating mode "cutting without counter-holder and V-ring"
+ additional operating mode "manual insertion mode"
+ 2 blast air circuits with 6 connections each
+ Additional tool monitoring
+ RAZIOL roller belt lubrication system with 2 reservoirs
+ Interface for monitoring the cooling system
- the scrap conveyor (visible on photos) is not part of the scope

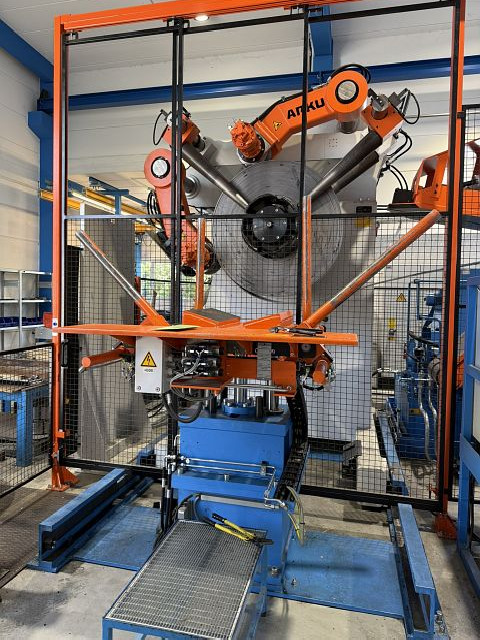

ARKU single reel with loading chair:
+ 2 pressure arms for high-strength coil material
+ Coil guidance via conical rollers
+ Automatic coil centre positioning

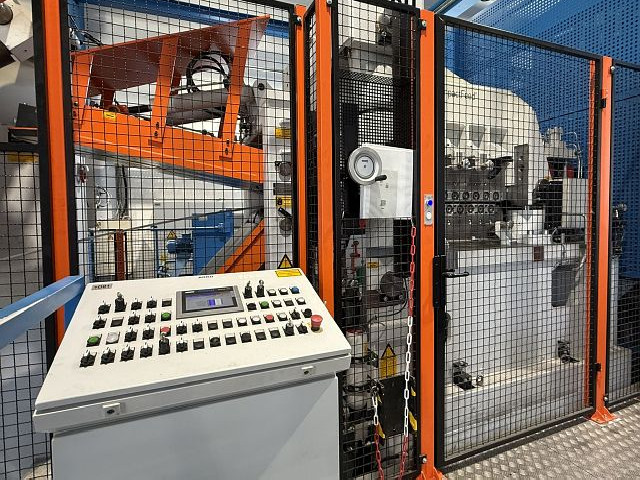

ARKU feed straightening machine:
max. straightening cross-section at 600 N/mm2: 3510 mm2
+ Synchronised drive of the straightening rollers
+ Hardened and ground straightening rollers
+ Servo-hydraulic leveller gap control
+ Straightening roller quick-change system
+ intermediate roller release
+ Measuring wheel for feed control
