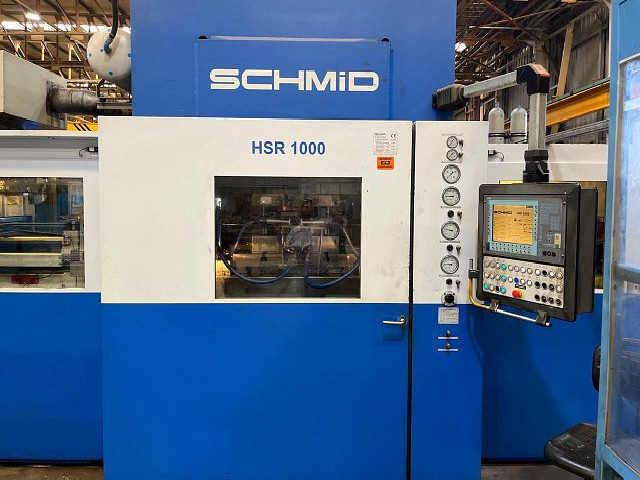

CONTROLS
SIEMENS S7 300
PRESS DESIGN
drive system: hydraulic
frame design: H-frame, monoblock
quick die change system: yes
feedstock transport direction: left to right
SLIDE
total force (nominal): 1000 to
stroke: 205 mm
SLIDE (HYDR. PRESS)
working velocity min.: 10 mm/s
working velocity max.: 30 mm/s
COUNTER RAM
nominal force: 160 to
V-RING
nominal force: 400 to
TOOL DIMENSIONS
lower table (left-right): 900 mm
lower table (front-back): 900 mm
OVERALL SPECIFICATIONS (COIL LINES)
sheet width max.: 520 mm
sheet thickness max.: 12 mm
coil weight max.: 6 to
feed velocity max.: 93 m/min
feedstock transport direction: left to right
LEVELLER UNIT
number of leveller rolls: 8
diameter of leveller rolls: 90 mm
diameter of feed rolls: 110 mm
STRIP-FEEDER
feeder type: grip feeder
sheet width max.: 520 mm
sheet thickness max.: 40 mm
nominal force: 18 kN
band support rolls: yes
CROP SHEAR
cutting force: 1050 kN
ELECTRICAL SPECIFICATIONS
total power consumption: 190 kW
DIMENSIONS / WEIGHTS
space requirements -left/right-: 16000 mm

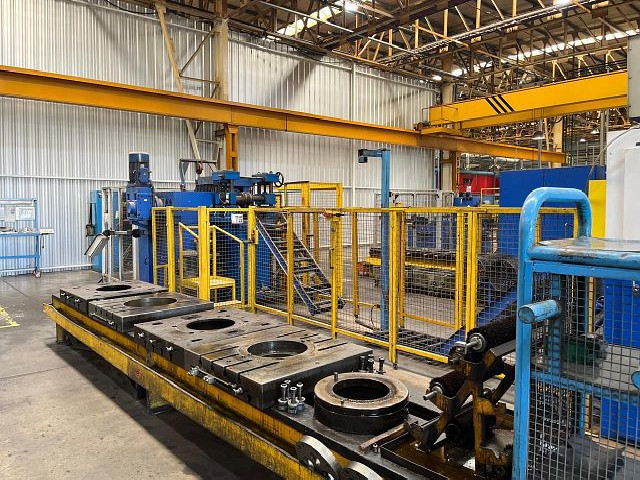

ATTACHMENTS -FINEBLANKING PRESS-
autom. tool clamping device: yes
closed cabin: yes
decoiler: yes
leveller unit: yes
waste cutter: yes
SIEMENS S7 300 controls
Control Panel SIEMENS Panel PC 477B
Switch on hours acc. to counter : 62'000 h
Total strokes acc. to counter: 3 Mio
including Coil line SCHMID HR 12
