Sold
| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | GILDEMEISTER- DMG |
| Year of manifacturing: | 2003 |
| Type: | CTX 620 Linear |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p221397 |
| Make | GILDEMEISTER- DMG |
| Type of machine | CTX 620 Linear |
| Year of manufacture | 2003 |
| Control system | Siemens 840 D powerline |
| spindel speed | 20 - 2500 1/min. |
| Total power requirement | 90 kVA |
| Swing over bed | 800 mm |
| Servo force | 1800 daN |
| Rapid feed | X60 / Z45 m/min |
| Cutting diameter | 600 mm |
| Sleeve travel | 150 mm |
| Control | CNC |
| Machine's weight | 12,8 t |
| Capacity | des Hauptmotors (100/40 % ED) 40/52 kW |
| Turning length | 2080 mm |

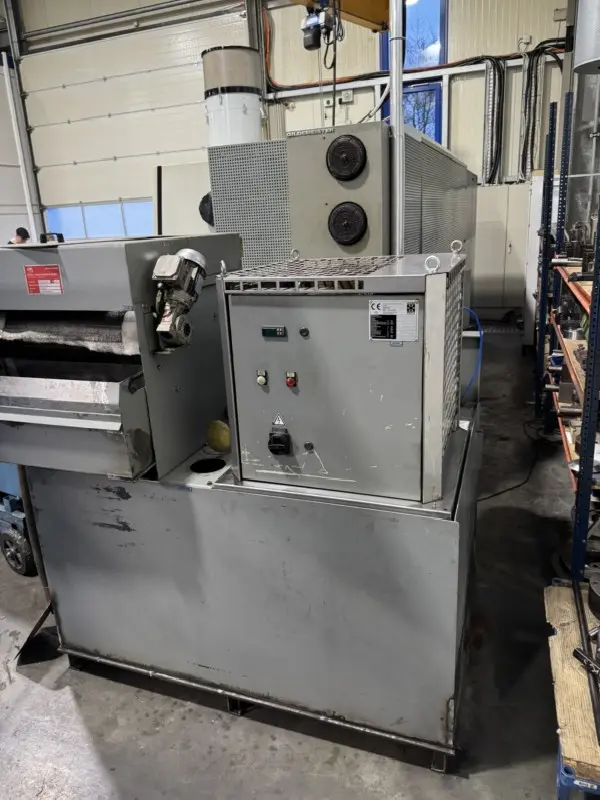

| Chip removal device |  |
| Tailstock | : |
| Power chuck | PINTO, Durchmesser 500 mm mit großen Sortiment an Spannbacken |
| Rest | SMW SLU-51-ZS, Spannbereich von 85 mm bis 350 mm Durchmesser |
| Overall dimensions | 6205 x 2100 x 2300 mm |
| Swing | über X-Schlitten 500 mm |
| Sleeve diameter | 120 mm |
| Bar diameter | 121 mm |
| C-axis | , Drehzahlbereich 0-100 1/min. |
| Power at 40% rpm. | Antriebsleistung (40 % ED) 15,7 kW |
| Sleeve clamp | MK 5 |
| Net weight | der Maschine mit Späneförderer 12800 kg |
| Spindle opening | 136 mm |
| Torque | 50 Nm |
| Delivery period | Sofort |

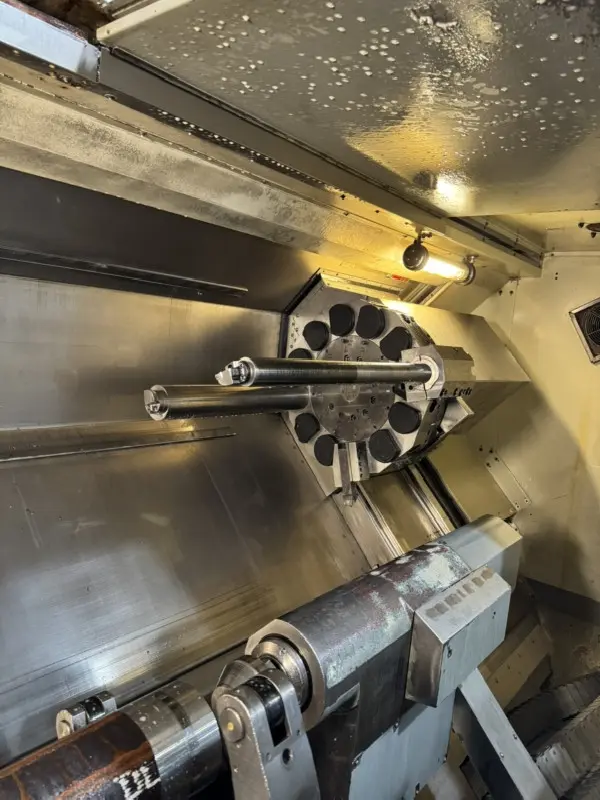

| Disk turret | 12-fach mit angetriebenen Werkzeugstationen |
| Price | Auf Anfrage |
