Sold

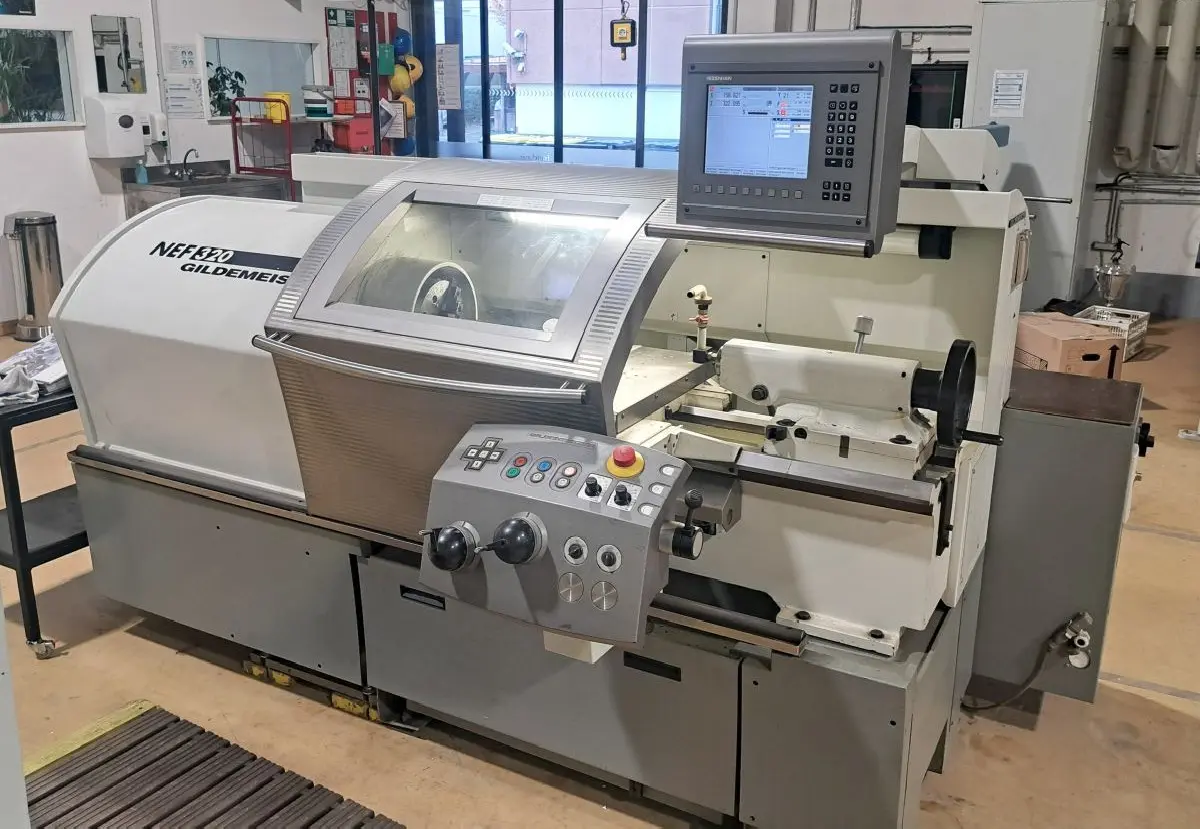

| Machine type: | Turning machine - cycle control |
| Manufacturer: | GILDEMEISTER |
| Year of manifacturing: | 2006 |
| Type: | NEF 320 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p232873 |
| Make | GILDEMEISTER |
| Type of machine | NEF 320 |
| Year of manufacture | 2006 |
| Control system | MANUALplus 4110 HEIDENHAIN |
| Center height | 165 mm |
| distance between centres | 750 mm |
| Bed width | 360 mm |
| Speed range | 10 - 4000 U/min |
| Rapid longitudinal/cross feed | 10 / 8 m/min |
| Total power requirement | 14 kVA |
| Spindle lock | KK 6 DIN 55027 |
| Sleeve travel | 120 mm |
| Control | CNC |
| Machine's weight | 2,0 t |
| Turning length | 750 mm |
| Cooling system |  |
| Overall dimensions | 2,45 x 2,10 x 1,85 m |
| Machining diameter over bed | 320 mm |
| Turning diameter over saddle | 150 mm |
| Sleeve diameter | 70 mm |
| Operating voltage | 400 V |
| Spindle drive power | 9 kW |
| Tailstock sleeve taper | MK 5 |
| Three-jaw chuck | 200 mm SCHUNK |
| Tool quick-change device | MULTIFIX Typ B |
| Spindle opening | 50,8 mm |
| Delivery period | sofort |
| Price | Auf Anfrage |
