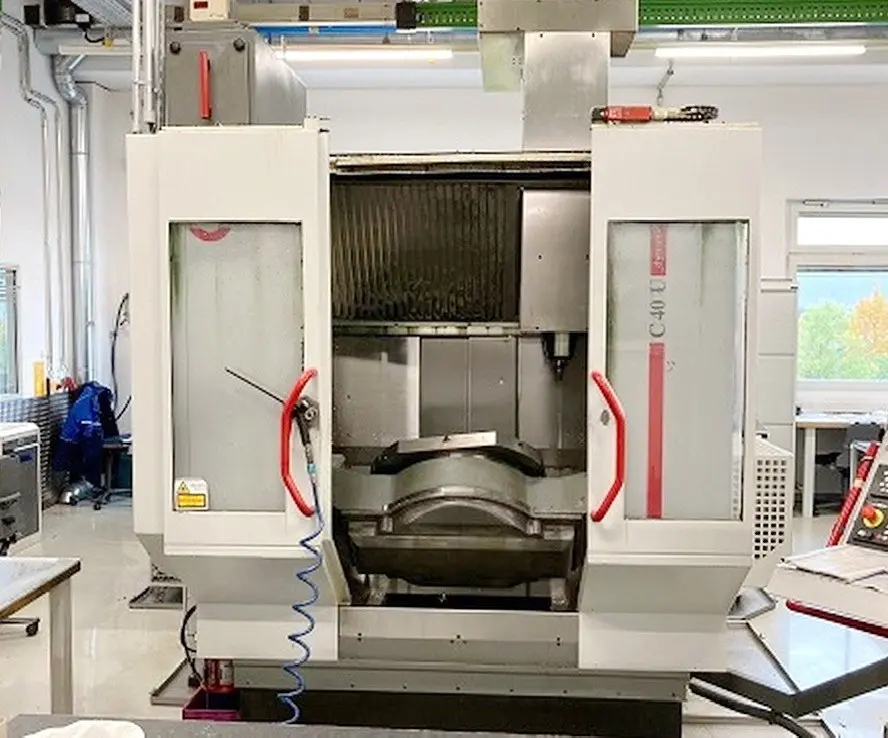

Machine type: | Machining Center - Universal |
Manufacturer: | HERMLE |
Year of manifacturing: | 2003 |
Type: | C 40 U |
Condition: | used |
Attended time: | h |
Number of reference: | p202558 |
Make | HERMLE |
Type of machine | C 40 U |
Year of manufacture | 2003 |
Control system | Sinumerik 840D Siemens |
Tool holder | HSK-A63 |
Torque on the spindle | 87 / 130 Nm |
x-travel | 850 mm |
y-travel | 700 mm |
z-travel | 500 mm |
Table area | Ø 800 mm |
max. Table load | 1.400 kg |
Servo force | 7 kN |
Total power requirement | 43 kVA |
Control | CNC |
Machine's weight | 10,5 t |
Chip removal device | |
Cooling system | |
Tool changer assembly | 126 pos. |
Tool diameter | 90 (125) mm |
Tool weight | 8,0 kg |
Overall dimensions | 8,5 x 5,5 x 3,0 m |
Tool length | 300 mm |
T-gutter | 14H7 |
Table rotation speed | A:25 / C:65 min/-1 |
Handwheel, electronic | |
Internal coolant supply | |
High-pressure coolant | |
Main spindle speed range | 110 - 16.000 min/-1 |
Enclosed cabin | |
Acceleration | 6 m/s² |
Paper belt filter | |
Turning angle +/- | A: +25° / -110 ° |
Main spindle power | 15 / 10 kW |
Documents | |
Delivery period | sofort |
Number of tool slots | 126 pos. |
Price | Auf Anfrage |
CNC - Bearbeitungszentrum Universal |
