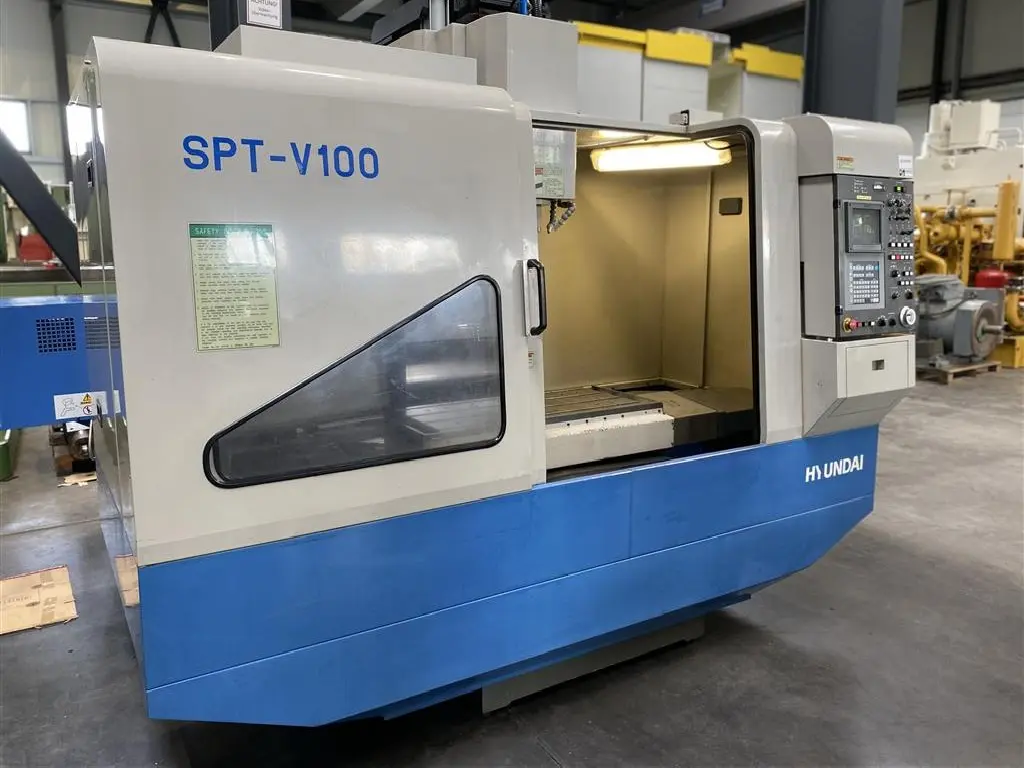

| Machine type: | CNC machining center |
| Manufacturer: | HYUNDAI |
| Year of manifacturing: | 08/2006 |
| Type: | SPT-V100 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p197971 |
| Make | Hyundai |
| Type of machine | SPT-V100 |
| Year of manufacture | 08/2006 |
| Control system | YASNAC-J50M |
| Tool holder | BT40 |
| spindle head | MAS / BT 40 |
| x-travel | 800 mm |
| y-travel | 460 mm |
| z-travel | 620 mm |
| max. Table load | 800 kg |
| Total power requirement | 30 (kVA) |
| Dimensions L x W x H | 2,9 x 2,5 x 2,85 m |
| Speed range | 30 - 10 000 U/min. |
| Control | CNC (YASNAC-J50M) |
| Machine's weight | 5,0 t |
| Tool magazine | 24 |

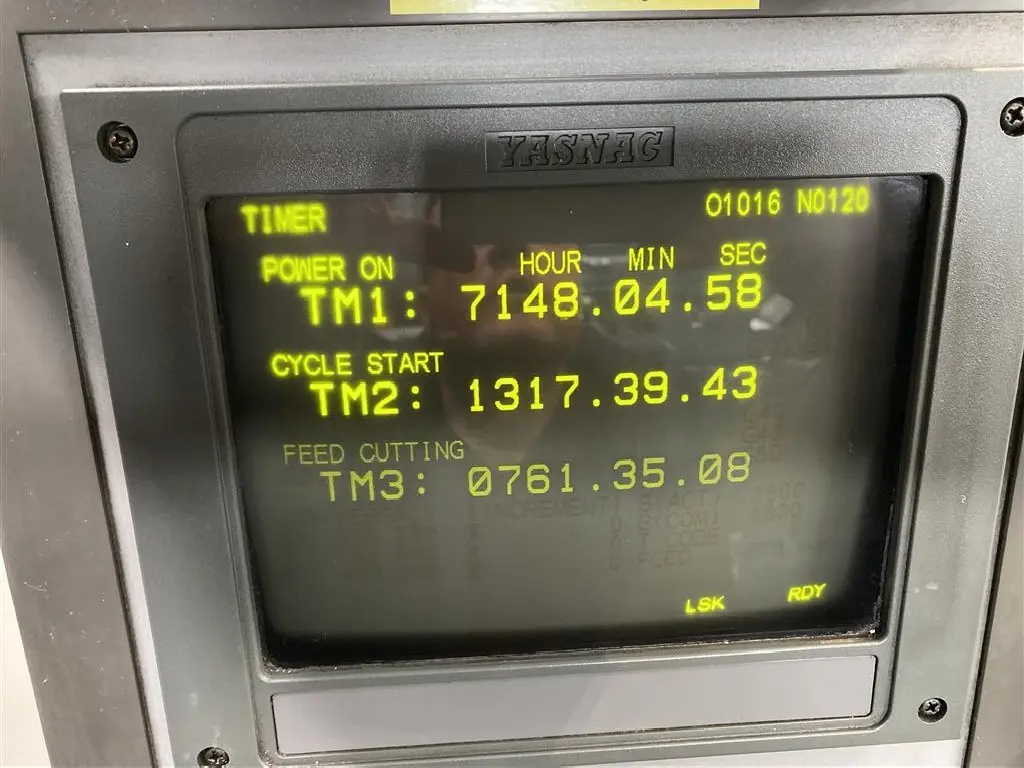

| Switch-on time | 7148 h |
| Distance (spindle nose/table) | 150 mm |
| Thread cutting | bis M 36 |
| Feed speed (stepless) | 8 m/min. |
| Internal coolant supply |  |
| Compressed air connection | ja bar |
| Price | |
