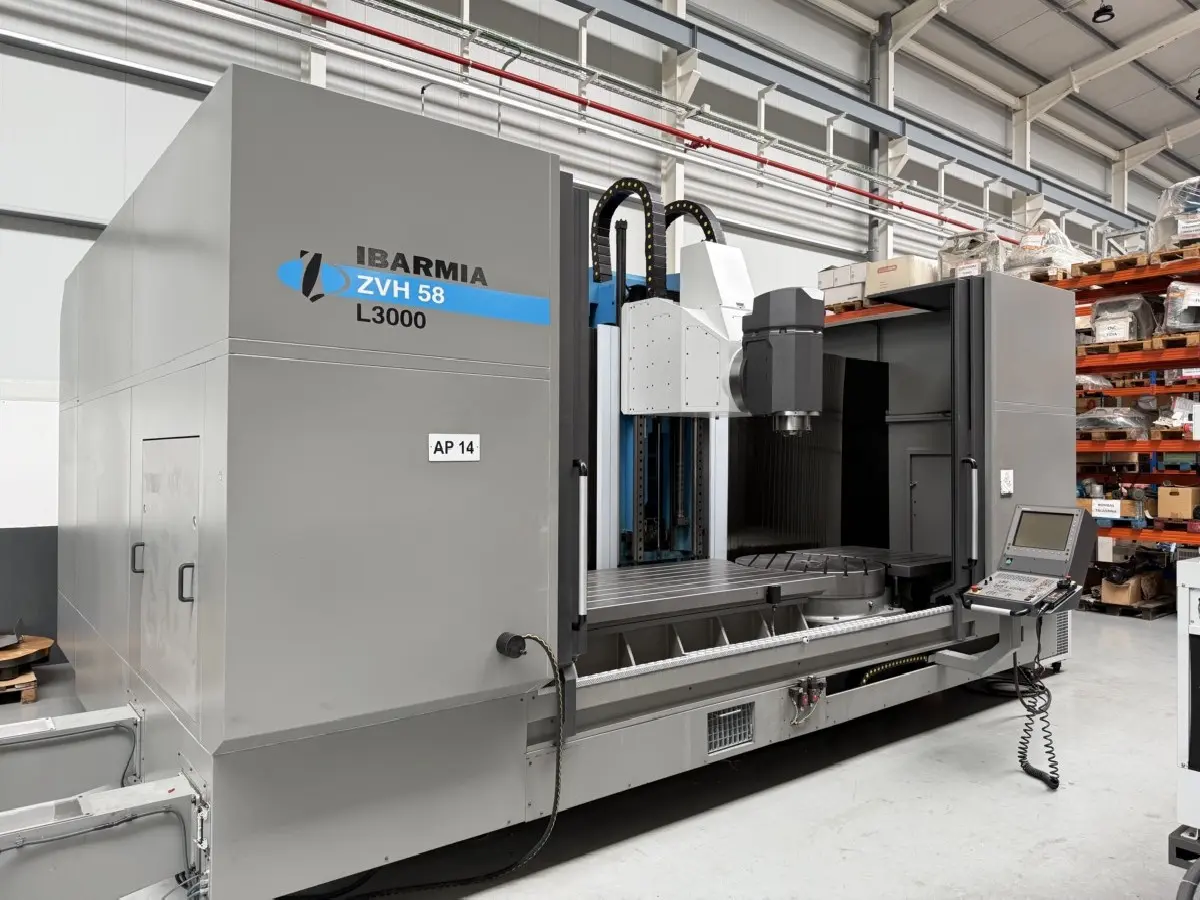

| Machine type: | Machining Center - Universal |
| Manufacturer: | IBARMIA |
| Year of manifacturing: | 2004 |
| Type: | ZVH 58 / L3000 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p228459 |
| Make | IBARMIA |
| Type of machine | ZVH 58 / L3000 |
| Year of manufacture | 2004 |
| Control system | Heidenhain iTNC-530 |
| Tool holder | ISO-50 DIN 69871-AD |
| spindle motor | 28,5 kW |
| Torque on the spindle | 240 Nm |
| spindel speed | 9.000 U/min/rpm |
| x-travel | 3.000 mm |
| y-travel | 1.000 mm |
| z-travel | 860 mm |
| max. Table load | 4.200 Kg |
| b-axis | +-105 ° |
| Total power requirement | 65 kW |
| Cutting diameter | 1.400 mm |
| Control | CNC |
| Machine's weight | 24,8 t |
| Chip removal device | Ink. |
| Tool weight | 20 |
| Overall dimensions | 8.056 x 5.496 x 3.790 mm |
| Table dimensions | 3.600 x 1.050 mm |
| T-gutter | 7 x 18 |
| Spindle edge/table distance | 25-366 mm |
| Rotary table | Durchm. 1.000 mm |
| Rapid feed x/y/z | 30.000 mm/min |
| Tool changer assembly | AITEK, 40 fach |
| C-axis | +-360 0 |
| Delivery period | Sofort |
| Handwheel | Ink. |
| Internal coolant supply | 20 bar |
| Price | Auf Anfrage |
