| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | INDEX |
| Year of manifacturing: | 2005 |
| Type: | C 65 SpeedLine (084) |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p161337 |
| Make | INDEX |
| Type of machine | C 65 SpeedLine (084) |
| Year of manufacture | 2005 |

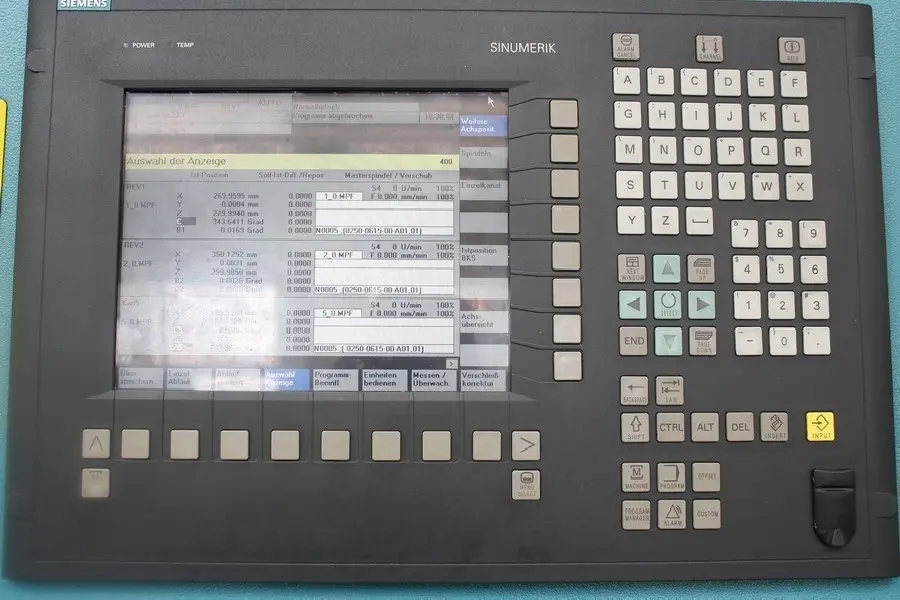

| Control system | Siemens 840 D PowerLine |
| Tool holder | VDI 25 x 48 DIN 69880 |
| Torque on the spindle | 16 Nm |
| spindle head | ISO 702/1 A5 |
| x-travel | 1/2/3: 110 mm |
| z-travel | 1/2/3: 360 mm |
| Speed range | 5.000 min/-1 |
| b-axis | 2x +/-1 ° |
| Total power requirement | 53 kVA |
| Cutting diameter | 140 mm |
| Control | CNC |
| Machine's weight | 6,5 t |
| Number of turret seats | 3 pos. |
| Turning length | 600 mm |
| Chip removal device |  |

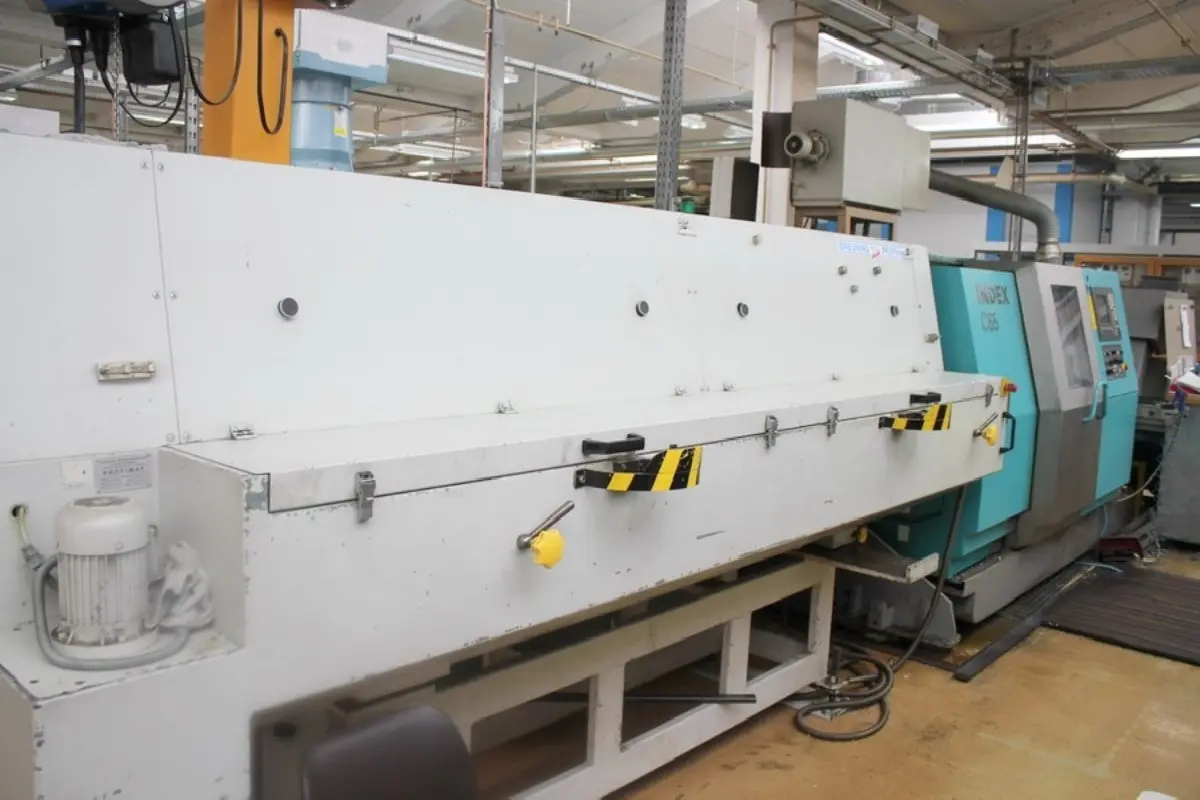

| Bar feeder | IRCO Profimat |
| Overall dimensions | 8,0 x 3,5 x 2,5 m |
| Chuck size | 140 - 160 mm |
| Tool turret | 3x |
| Counter spindle | |
| Bar diameter | 65 mm |
| Tool drive power | 3x 12 pos. |
| Spindle bearing diameter | 110 mm |
| Parts trap | |
| C-axis | 2x 0,001° |
| Tool control | |
| Number of power-driven tools | 3x 12 pos. |
| Main spindle power | 20 / 27 kW |
| Power-driven tool power | 8 kW |
| Delivery period | sofort |
| Y-axis | +/- 35 mm |
| Number of tool slots | 3x 12 pos. |
| Price | Auf Anfrage |
