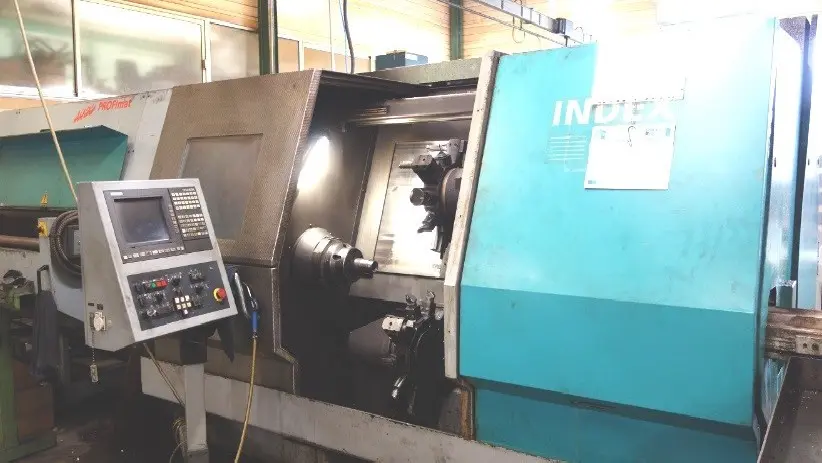

| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | INDEX |
| Year of manifacturing: | 1998 |
| Type: | G 200 Y |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p162863 |
| Make | INDEX |
| Type of machine | G 200 Y |
| Year of manufacture | 1998 |
| Control system | Index C200-4 (Siemens) |
| Tool holder | VDI 25 |
| Torque on the spindle | 102 Nm |
| Total power requirement | 33 kW |
| Cutting diameter | 200 mm |
| Control | CNC |
| Machine's weight | 4,3 t |
| Spindle nose | ISO 702/1 / 5 |
| Number of turret seats | 2 |
| Turning length | 400 mm |
| C-axis | 0,001 ° |
| Core diameter | max. 42 mm |
| Chip removal device |  |
| Cooling system | |
| Bar feeder | IEMCA |
| Chuck diameter | max. 160 mm |
| Overall dimensions | 8,5 x 2,5 x 2,5 m |
| Swing | 420 mm |
| Traverse X-axis | 105 mm |
| Traverse Z-axis | 400 mm |
| Spindle speed | max. 6.300 min/-1 |
| Rapid X - axis | 20 m/min |
| Rapid Z - axis | 30 m/min |
| Spindle drive power | 40% ED= 13,3/22 kW |
| Turret | 2 x 14 pos |
| Tool turret | 2x |
| Bar feeder interface | |
| Slots for power-driven tools | |
| Spindle bearing diameter | 85 mm |
| Parts trap | |
| C-axis | 0,001 ° |
| Main and counter spindle C-axis | |
| Documents | |
| Delivery period | sofort |
| Y-axis | 120 mm |
| Price | Auf Anfrage |
