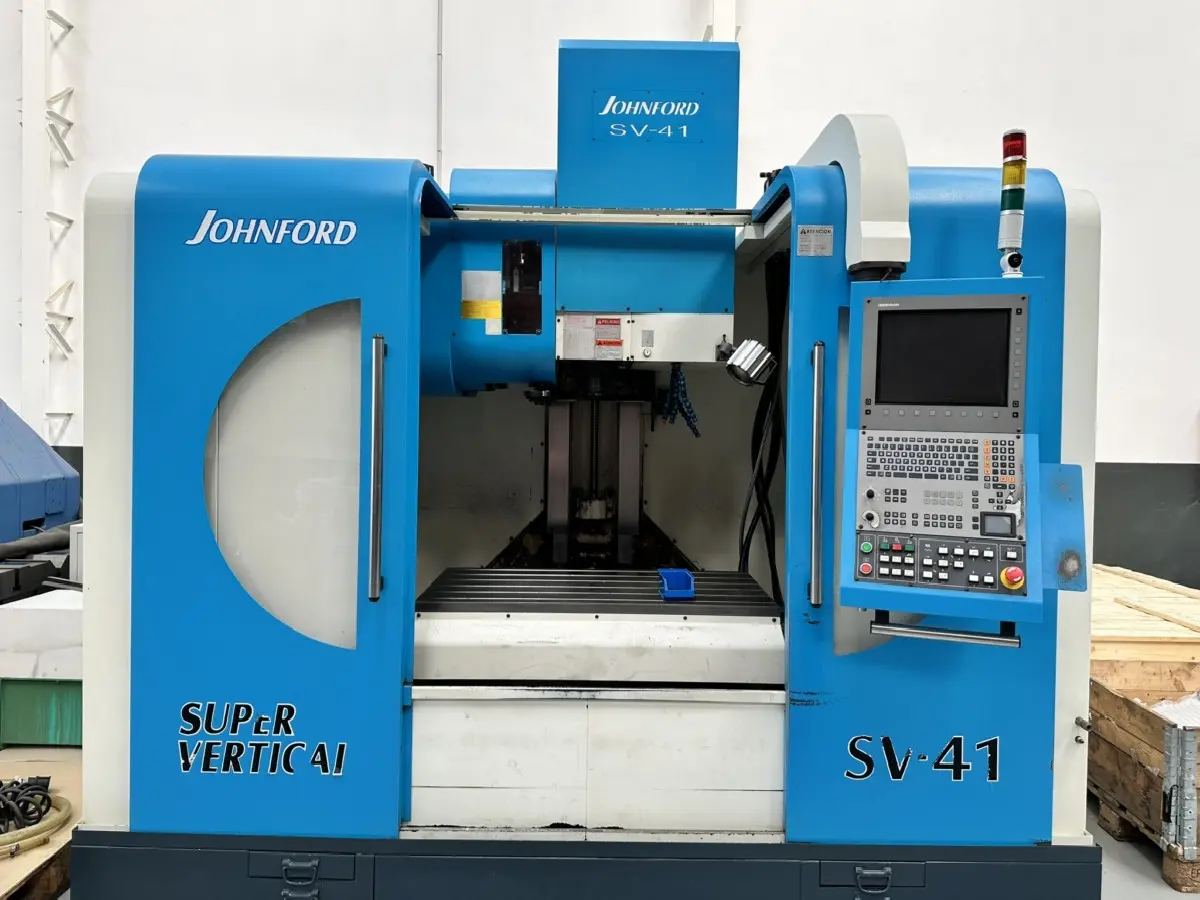

| Machine type: | Machining Center - Universal |
| Manufacturer: | JOHNFORD |
| Year of manifacturing: | 2007 |

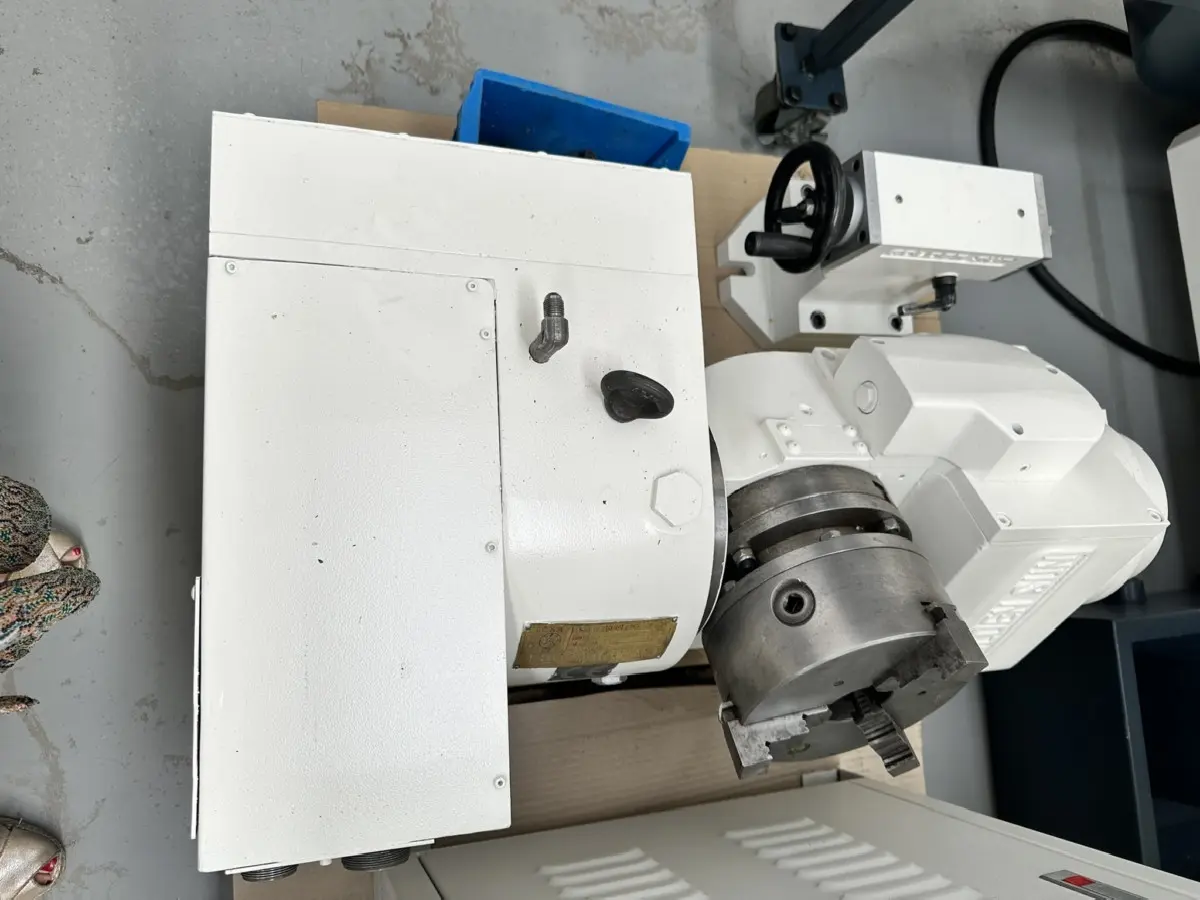

| Type: | SV - 41 + 4/5- Achse |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p234101 |
| Make | JOHNFORD |
| Type of machine | SV - 41 + 4/5- Achse |
| Year of manufacture | 2007 |

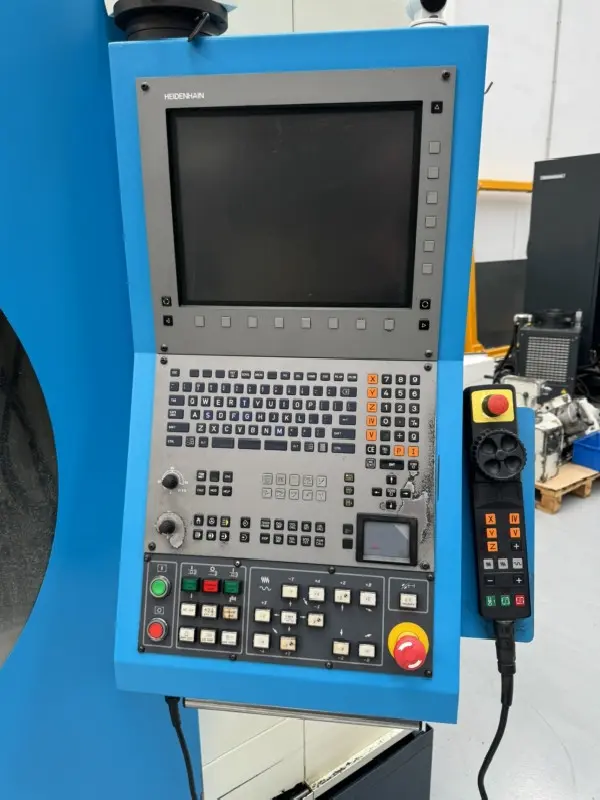

| Control system | HEIDENHAIN iTNC 530 |
| spindel speed | 60 - 10.000 U/min |
| spindle motor | 7,5/11 kW |
| x-travel | 1.050 mm |
| y-travel | 610 mm |
| z-travel | 610 mm |
| max. Table load | 1.200 Kg |
| Total power requirement | kW |
| Spindle lock | BT-40 |
| Max. distance between the table and the center of spindle | 100-710 mm |
| Control | CNC |
| Machine's weight | 7 t |
| Chip removal device | 2 |
| Tool changer assembly | 20 pos. |
| Tool diameter | 100 mm |
| Tool weight | 10 kg |
| Overall dimensions | 2.900 x 3.420 x 2.888 m |
| Table dimensions | 1.200 x 600 mm |
| Feed | 12.000 m/min |
| Rapid feed x/y/z | 30.000/20.000 mm/min |
| Delivery period | Sofort |
| Handwheel | HEIDENHAIN HR-410 |
| Internal coolant supply | 20 bar |
| Price | Auf Anfrage |
