CONTROLS

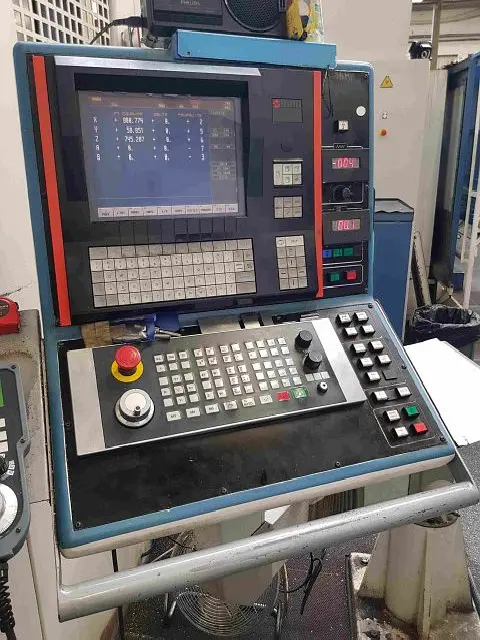

CNC controls NUM 1060 M
WORKING RANGE -CUBIC-
number of processing axes (excl parallel axes): 2
X-axis travel: 3000 mm
Y-axis travel: 2010 mm
Z-axis travel: 2000 mm
rotating range A-axis from: 92.5 °
rotating range C-axis up to: 360 °

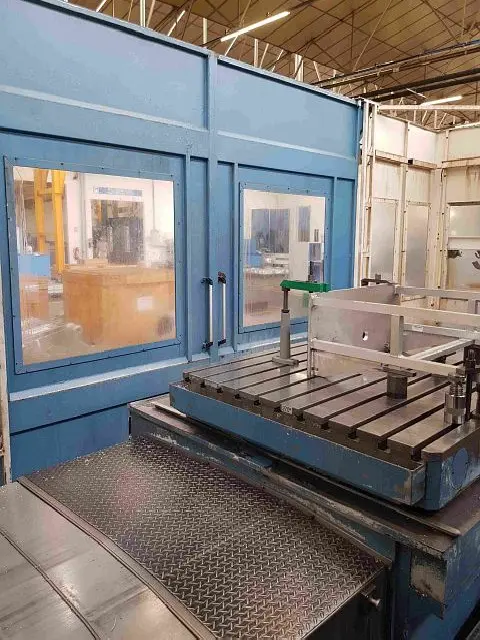

TABLE
table surface (left-right): 1450 mm
table surface (front-back): 1600 mm
FLOOR PLATE
total weight approx.: 12000 kg

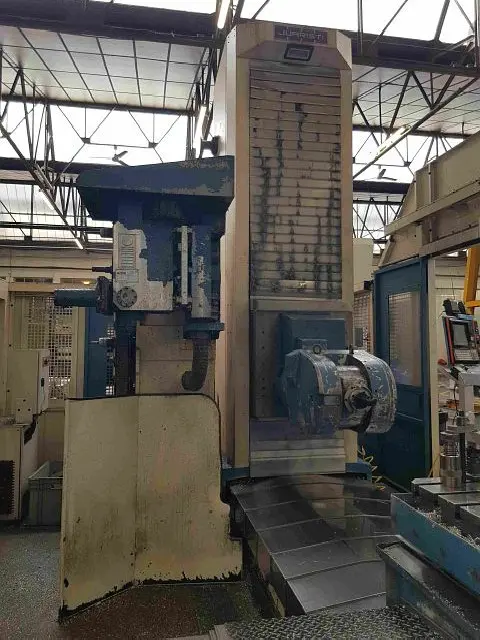

SPINDLE / HEAD
spindle revolutions (max): 3000 /min
tool fixture: ISO SK 50
drive power: 37 kW
AXIS DRIVES
traverse velocity X (max): 25000 mm/min
traverse velocity Y (max): 25000 mm/min
traverse velocity Z (max): 25000 mm/min
ELECTRICAL SPECIFICATIONS
mains voltage: 400 V
mains frequency: 50 Hz
ATTACHMENTS
chip conveyor: yes
through spindle coolant attachment: yes
