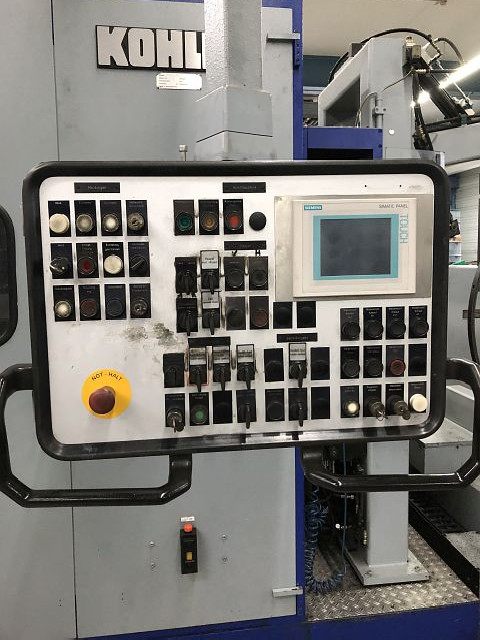

CONTROLS

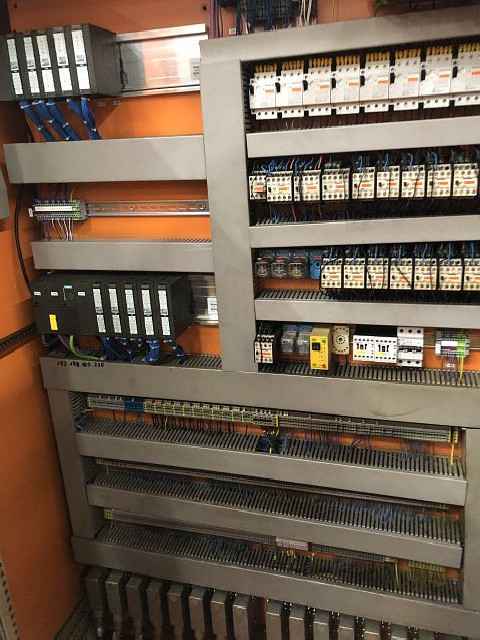

PLC SIEMENS S7
OVERALL SPECIFICATIONS (COIL LINES)
sheet width max.: 260 mm
sheet thickness max.: 6.5 mm
coil weight max.: 3 to
feed velocity max.: 20 m/min
feedstock transport direction: right to left
COIL CHAIR
coil weight max.: 3 to

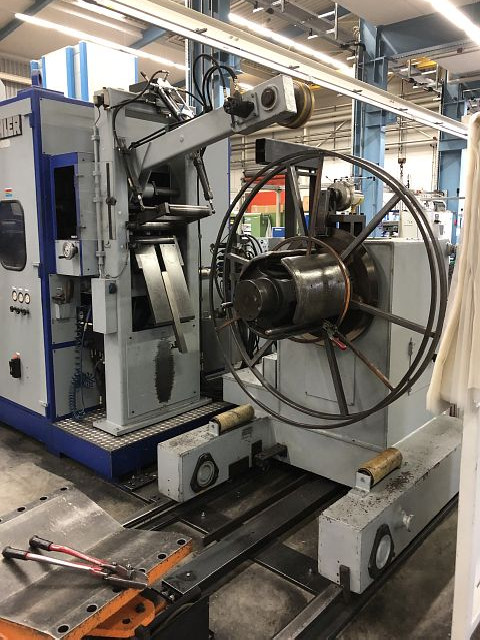

DECOILER
design: single reel, traversable
sheet width max.: 260 mm
coil weight max.: 3 to
mandrel expansion range from: 460 mm
mandrel expansion range up to: 530 mm

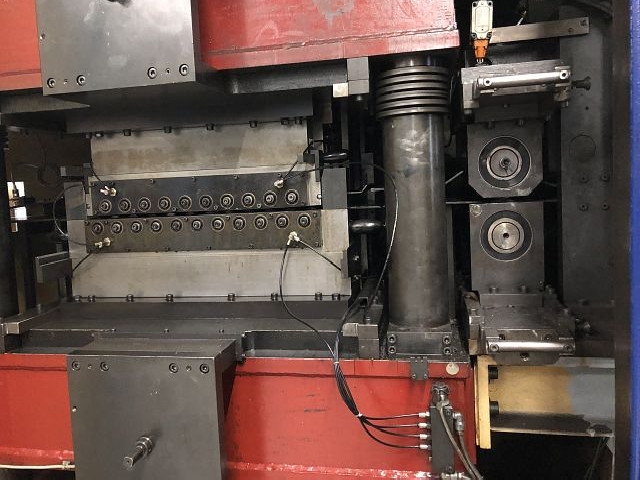

LEVELLER UNIT
sheet thickness max.: 6.5 mm
material cross section max. (450 N/mm2): 1500 mm²
number of leveller rolls: 21
diameter of leveller rolls: 50 mm
loop controls: yes
decoiler KOHLER, type 3000.1 with coil-chair

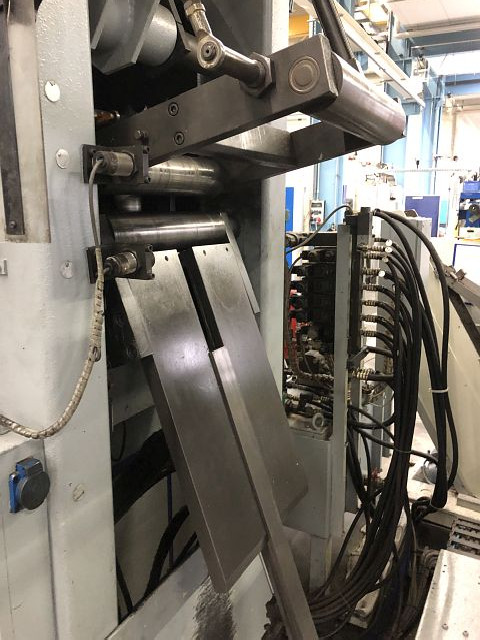

straightening machine KOHLER, type KRM 50.260/2

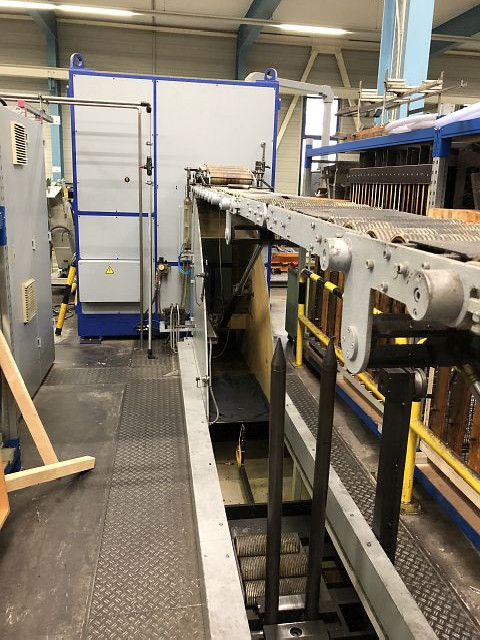

transfer bridge 6970 mm, hydraulic operated
