CONTROLS

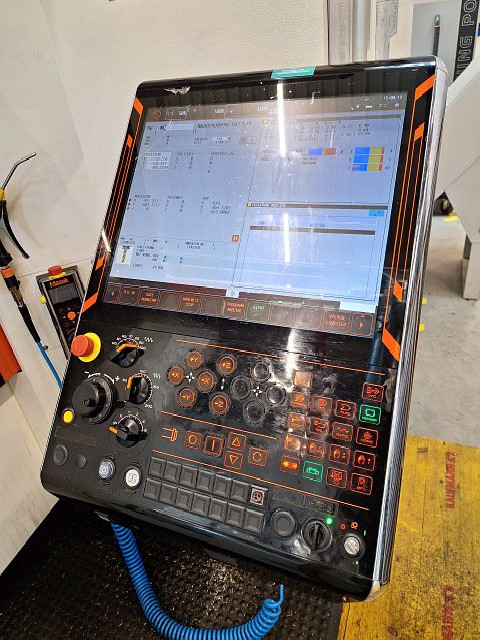

CNC controls MAZATROL
WORKING RANGE -CUBIC-
number of processing axes (excl parallel axes): 3
X-axis travel: 1500 mm
Y-axis travel: 800 mm
Z-axis travel: 660 mm
distance spindle nose - table surface (max.): 820 mm
TABLE
table surface (left-right): 1740 mm
table surface (front-back): 750 mm
workpiece load (max): 2500 kg
SPINDLE / HEAD
spindle revolutions (min): 35 /min
spindle revolutions (max): 10000 /min
tool fixture: ISO SK 50
TOOL MAGAZINE
number of positions: 30
tool diameter max.: 125 mm
- with free neighbour positions: 210 mm
tool length max.: 380 mm
tool weight max.: 20 kg
AUTOMATIC WORKLOAD EQUIPMENT
number of store positions: 2
ELECTRICAL SPECIFICATIONS
mains power supply: 74 kVA
mains voltage: 400 V
mains frequency: 50 Hz
ATTACHMENTS

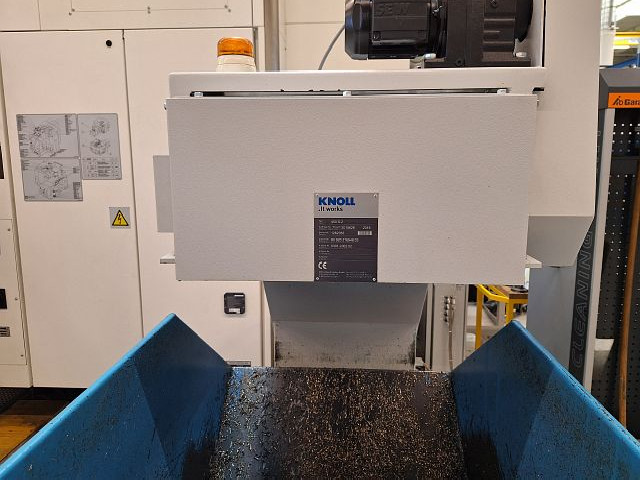

chip conveyor: yes
coolant unit: no
through spindle coolant attachment: yes
closed cabin: yes
European CE standards: yes
Machine comes without coolant system but with a high-pressure pump.
The magnetic plates are not included but can be purchased if you are interested.
