CONTROLS

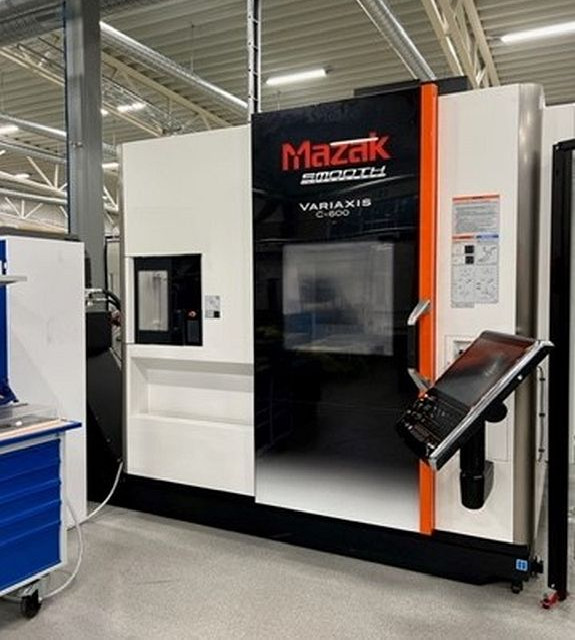

CNC controls MAZAK SMOOTH AI
WORKING RANGE -CUBIC-
number of processing axes (excl parallel axes): 5
X-axis travel: 650 mm
Y-axis travel: 550 mm
Z-axis travel: 530 mm
rotating range B-axis from: -30 °
rotating range B-axis up to: 120 °
rotating range C-axis up to: 360 °
TABLE
table surface (left-right): 600 mm
table surface (front-back): 500 mm
workpiece load (max): 500 kg

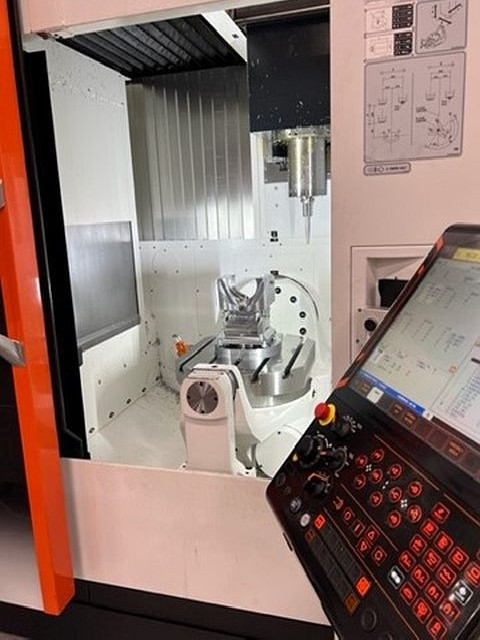

SPINDLE / HEAD
spindle revolutions (max): 18000 /min
tool fixture: ISO SK 40
drive power: 30 kW
AXIS DRIVES
rapid traverse X: 42000 mm/min
rapid traverse Y: 42000 mm/min
rapid traverse Z: 42000 mm/min
TOOL MAGAZINE
magazin type: chain magazine
number of positions: 60
tool diameter max.: 80 mm
- with free neighbour positions: 130 mm
tool length max.: 300 mm
ELECTRICAL SPECIFICATIONS
mains voltage: 400 V
mains frequency: 50 Hz
ATTACHMENTS
coolant unit: yes
through spindle coolant attachment: yes
closed cabin: yes
European CE standards: yes

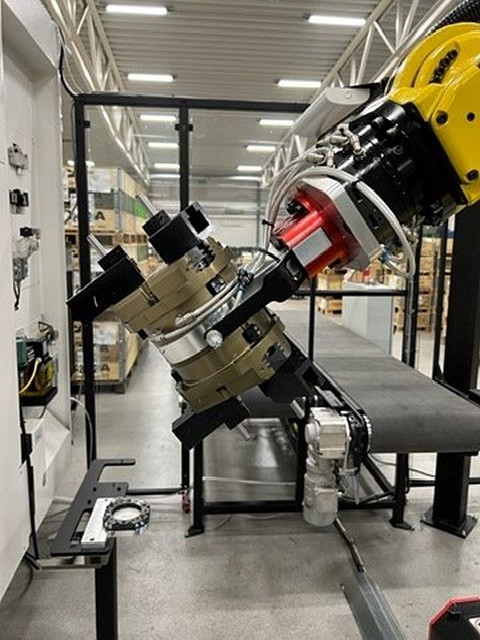

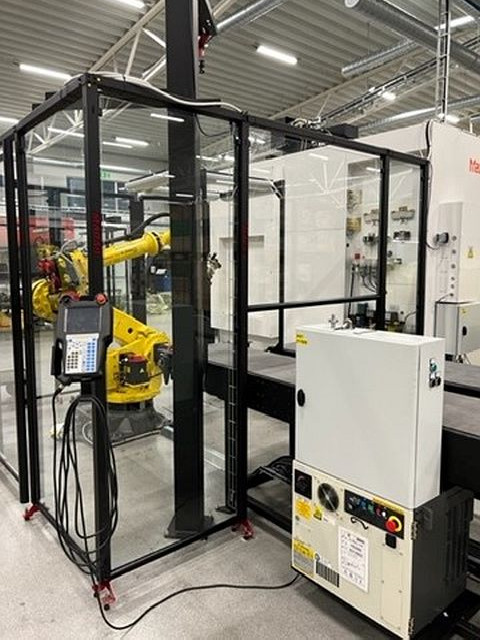

Automation - Robot cell
-Fanuc R-2000 IC robot
with tool change incl. gripper to change clamping devices/vices in the machine
-5 pcs. vices-
-1 pc. Hainbuch clamping device for internal clamping
-Vision camera
-Parts conveyor belts
