CONTROLS
CNC controls MAZAK SMOOTH G
WORKING RANGE -CUBIC-
number of processing axes (excl parallel axes): 5
X-axis travel: 1050 mm
Y-axis travel: 530 mm
Z-axis travel: 510 mm
distance spindle nose - table surface (max.): 660 mm

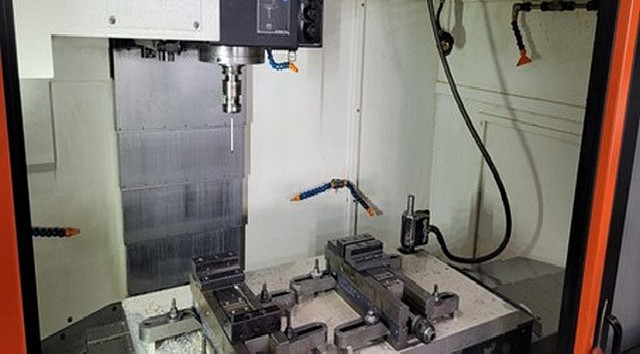

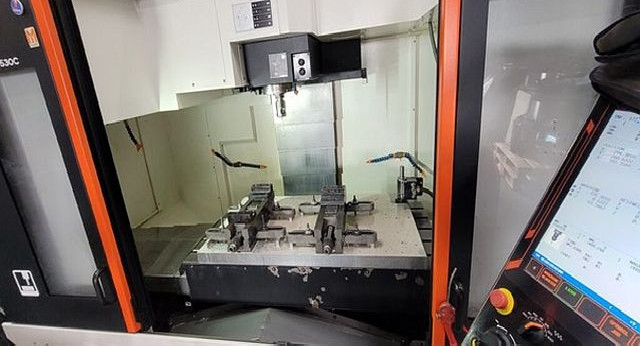

TABLE
table surface (left-right): 1300 mm
table surface (front-back): 550 mm
workpiece load (max): 1200 kg
SPINDLE / HEAD
spindle revolutions (max): 12000 /min
tool fixture: ISO SK 40

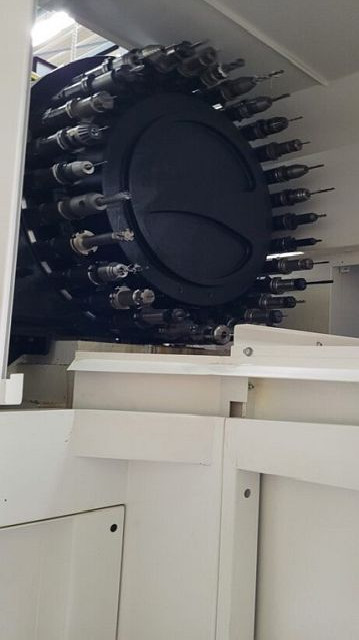

TOOL MAGAZINE
magazin type: disc magazine
number of positions: 30
tool diameter max.: 80 mm
- with free neighbour positions: 125 mm
tool length max.: 350 mm
tool weight max.: 8 kg
ELECTRICAL SPECIFICATIONS
mains voltage: 400 V
mains frequency: 50 Hz
ATTACHMENTS
chip conveyor: yes
coolant unit: yes
through spindle coolant attachment: yes
closed cabin: yes
European CE standards: yes
