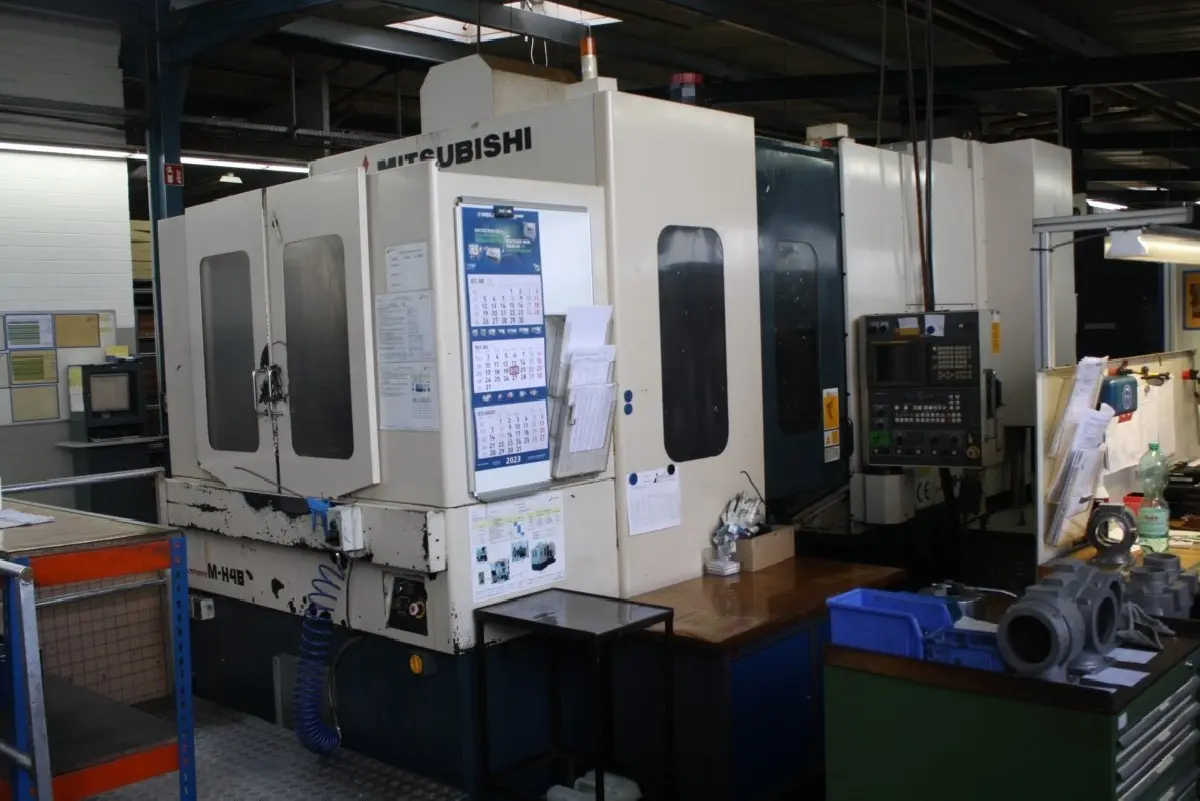

Machine type: | Machining Center - Horizontal |
Manufacturer: | MITSUBISHI |
Year of manifacturing: | 1998 |
Type: | M-H4B |
Condition: | used |
Attended time: | h |
Number of reference: | p195845 |
Make | MITSUBISHI |
Type of machine | M-H4B |
Year of manufacture | 1998 |

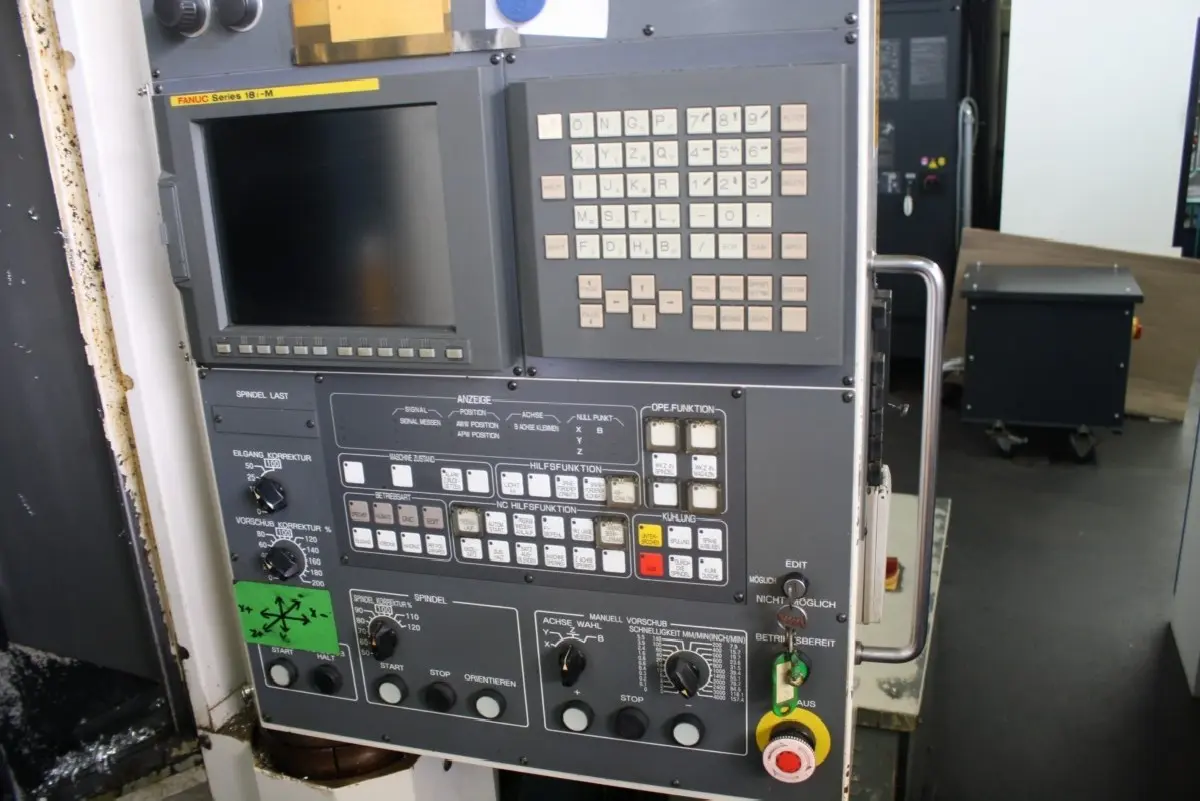

Control system | Fanuc 18i-M |
spindel speed | 120-12000 U/min |
x-travel | 650 mm |
y-travel | 560 mm |
z-travel | 650 mm |
max. Table load | 400 kg |
b-axis | 360 1° |
Total power requirement | 22,4 kW |
Control | CNC |
Machine's weight | 10,5 t |
Table area | 400 x 400 mm |

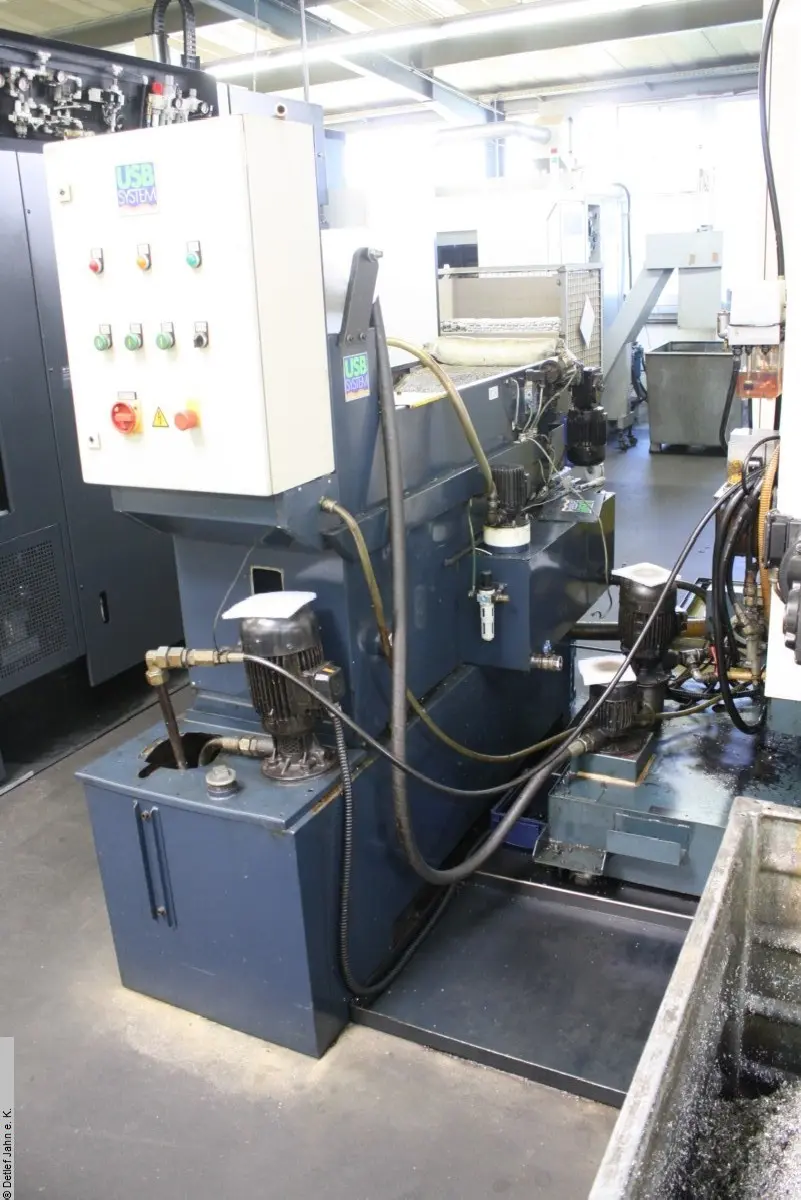

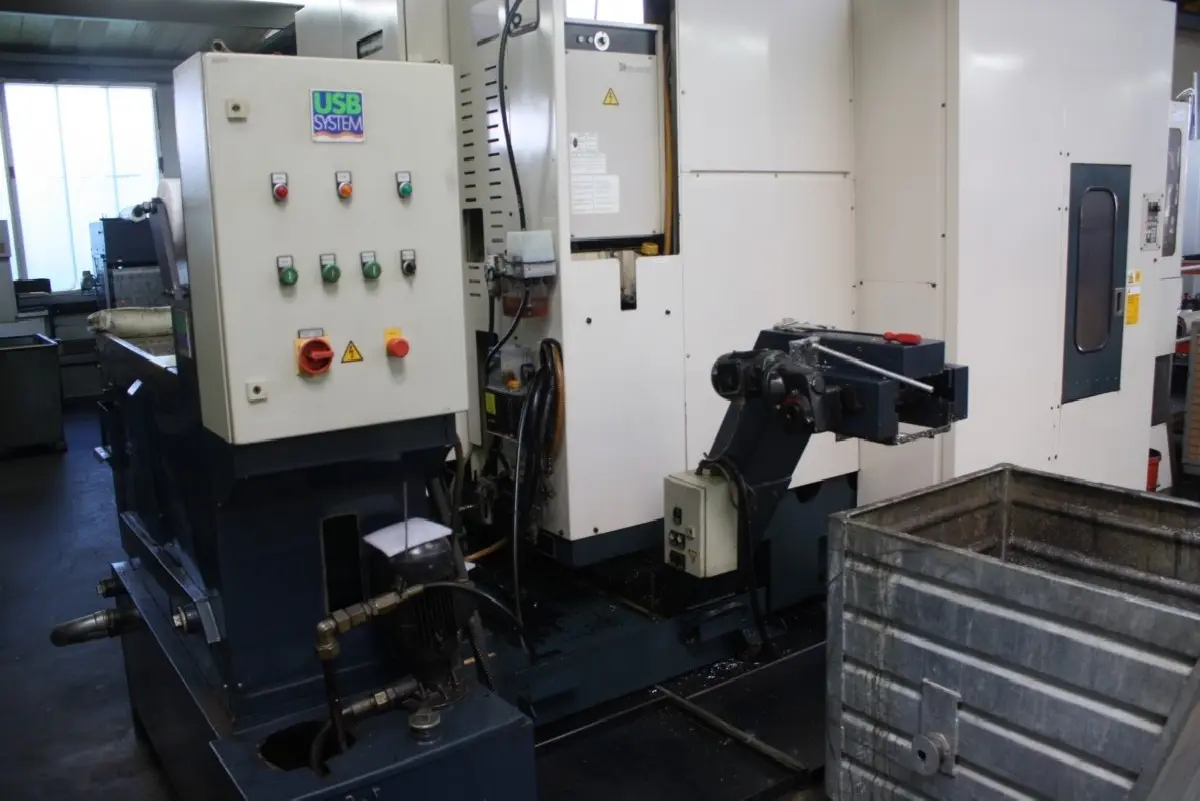

Chip removal device | ja/yes |
Tool-to-tool change rate | 3,8 sec chip/chip |
Overall dimensions | 5 x 3,3 x 3 m (LBH) |
Feed | 1-40.000 mm/min |
- | 60 BT 40 |
Pallet changer | 2 |
Delivery period | sofort |
Handwheel | ja/yes hand wheel |
Price | Auf Anfrage |
