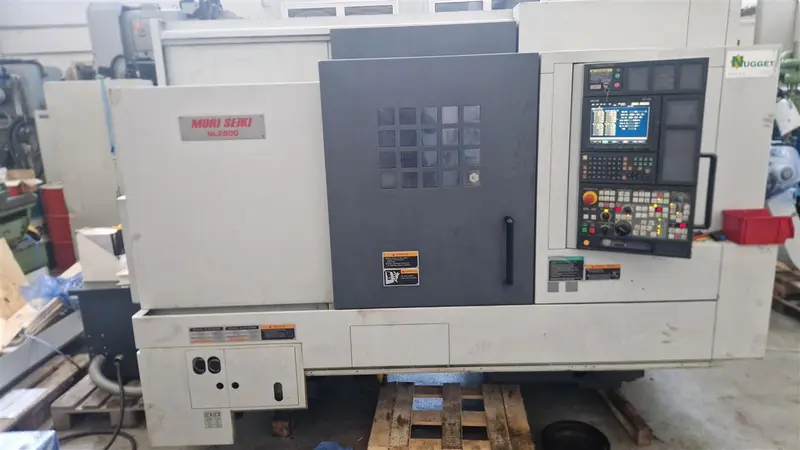

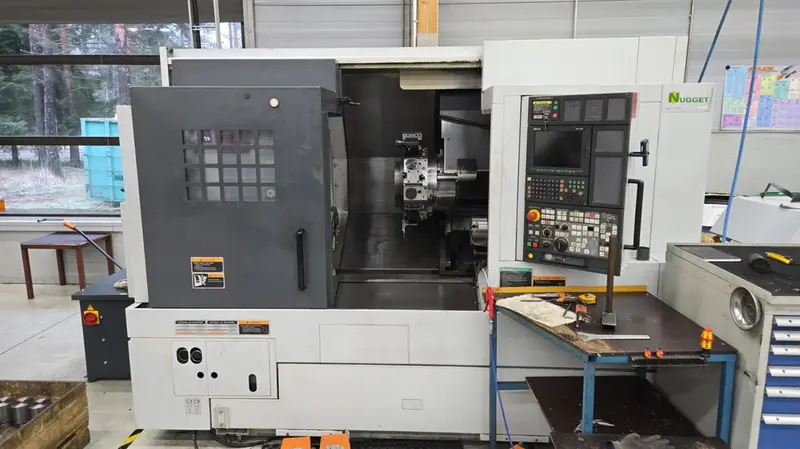

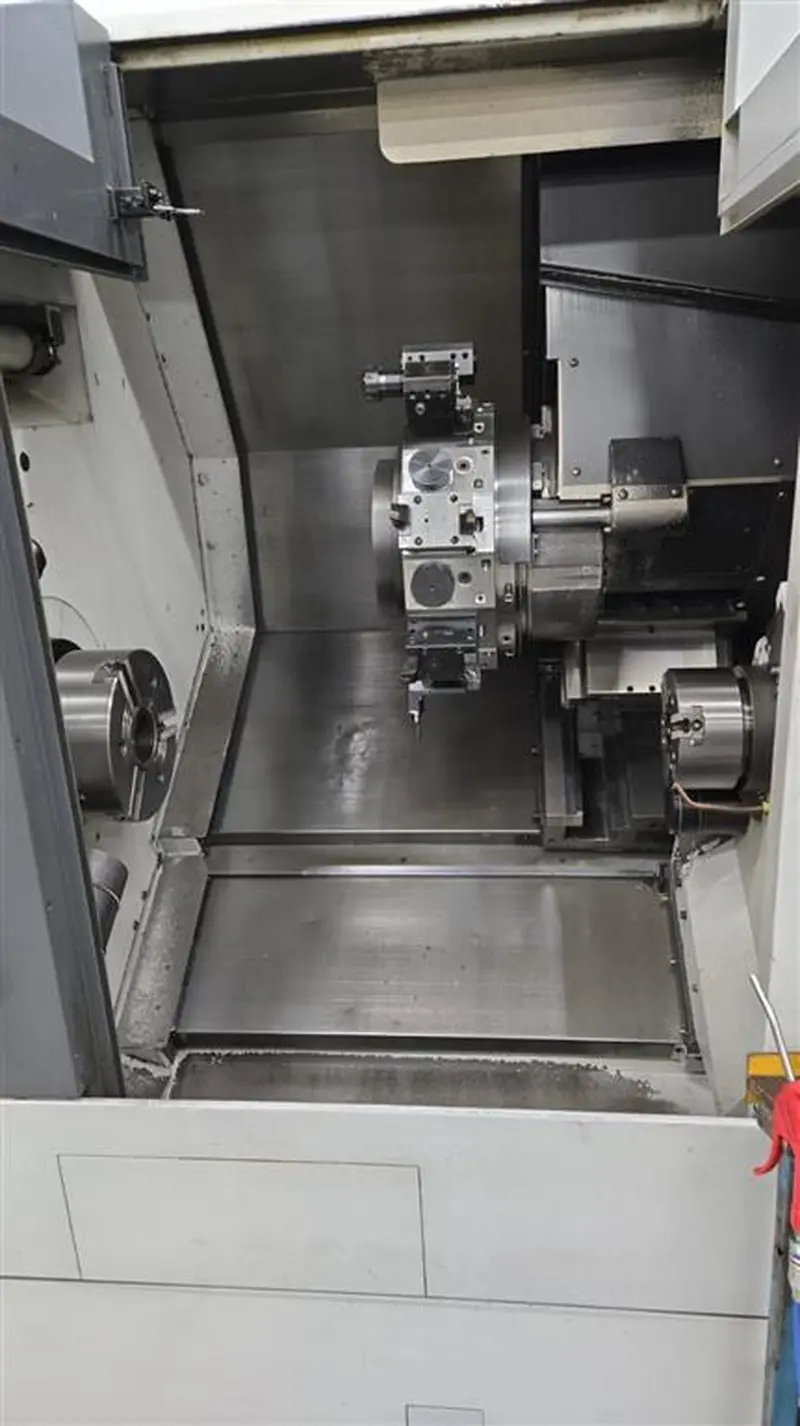

| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | MORI SEIKI |
| Year of manifacturing: | 2005 |
| Type: | NL 2500 SY / 700 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p239468 |
| Make | MORI SEIKI |
| Type of machine | NL 2500 SY / 700 |
| Year of manufacture | 2005 |

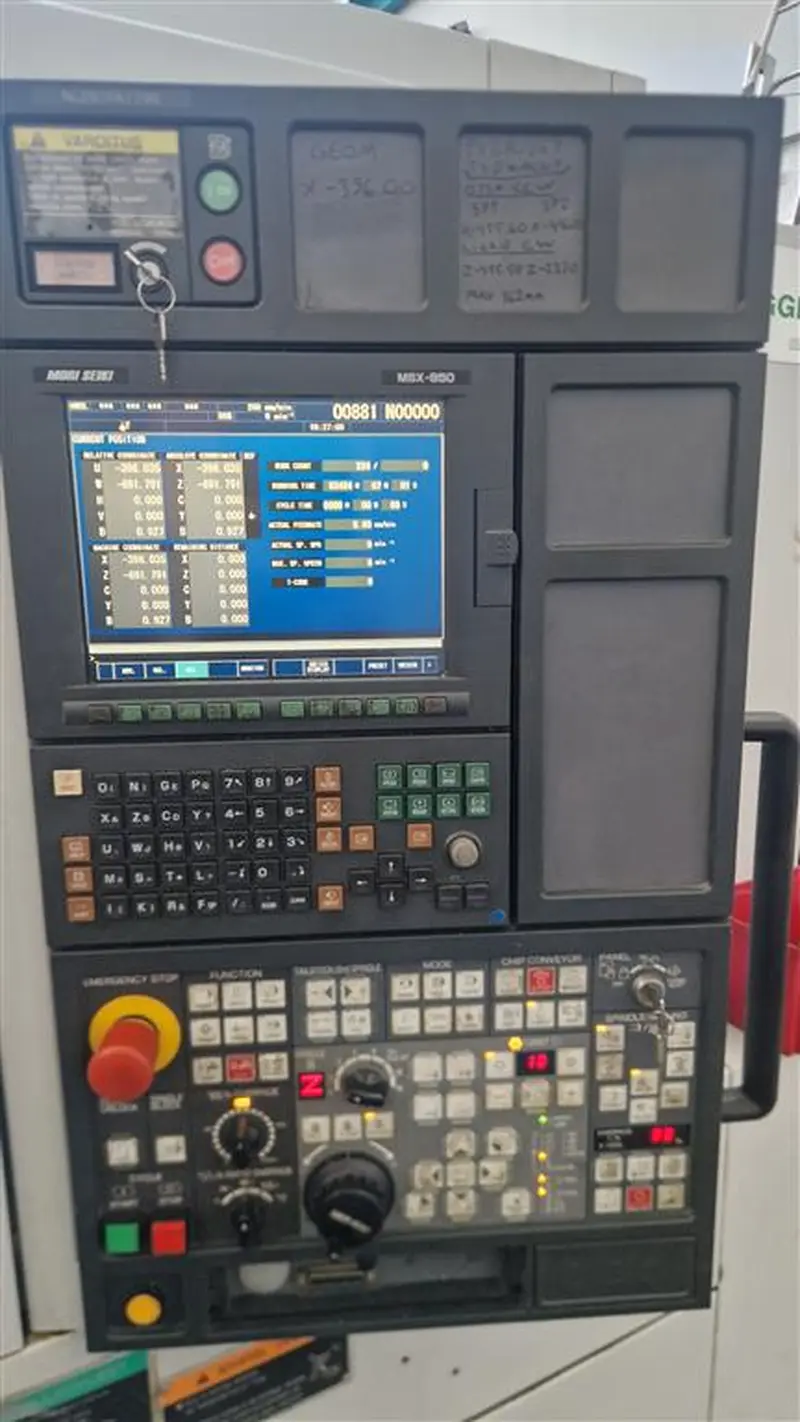

| Control system | MSX 850 MAPPS II |
| Total power requirement | 39,2 kVA |
| Cutting diameter | 275 mm |
| Control | CNC (MSX850 MAPPS II) |
| Machine's weight | 6,2 t |
| Chucking capacity | 755 mm |
| Overall dimensions | 3,1 x 2,0 x 2,2 m |
| Traverse X-axis | 260 mm |
| Traverse Z-axis | 795 mm |
| Rapid Y - axis | 10 m/min |
| Traverse Y-axis | 100 (+-50) mm |
| Speed range – spindle 1 | 4000 1/min |
| Speed range – spindle 2 | 6000 1/min |
| Power-driven tool drive power | 5.5/5,5/3,7 kW |
| Power – spindle 1 | 18,5/18,5/15 kW |
| Power – spindle 2 | 11 / 7,5 kW |

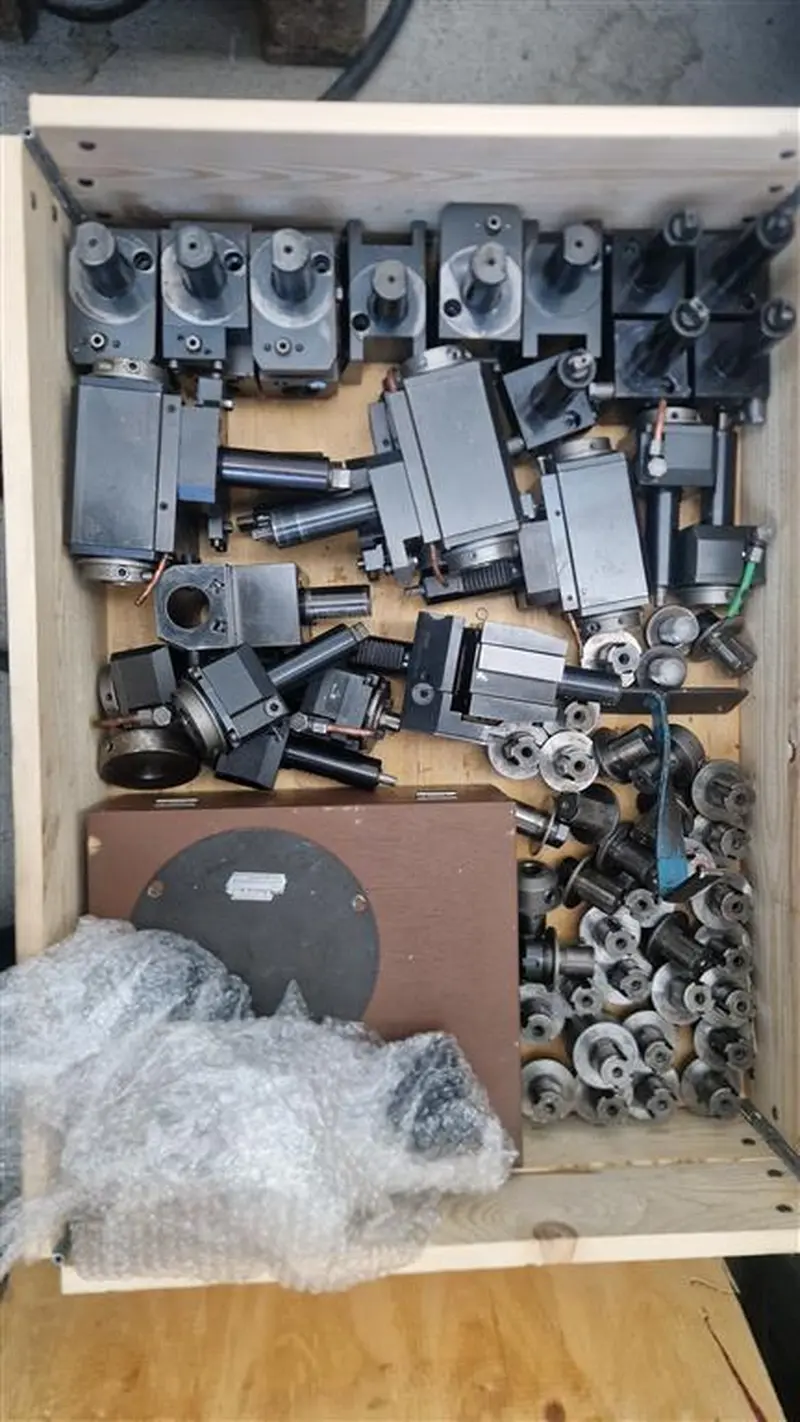

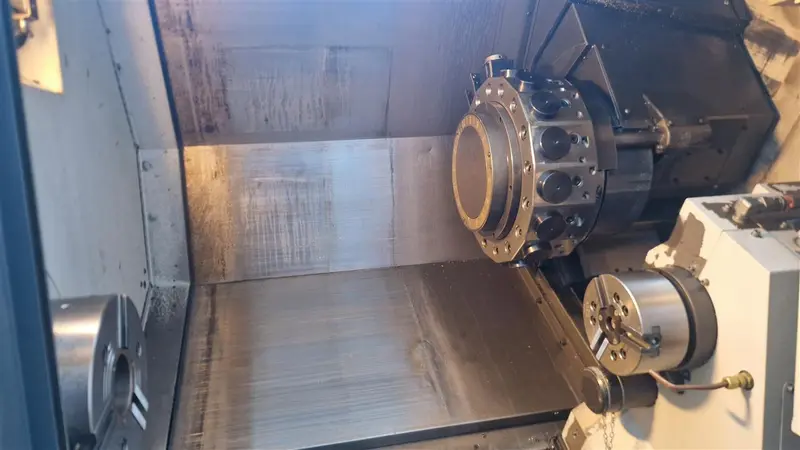

| Turret, number of tool slots / of which number of power-driven tools is | 16 / 16 VDI 30 |

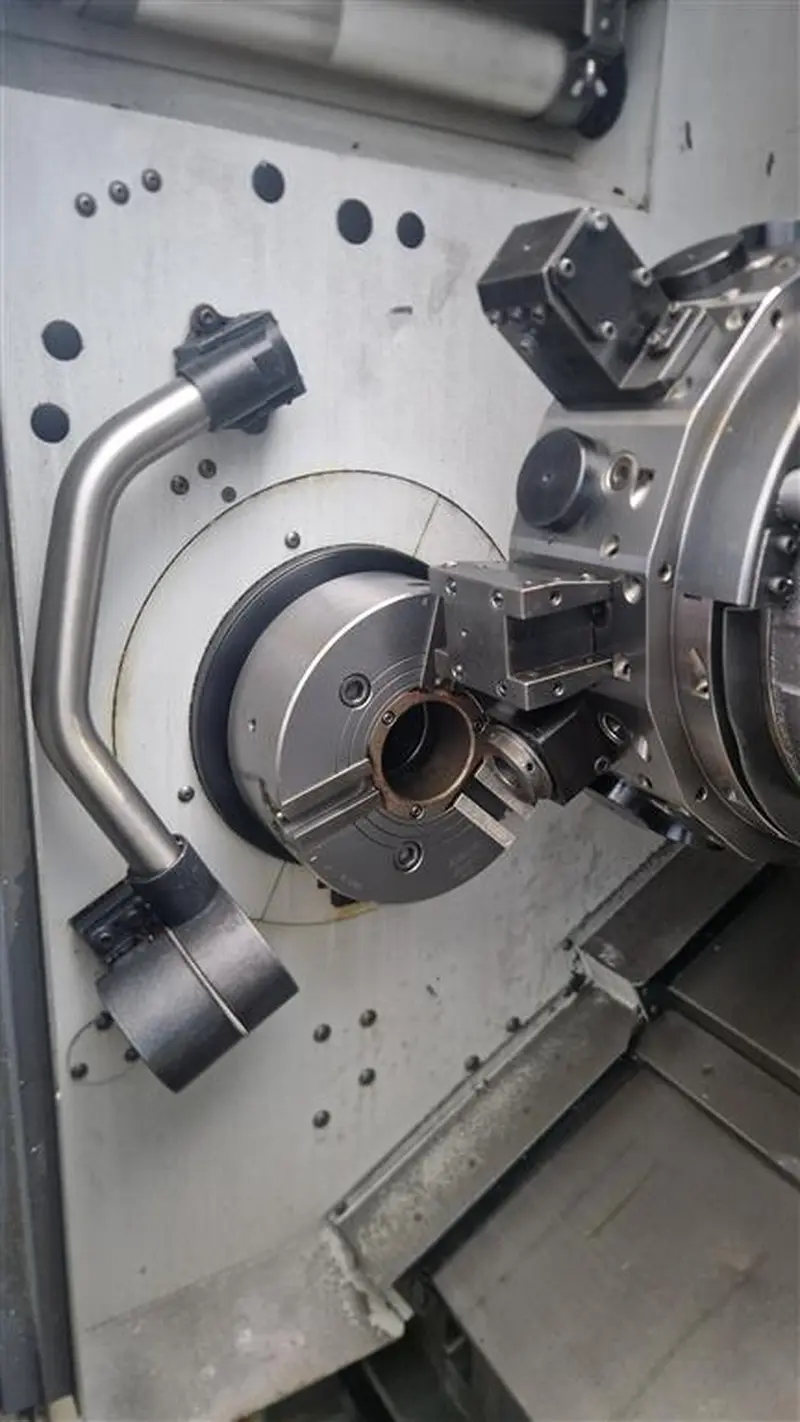

| Power chuck – spindle 1 | Kitagawa B 210 (250 mm) |
| Power chuck – spindle 2 | Kitagawa B 206 (160 mm) |
| Price |  |
