| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | MORI SEIKI |
| Year of manifacturing: | 2010 |
| Type: | NZ 1500 T2Y |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p224882 |
| Make | MORI SEIKI |
| Type of machine | NZ 1500 T2Y |
| Year of manufacture | 2010 |

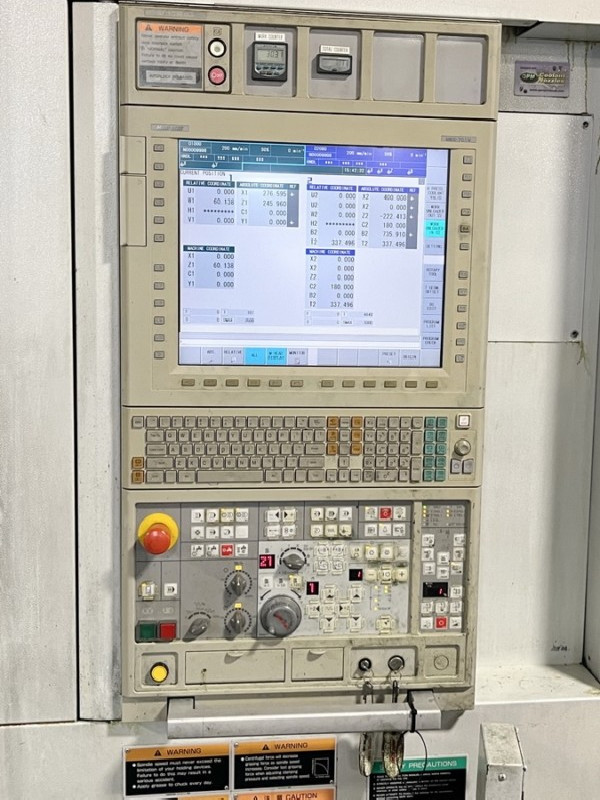

| Control system | MSX 701 |
| x-travel | 1/2: 210 mm |
| y-travel | 110 mm |
| z-travel | 1/2: 810 mm |
| b-axis | 900 mm |
| Total power requirement | 86 kVA |
| Cutting diameter | max. 320 mm |
| Speed range | max. 6.000 U/min |
| Control | CNC |
| Machine's weight | 8,1 t |
| Spindle nose | JIS A2-5 |
| Turning length | 810 mm |
| Chip removal device |  |
| Cooling system | |
| Collet chuck | 2x 140 mm |
| Bar feeder | Master 880 Verso IEMCA |
| Overall dimensions | 8,0 x 3,5 x 2,8 m |
| Tool turret | 2x |
| Counter spindle | |
| Bar feeder interface | |
| Power-driven tool holding fixture | 7x Axial |
| Parts trap | |
| C-axis | |
| Number of power-driven tools | 16 pos. |
| - | |
| Various tool holders | 12 x |
| Main spindle power | 22 / 18 kW |
| Documents | |
| Power-driven tool power | 7,5 / 5,5 kW |
| Triple signaling light | |
| Delivery period | sofort |
| Y-axis | |
| Number of tool slots | 16 pos. |
| Price | Auf Anfrage |
