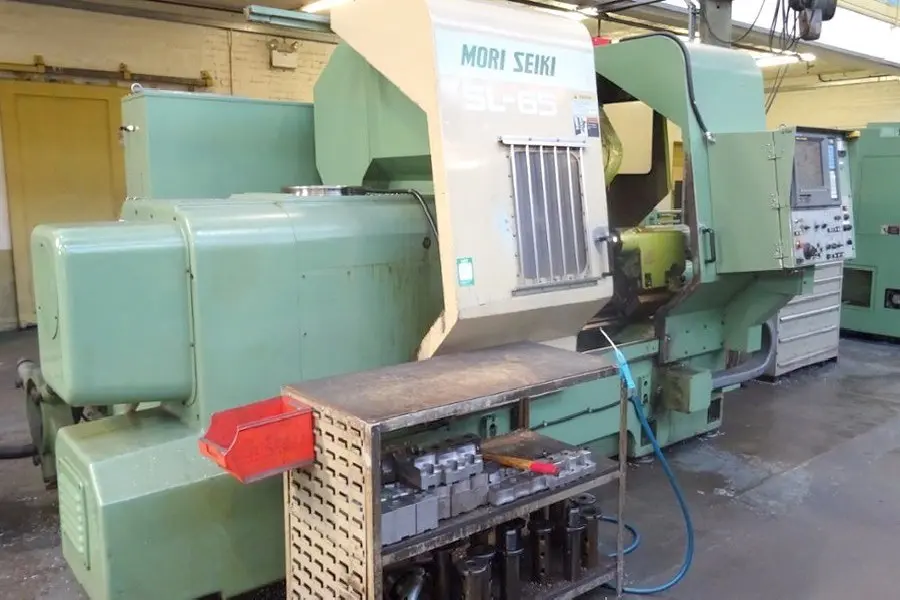

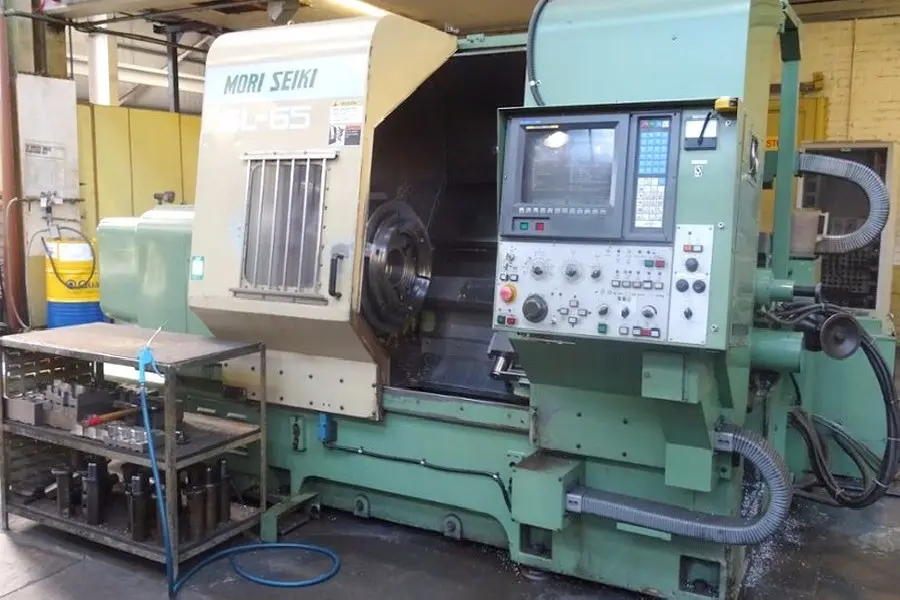

| Machine type: | CNC Turning Machine |
| Manufacturer: | MORI SEIKI |
| Year of manifacturing: | 1991 |
| Type: | SL 65 B |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p188004 |
| Make | MORI SEIKI |
| Type of machine | SL 65 B |
| Year of manufacture | 1991 |

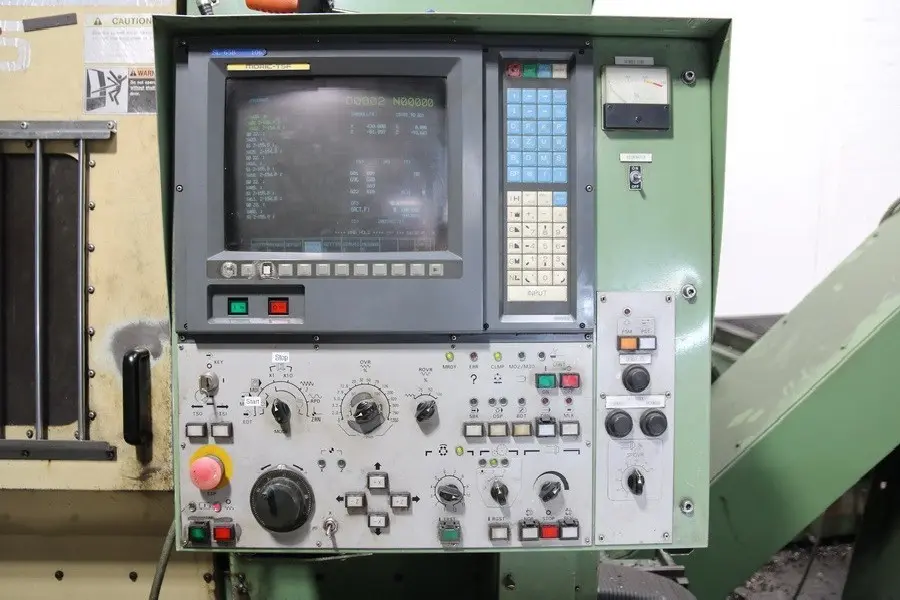

| Control system | MORIC T5F |
| Torque on the spindle | 3.870 Nm |
| spindle head | JIS A2 -11 |
| distance between centres | 900 mm |
| Total power requirement | 69 kVA |
| Rapid feed | X: 5 / Z: 8 m/min |
| Cutting diameter | max. 650 mm |
| Sleeve travel | 100 mm |
| Control | CNC |
| Machine's weight | 9,2 t |
| Turning length | max. 790 mm |

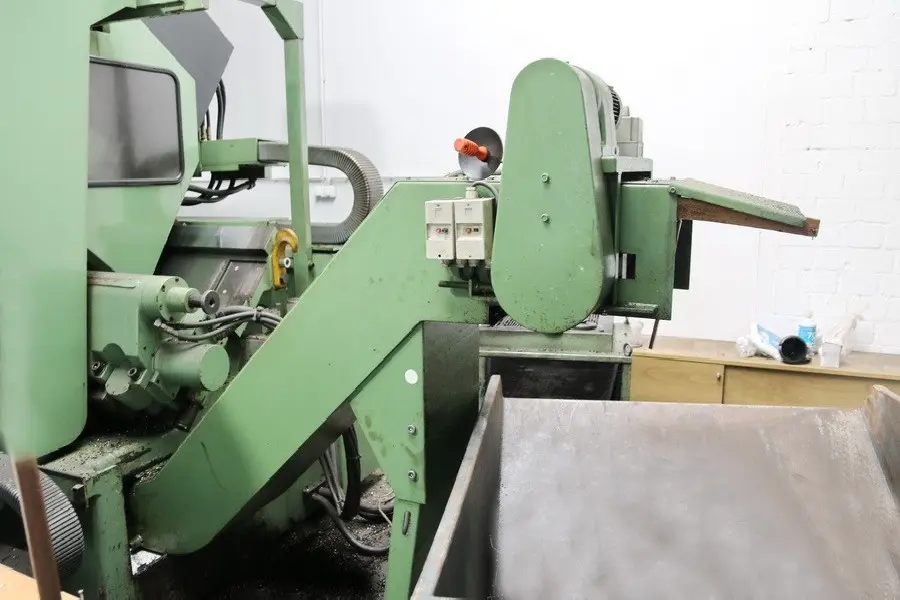

| Chip removal device |  |
| Cooling system | |

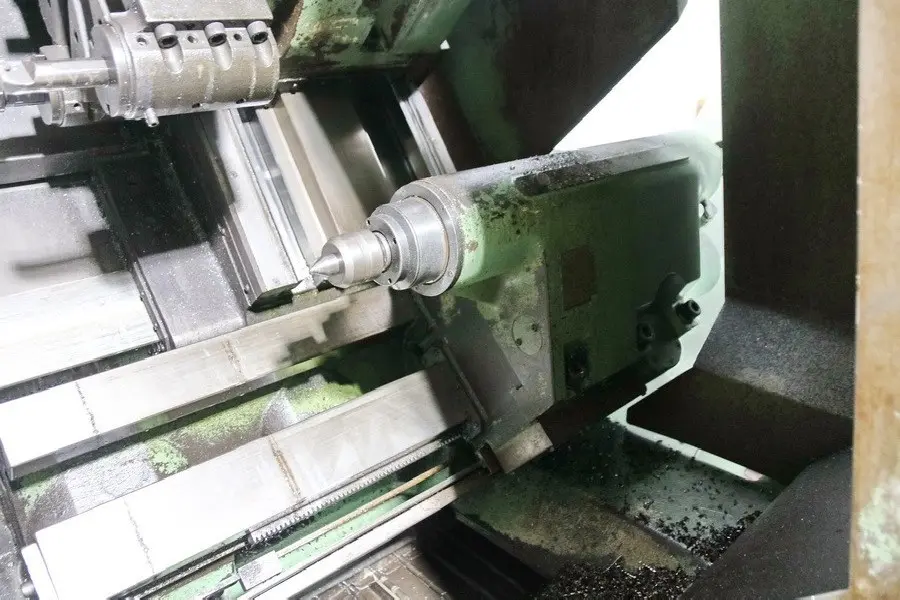

| Tailstock | |
| Rest | max. 260 mm |
| Overall dimensions | 6,0 x 3,0 x 2,6 m |
| Tailstock clamp/taper | MK 4 |
| Machining diameter over bed | 890 mm |
| Chuck size | 610 mm |
| Sleeve diameter | 110 mm |

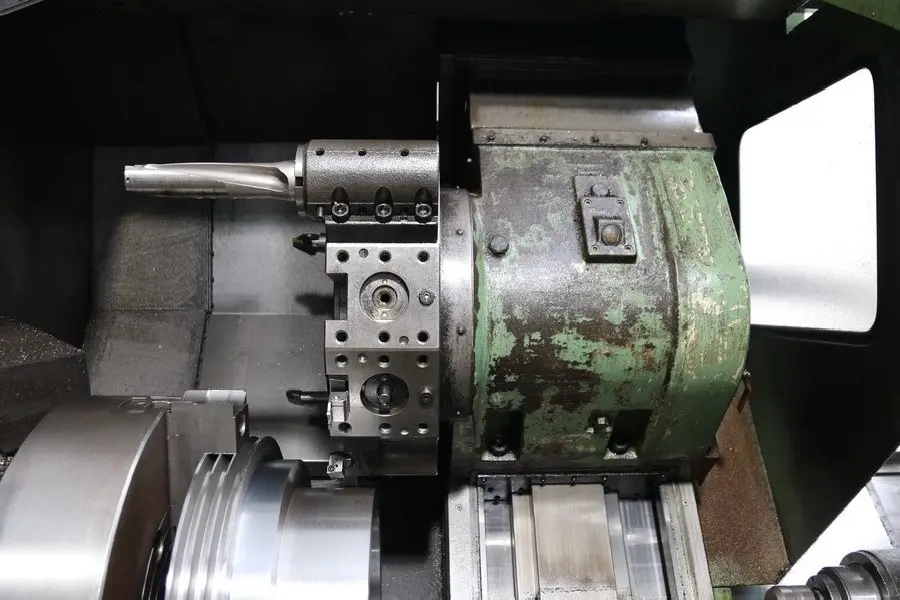

| Tool turret | |
| X-travel | 350 (25 + 325) mm |
| Z-travel | 860 mm |
| Bar diameter | 144 mm |

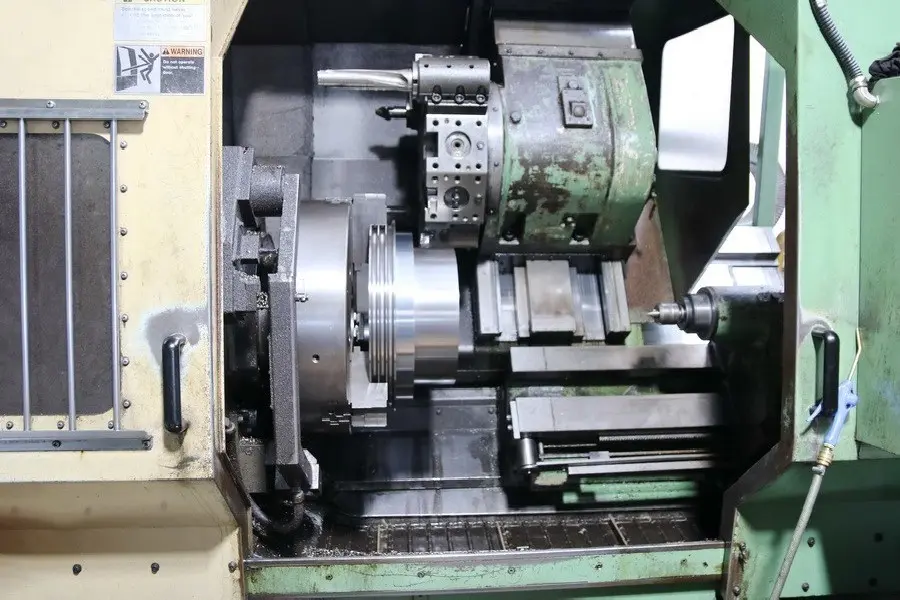

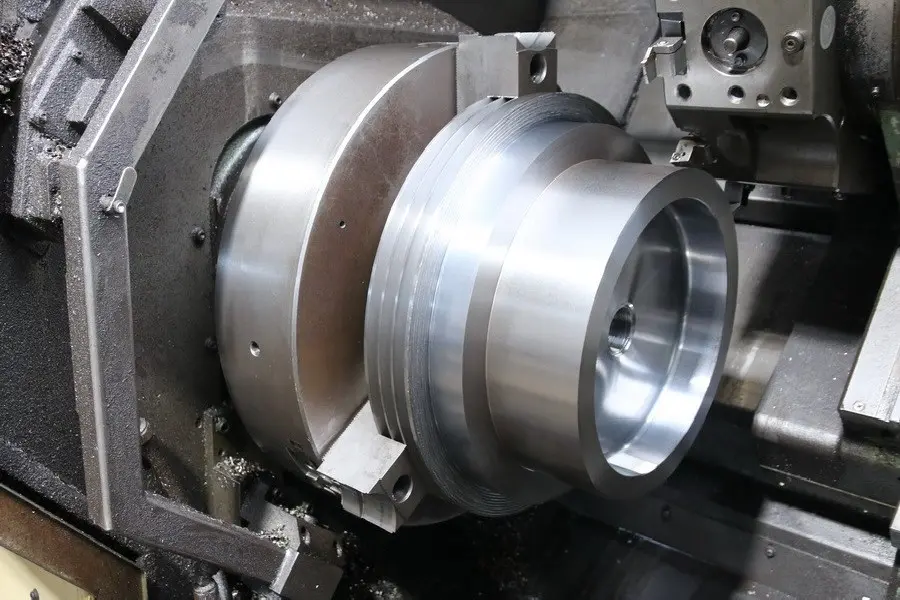

| Three-jaw chuck | |
| Main spindle speed range | 4 - 1.010 min/-1 |
| Spindle bearing diameter | 240 mm |
| Machining diameter over cross carriage/ saddle | 560 mm |
| - | |
| Main spindle power | 37 / 30 kW |
| Documents | |
| Spindle opening | 168 mm |
| Delivery period | nach Absprache |

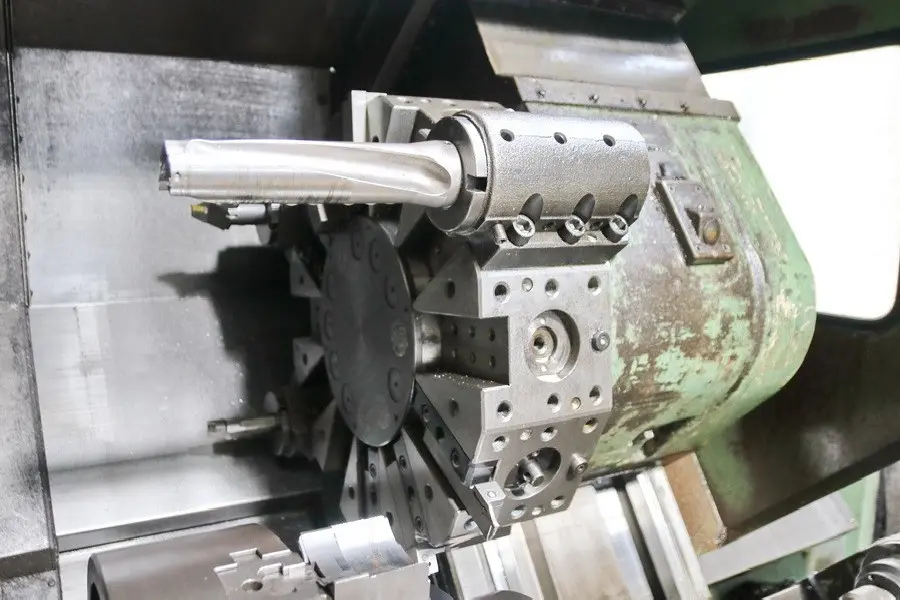

| Number of tool slots | 12 pos. |
| Price | Auf Anfrage |
