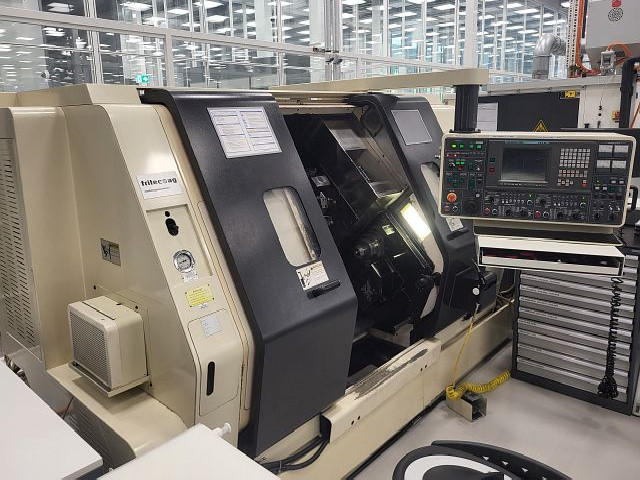

CNC Turning and Milling Machine NAKAMURA TW 10

CONTROLS

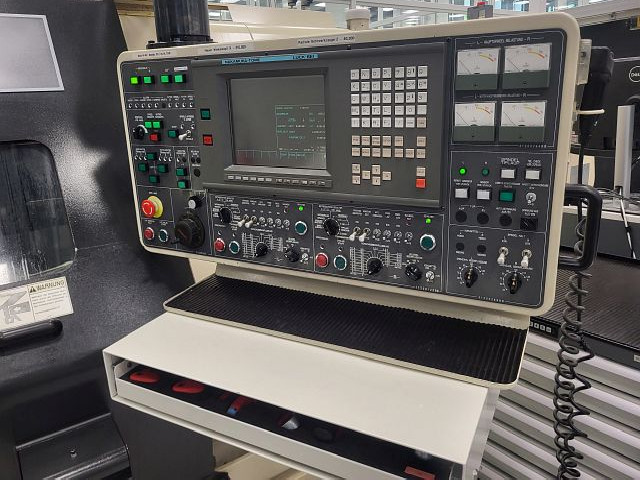

  CNC controls FANUC

BASIC FUNCTIONS
  design principle: inclined bed
  number of spindles: 2
  number of x/z slides: 2

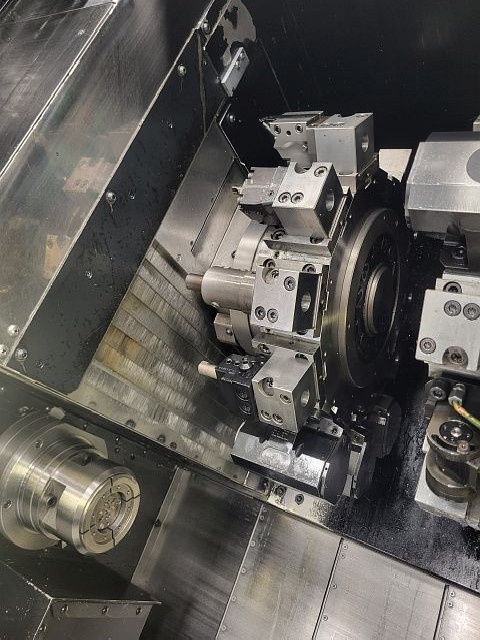

  number of turrets: 2
  live positions: yes
  number of c-axes: 2
  number of y-axes: 1

WORKING RANGE TURNING
  turning diameter (max): 210 mm
  bar diameter (max): 42 mm

MAIN SPINDLE
  spindle revolutions (max): 5500 /min
  c-axis: yes

COUNTER SPINDLE
  spindle revolutions (max): 5500 /min
  c-axis: yes

DIMENSIONS / WEIGHTS
  total weight approx.: 4800 kg

ATTACHMENTS (TURNING)
  chip conveyor: yes
  hydraulic system: yes
