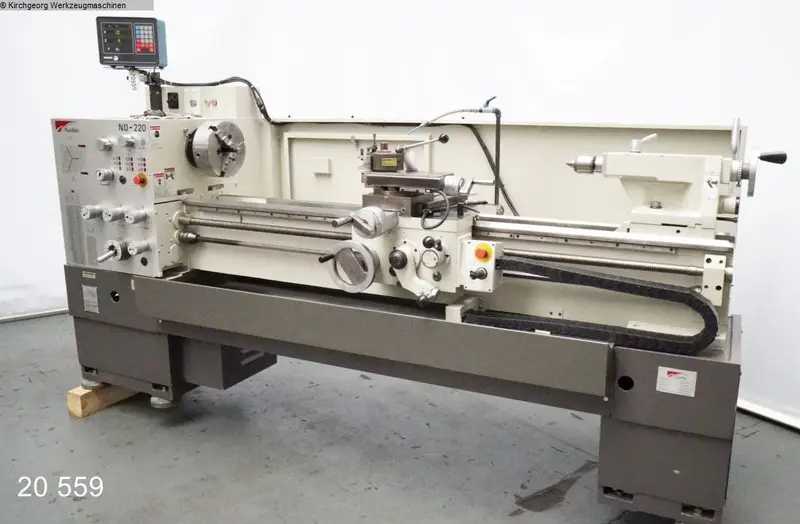

| Machine type: | Screw-cutting lathe |
| Manufacturer: | NARDINI |
| Year of manifacturing: | 2000 |
| Type: | ND 220 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p235917 |
| Make | NARDINI |
| Type of machine | ND 220 |
| Year of manufacture | 2000 |
| distance between centres | 1.500 mm |
| Bed width | 280 mm |
| Speed range | 30 - 2.360 U/min |
| Total power requirement | 6,5 kW |
| Sleeve travel | 200 mm |
| Control | konventionell |
| Machine's weight | 1,5 t |
| Turning length | 1.500 mm |
| Cooling system |  |
| Overall dimensions | 2,90 x 1,10 x 1,75 m |
| Machining diameter over bed | 440 mm |
| Turning diameter over saddle | 270 mm |
| Turning diameter over gap block | 620 mm |
| Sleeve diameter | 60 mm |
| Operating voltage | 380 V |

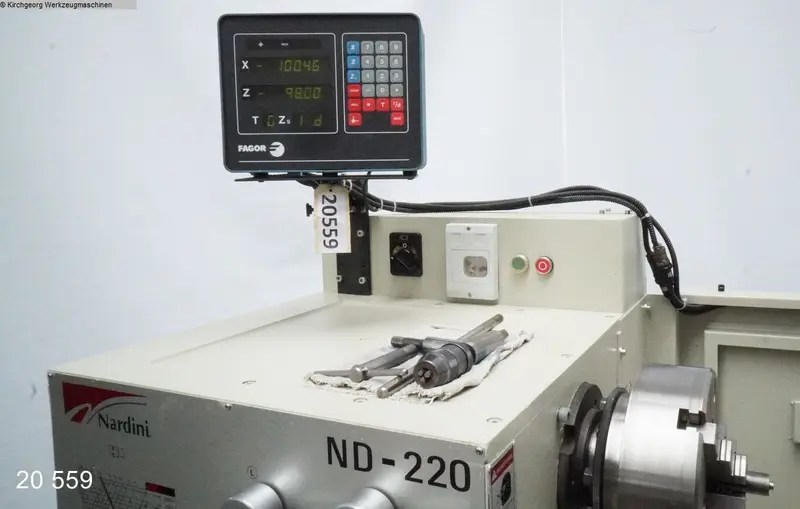

| Digital readout equipment (DRO) | FAGOR 3 Achsen |
| Spindle drive power | 6,3 kW |

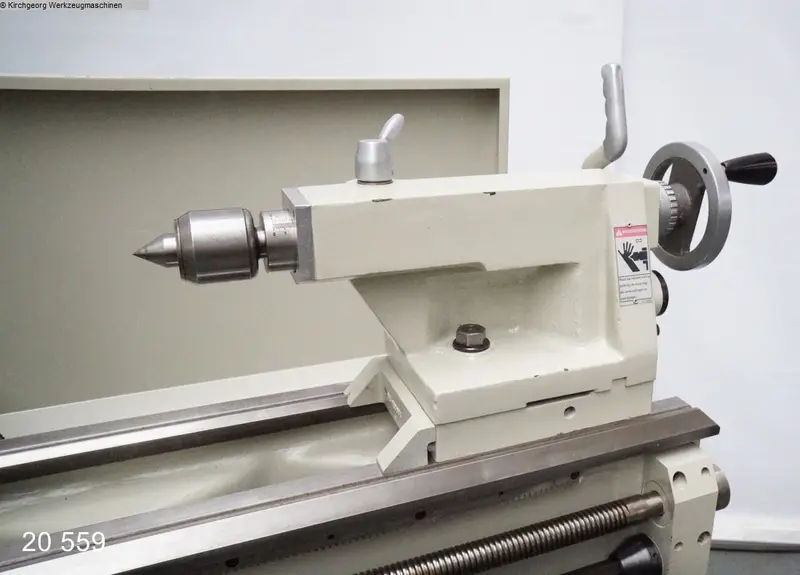

| Tailstock sleeve taper | MK 4 |
| Three-jaw chuck | 250 mm |
| Tool quick-change device | KLOPFER Typ GX2B |
| Height of centers over bed | 220 mm |
| Spindle opening | Ø 52 mm |
| Delivery period | sofort |
| Price | Auf Anfrage |
