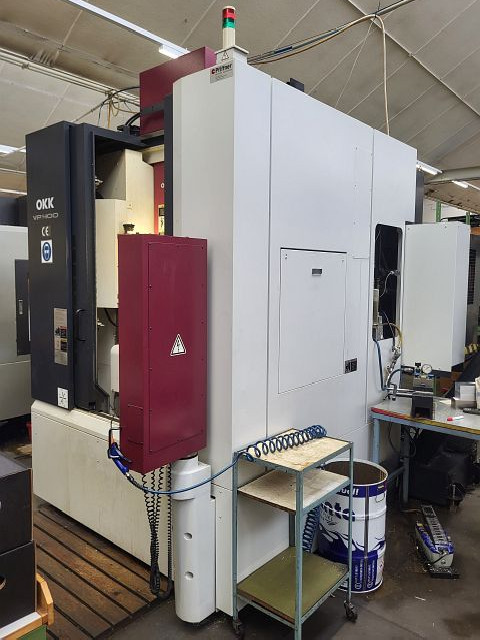

Machining Center - Vertical OKK VP 400

"Machining Center - Vertical OKK VP 400, Year of manifacturing 2007"

InsertionNo. # P0223245
Machine type: Machining Center - Vertical
Manufacturer: OKK
Year of manifacturing: 2007
Type: VP 400
Condition: used
Attended time: h
Number of reference: p224225
  • ID: P0223245
  • 160
  • 2025-02-24
  • Price
  • on request
Sent request


  • ProdEq Trading GmbH

  • Herr Dr. Frank Goedicke
  • info@prodeq.ch, Switzerland

  • Sent request
CONTROLS

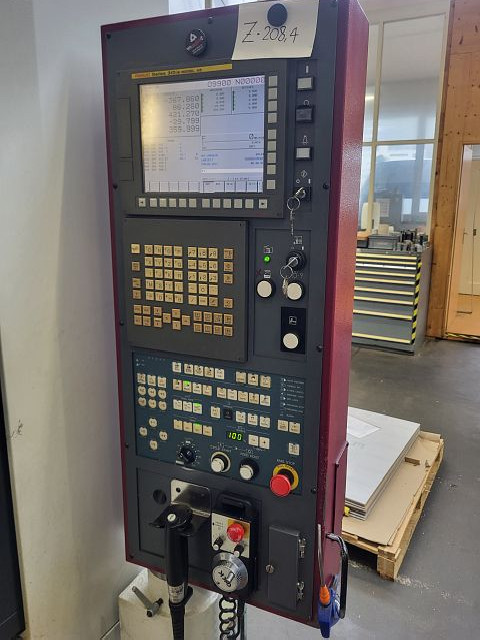

  CNC controls FANUC 310 IS

WORKING RANGE -CUBIC-
  X-axis travel: 600 mm
  Y-axis travel: 410 mm
  Z-axis travel: 460 mm
  rotating range A-axis from: -30 °
  rotating range A-axis up to: 120 °

TABLE

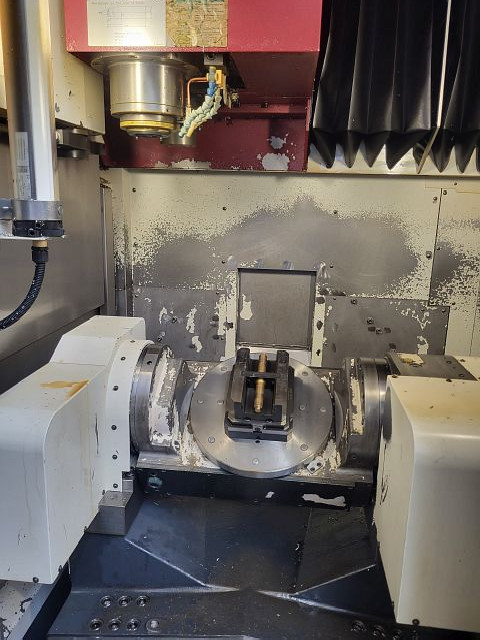

  clamping surface diameter: 350 mm

SPINDLE / HEAD
  spindle revolutions (max): 12000 /min
  drive power: 18 kW

AXIS DRIVES
  rapid traverse: 4800 mm/min

TOOL MAGAZINE

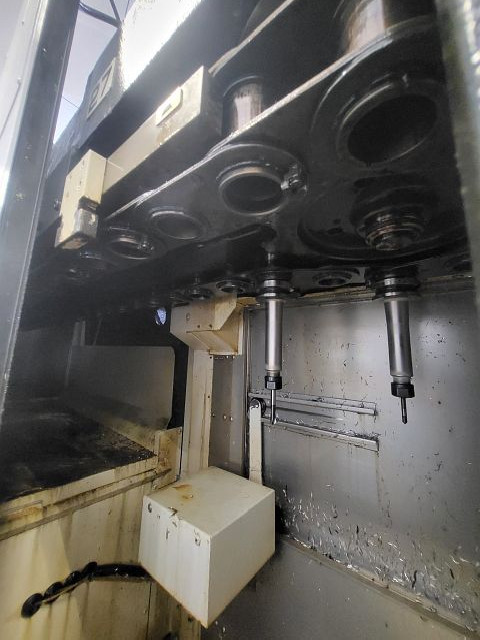

  number of positions: 30

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 3000 mm
  space requirements -front/back-: 2400 mm
  total height: 1980 mm
  total weight approx.: 7500 kg
