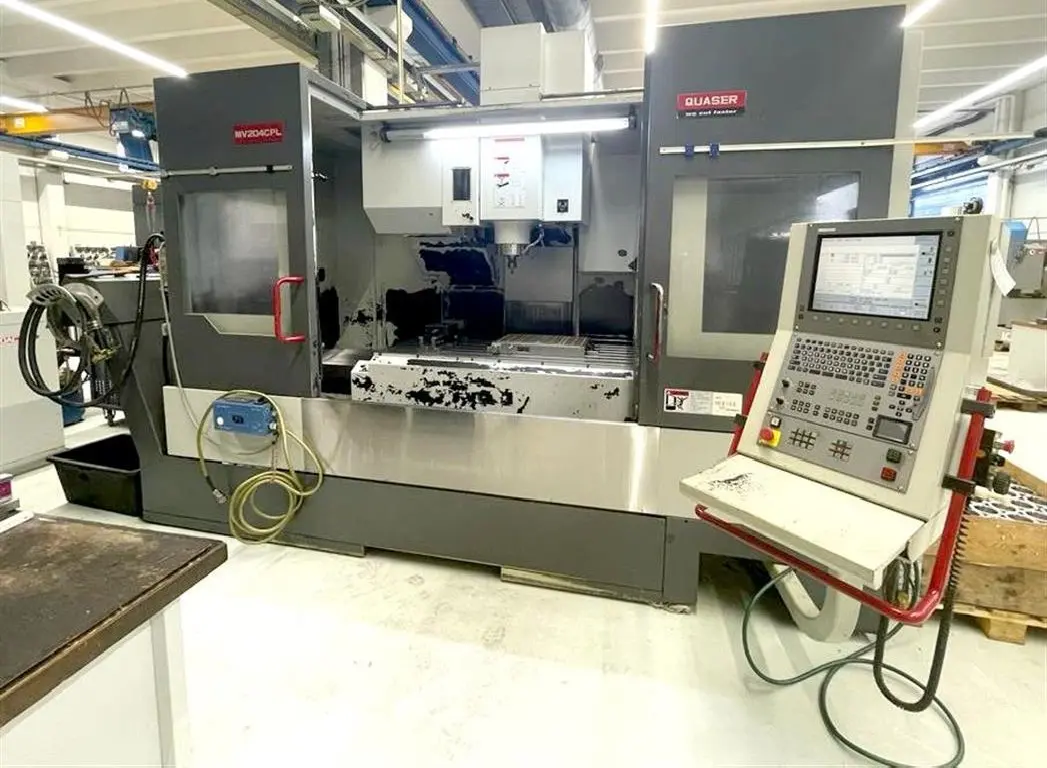

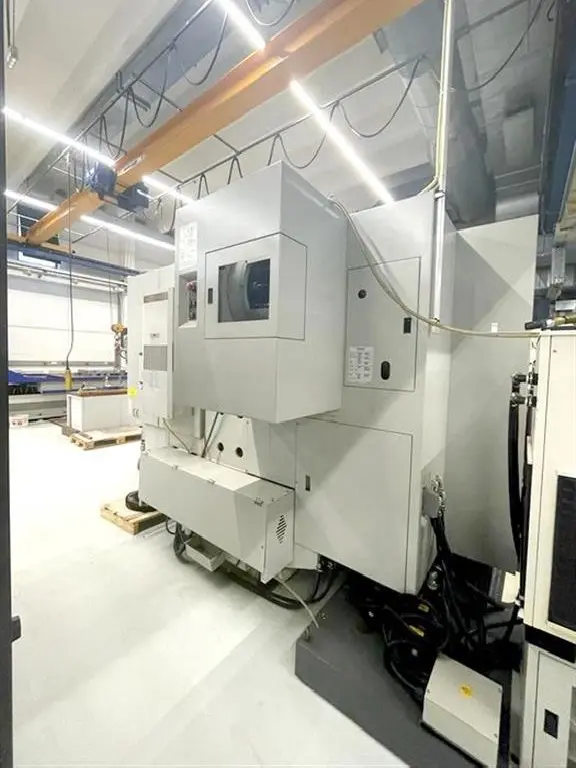

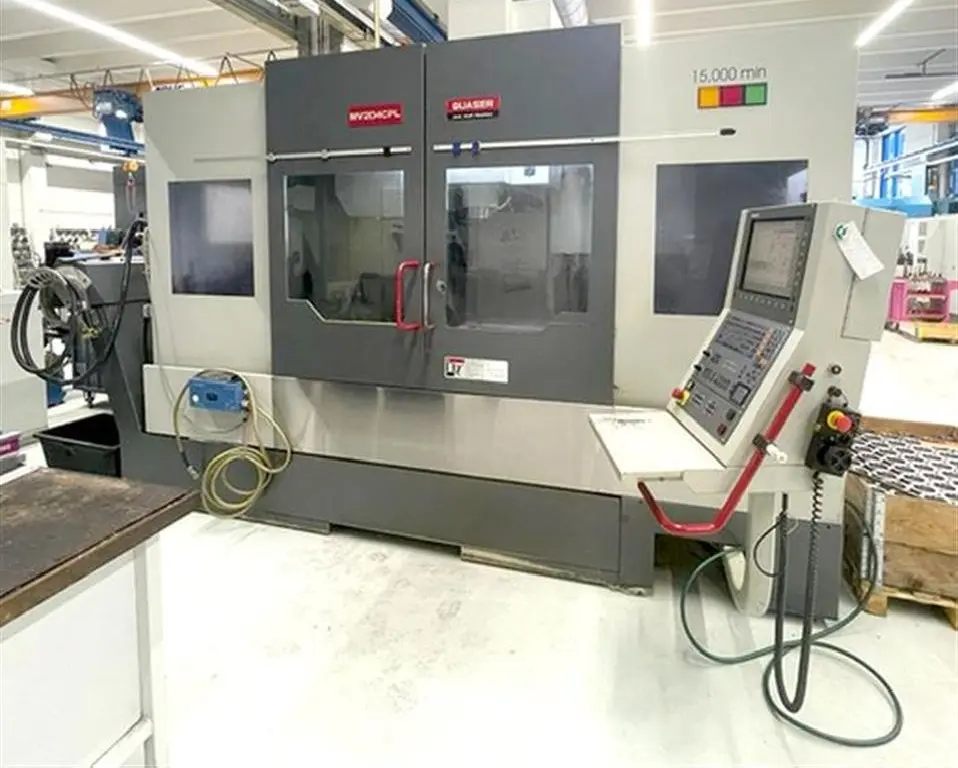

| Machine type: | Machining Center - Vertical |
| Manufacturer: | QUASER |
| Year of manifacturing: | 2006 |
| Type: | MV 204 CPL/15 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p196306 |

| Make | QUASER |
| Type of machine | MV 204 CPL/15 |
| Year of manufacture | 2006 |

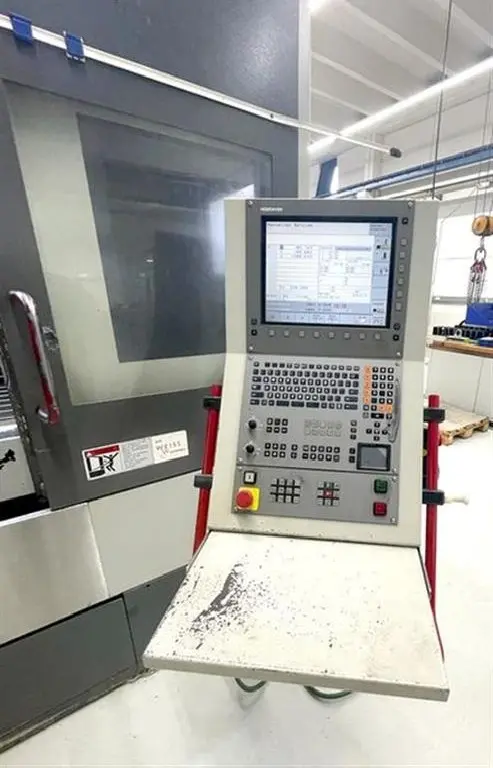

| Control system | HEIDENHAIN iTNC 530 |
| Tool holder | SK 40 |
| spindle motor | 25 kW |
| x-travel | 1.500 mm |
| y-travel | 700 mm |
| z-travel | 610 mm |
| max. Table load | 700 kg |
| Control | CNC (HEIDENHAIN iTNC 530) |
| Machine's weight | 9,1 t |
| Overall dimensions | 3,7 x 2,65 x 2,9 m |
| Spindle turning speed - stepless | 15000 1/min |
| Internal coolant supply | 20 bar, |
| Drive total power | 30 kVA |
| Price | ![]() |
