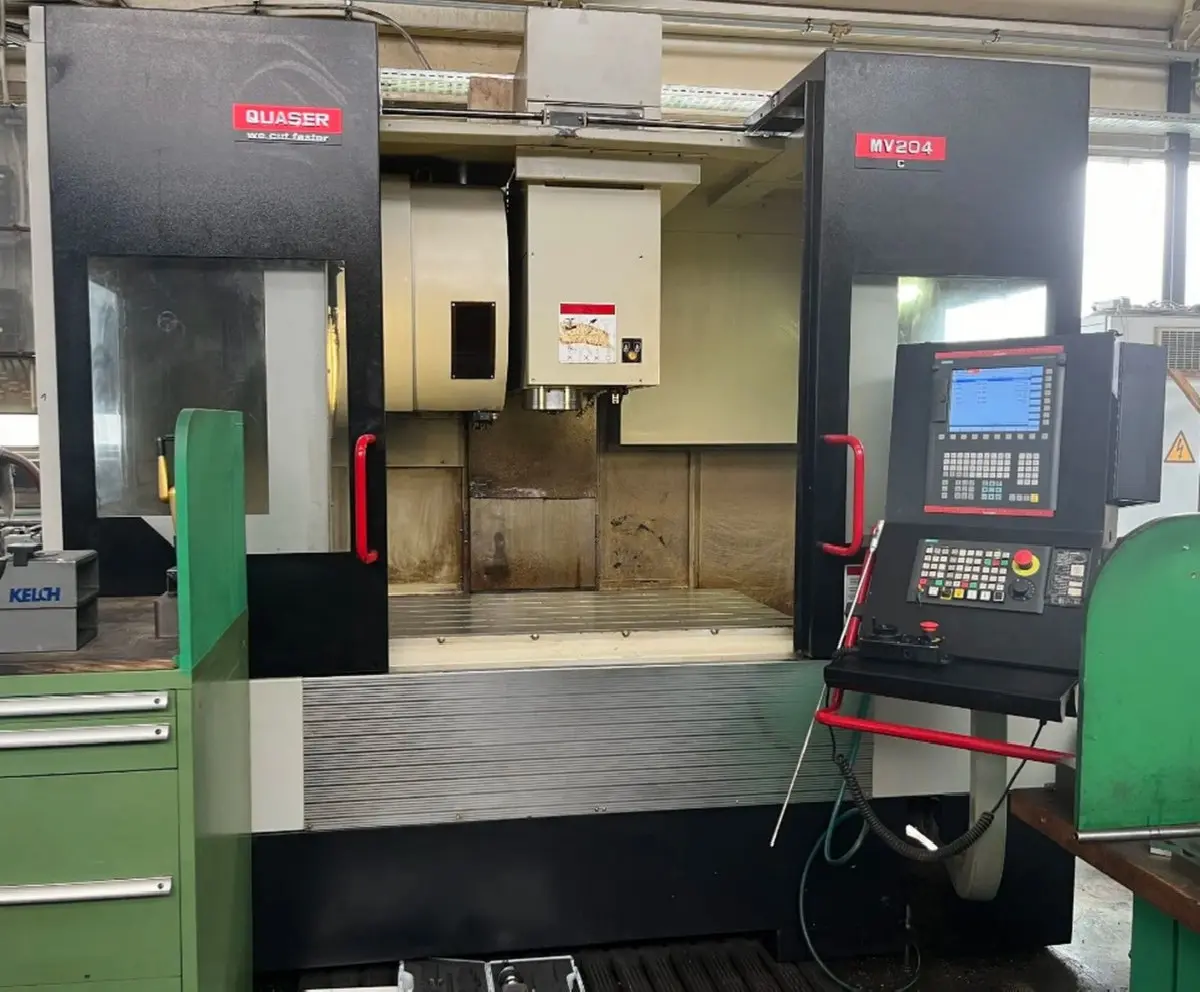

| Make | QUASER |
| Type of machine | MV 204C |
| Year of manufacture | 2013 |

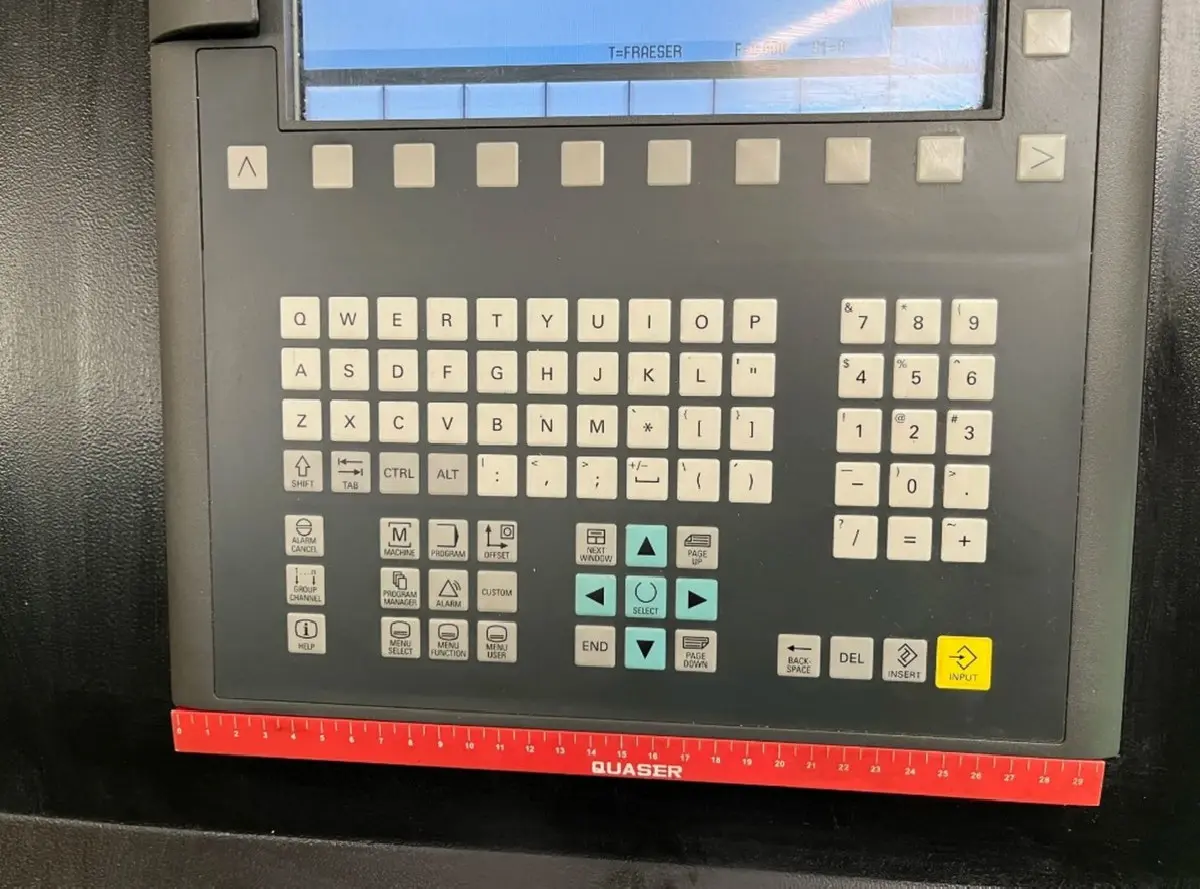

| Control system | Sinumerik 828D |
| x-travel | 1270 mm |
| y-travel | 700 mm |
| z-travel | 610 mm |
| Total power requirement | kW |
| Control | CNC |
| Machine's weight | t |
| Chip removal device |  |
| Overall dimensions | m |
| Internal coolant supply |  |
| Delivery period | sofort |
| Price | Auf Anfrage |
| , Zubehör und Beschreibung der Maschine sind unverbindlich - |
Maschinenart: Bearbeitungszentrum - Vertikal
30-fach Werkzeugwechsler

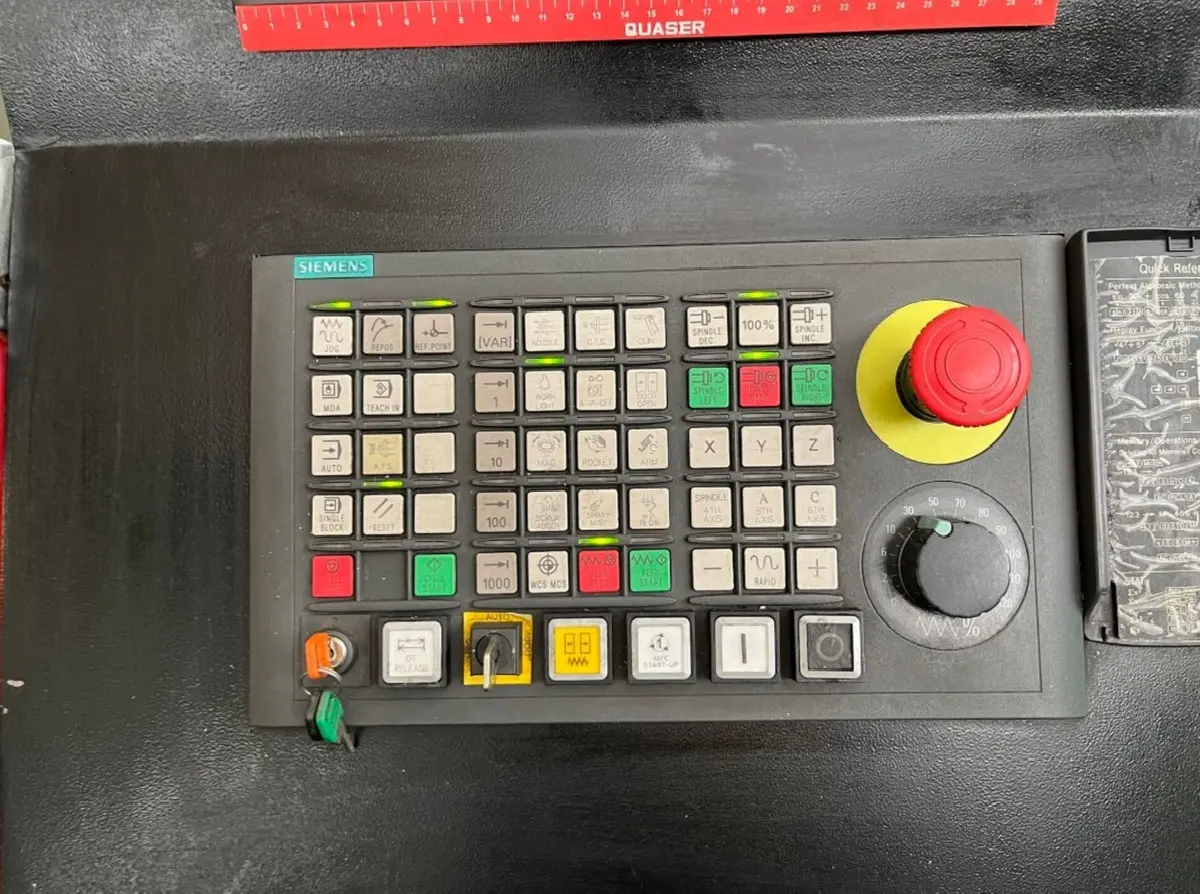

el. Handrad
Technische Daten / technical details:
X-Weg / X-travel 1270 mm
Y-Weg / Y-travel 700 mm
Z-Weg / Z-travel 610 mm
Spindelaufnahme / spindle taper SK40
Drehzahl / spindle speed 10000 UpM / rpm

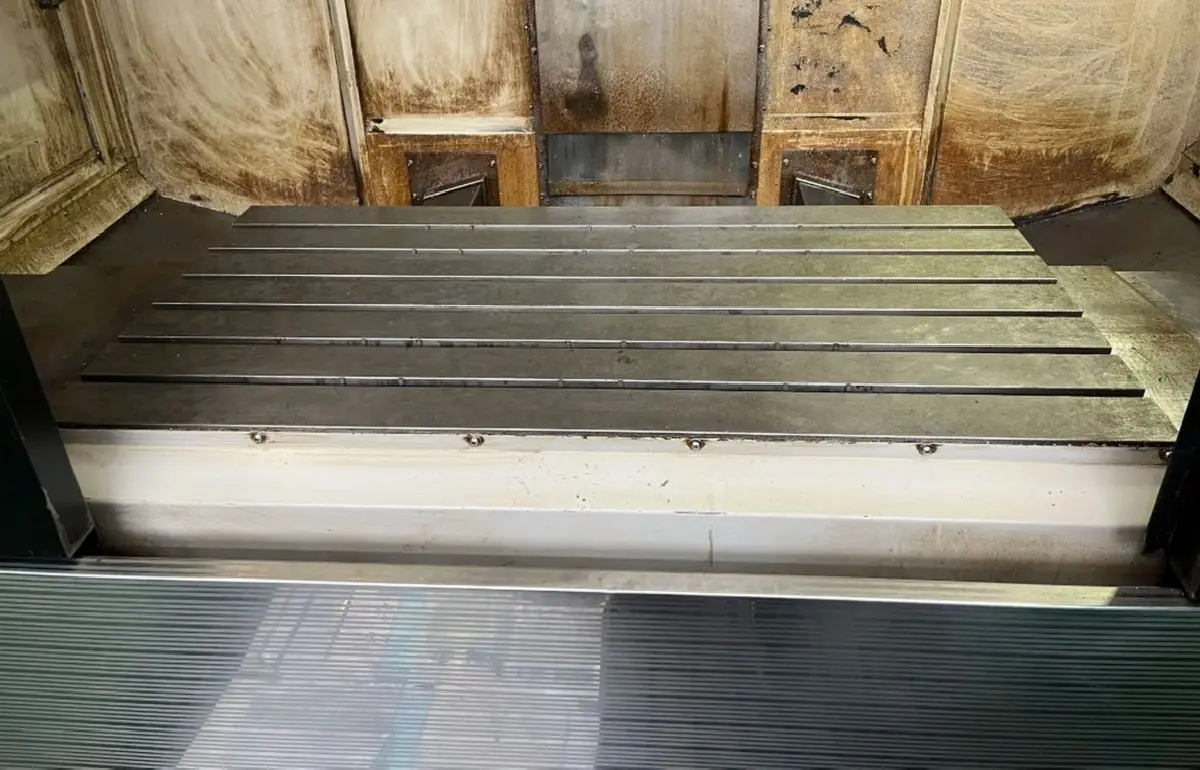

Tischaufspannfläche / table clamping area 1400x700 mm
Eilgang x,y,z / rapid feed x,y,z 24,24,16 m/min
Werkzeugwechselmagazinplätze / number of places in tool changer 30
Gewicht ca. / weight ca. 9500 kg
Technical data, accessories and description of the machine are not binding.
