| Machine type: | Gear grinding machines butts |
| Manufacturer: | REISHAUER |
| Year of manifacturing: | 2012 |
| Type: | RZ 410/550 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p222309 |
| Make | REISHAUER |
| Type of machine | RZ 410/550 |
| Year of manufacture | 2012 |

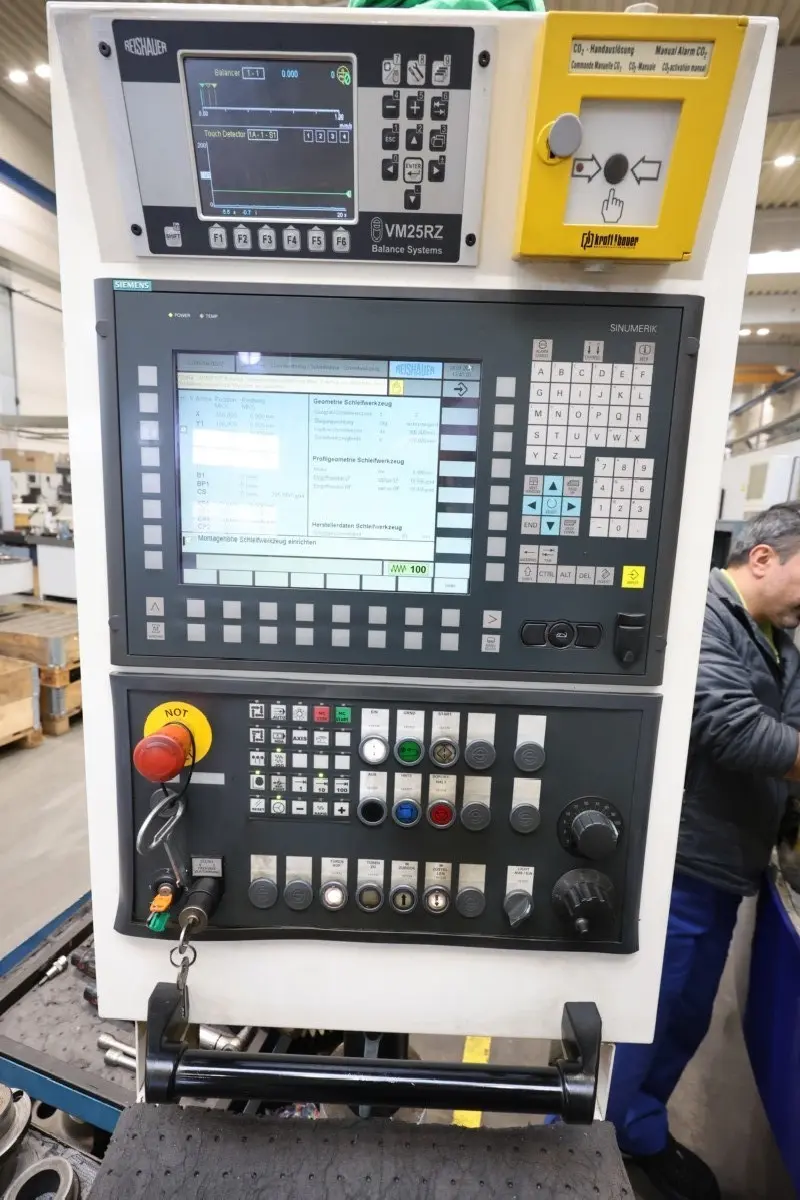

| Control system | Sinumerik 840 D |
| Operational weight | 12,5 t |
| Max. workpiece weight | max. 300 kg |
| Control | CNC |
| Wheel width | 300 mm |
| Rapid X - axis | 15 m/min |
| Rapid Y - axis | 5 m/min |
| Rapid Z - axis | 5 m/min |
| Grinding wheel diameter | 205 - 300 mm |
| Grinding wheel width | max. 125 mm |
| Opening diameter | 160 H7 mm |
| X-travel | 490 mm |
| Z-travel | 300 mm |
| Number of teeth | 5 - 999 |
| - | 14 - 30 ° |
| Delivery period | sofort |
| Y-axis | 220 mm |
| Price | Auf Anfrage |
