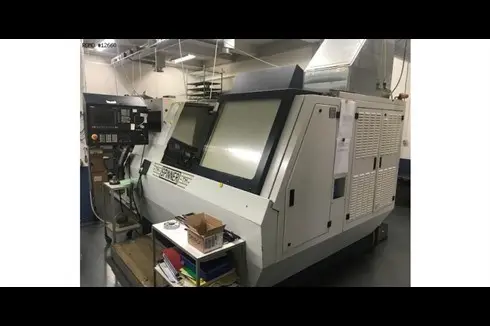

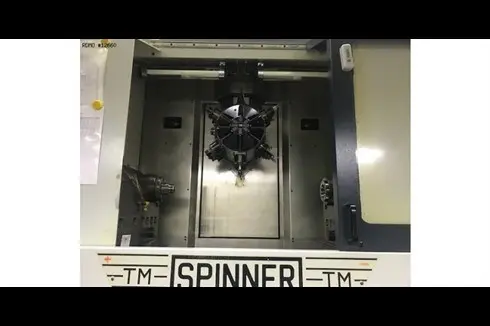

Lathes Spinner TM C-Achse, Year of manifacturing 2001

"Lathes Spinner TM C-Achse, Year of manifacturing 2001"

InsertionNo. # P0153345
Machine type: Lathes
Manufacturer: SPINNER
Year of manifacturing: 2001
Type: TM
Condition: used
Attended time: h
Number of reference: p154126
  • ID: P0153345
  • 1028
  • 2021-02-13
  • Price
  • on request


MakeSpinner
Type of machineTM
Year of manufacture2001
Cutting diameter mm
Turning length mm
Motor power HP/kW
Spindle opening mm
Price€ 000

TECHNISCHE DATEN
Anzahl von Spindeln : 2
Anzahl der Achsen : 7
Anzahl von Revolverköpfe : 1
HAUPTSPINDEL
Spindelantriebleistung : 15 [kW]
Spindeldrehzahl : 6000 [Upm]
Max. Stangendurchmesser : 42 [mm]
Minimum Auflösung C-Achse : 0.001 [Grad]
Verfahrweg Z : 475 [mm]
GEGENSPINDEL
Spindelantriebleistung
Spindeldrehzahl : 6000 [Upm]
Max. Stangendurchmesser : 42 [mm]
Minimum Auflösung C-Achse : 0.001 [Grad]
Verfahrweg Z : 475 [mm]

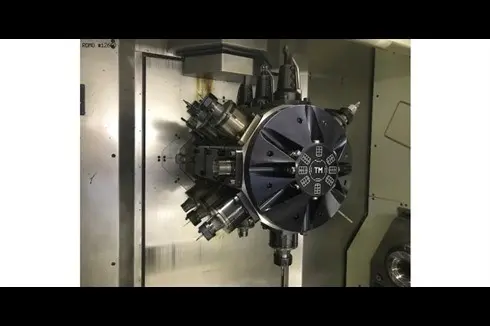

REVOLVERKOPF
Positionen Anzahl : 24
Anzahl von motorisierte Positionen : 18
Verfahrweg X : 400 [mm]
Y Hub : 300 [mm]
Angetriebene Werkzeuge Geschwindigkeit : 9000 [Upm]
Angetriebene Werkzeuge Leistung : 2.3 [kW]
Hub Achse B : 360 [Grad]
Minimum Auflösung : 0.001 [Grad]
ELEKTRISCHE VERSORGUNG
Gesamtantrieb : 35 [kW]
GEWICHT UND ABMESSUNGEN
Platzbedarf : 2900 x 3300 [mm]
Maschinenhöhe : 2300 [mm]
Maschinengewicht : 7500 [kg]
MASCHINENSTUNDEN
Stunden unter Strom : 29731 [bst.]
Betriebsstunden : 4500 [bst.]
ZUBEHOR

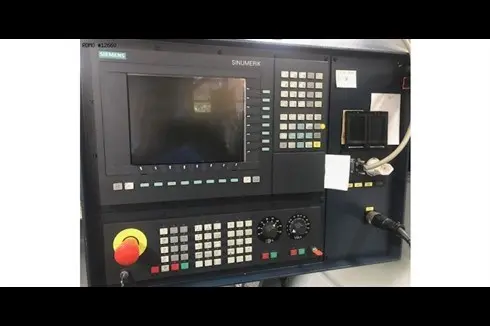

Steuerung : Siemens 840D
Elektronisches Handrad
Kühlmitteltank

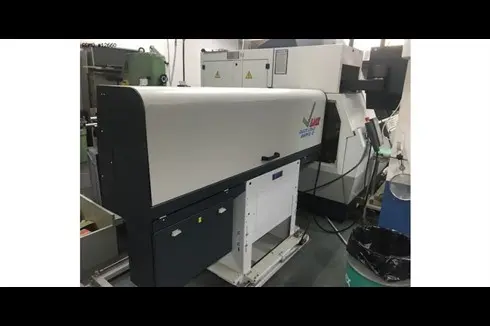

Stangemagazin : LNS quick load servo II
Anzahl der angetriebene Werkzeughalter : 15
Anzahl der feste Werkzeughalter : 14
Zangenfutter
