| Make | STAR Micronics |
| Year of manufacture | 2007 |
| Rapid feed | ca. 24–30 m/min |
| Speed range | bis ca. 6.000–8.000 min?¹ |
| Capacity | ca. 3,7–5,5 kW |
| Operating time | 46066 |
| Turning length | 205 mm |
| Switch-on time | 27700 |
| Main spindle |  |
| Counter spindle | |
| Condition | Gebraucht |
Standort: Deutschland, Baden-Württemberg Südwest
CNC-Langdrehmaschine STAR SR20RII, Bj. 2007
Maschinentyp: CNC-Langdrehmaschine (Swiss-Type)
Steuerung, Fanuc, Serie 18i-TB,
Max. Drehdurchmesser: Ø 20 mm (Optional bis 22mm)
C-Achse
C-Achse
Achsen:
X1 / Z1 / Y1 (Hauptbearbeitung)
X2 / Z2 (Gegenspindel)
Abmessungen der Maschine 2400x1205x1700 mm
Gewicht der Maschine 2200 kg
Lademagazin FMB IEMCA BOSS 332E
Feuerlöschanlage
Die Maschine kann nach Terminvereinbarung Strom besichtigt werden.
Aenderungen und Irrtuemer in den technischen Daten und Angaben sowie Zwischenverkauf vorbehalten
STAR SR20RII CNC swiss-type lathe, built in 2007
Machine type: CNC lathe (Swiss-type)

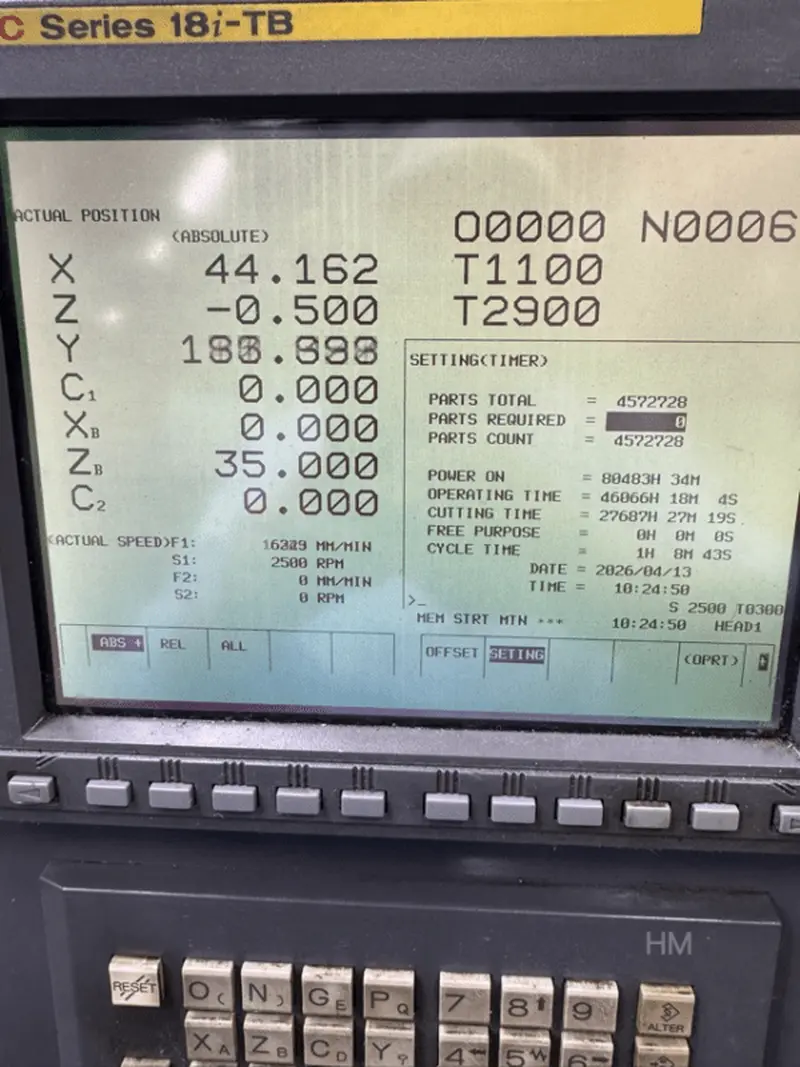

Control system: Fanuc, 18i-TB series,
Hours since first use: 27,700
Total operating hours: 46,066
Max. turning diameter: Ø 20 mm (optional up to 22 mm)
Turning length: 205 mm
Main spindle:
Speed: up to approx. 10,000–12,000 rpm
Power: approx. 3.7–5.5 kW
C-axis
Counter spindle:
Speed: up to approx. 6,000–8,000 rpm
C-axis
Axes:
X1 / Z1 / Y1 (main machining)
X2 / Z2 (sub-spindle)
Rapid traverse: approx. 24–30 m/min
Machine dimensions 2400x1205x1700 mm
Machine weight 2200 kg

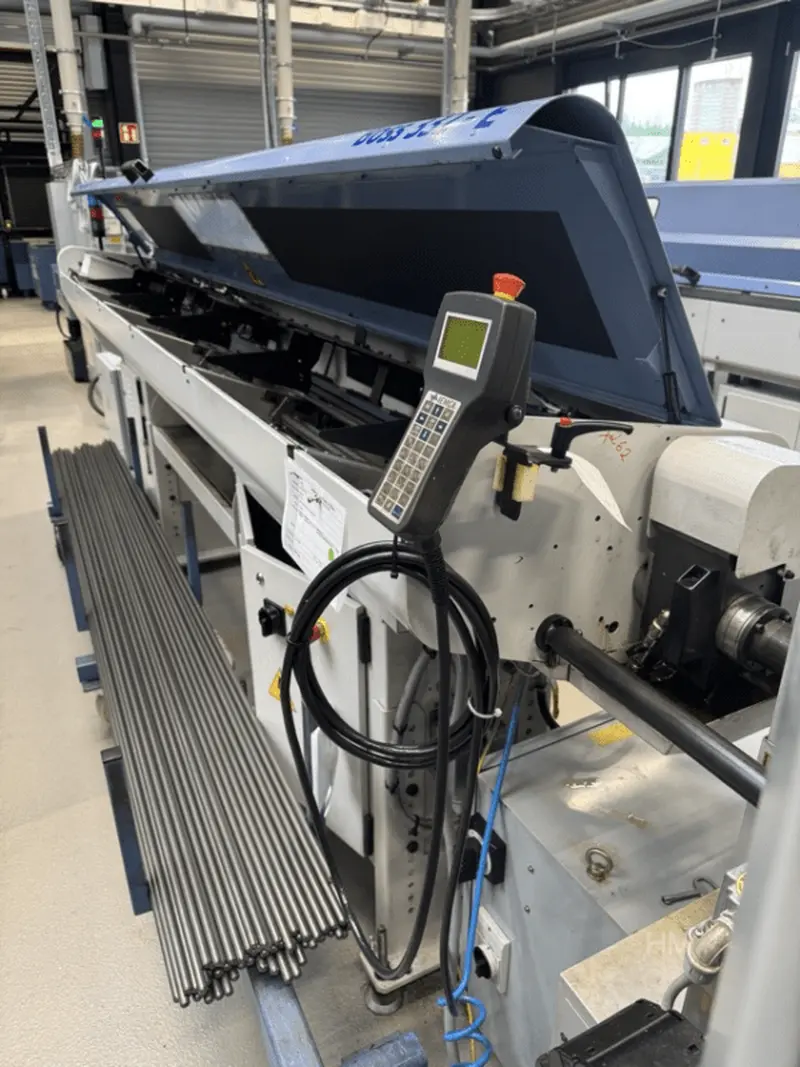

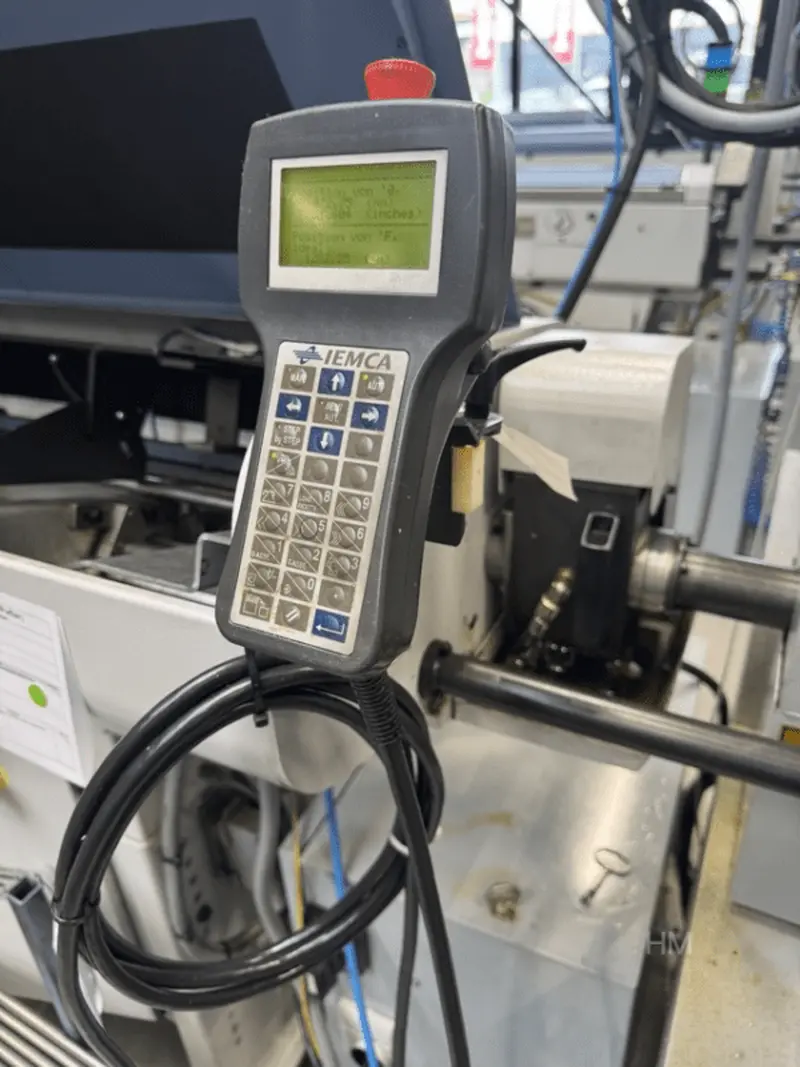

FMB IEMCA BOSS 332E loading magazine

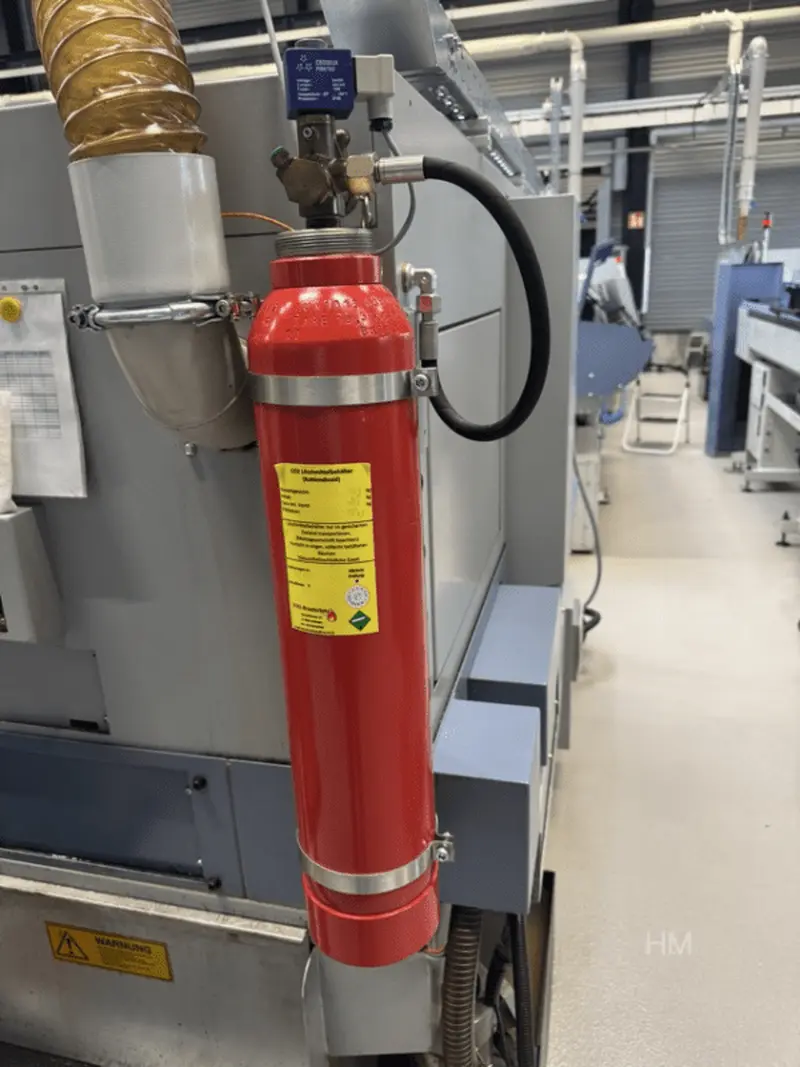

Fire extinguishing system
The machine can be viewed by appointment.
We reserve the right to make changes to the technical data and specifications, and to sell the item in the meantime.
