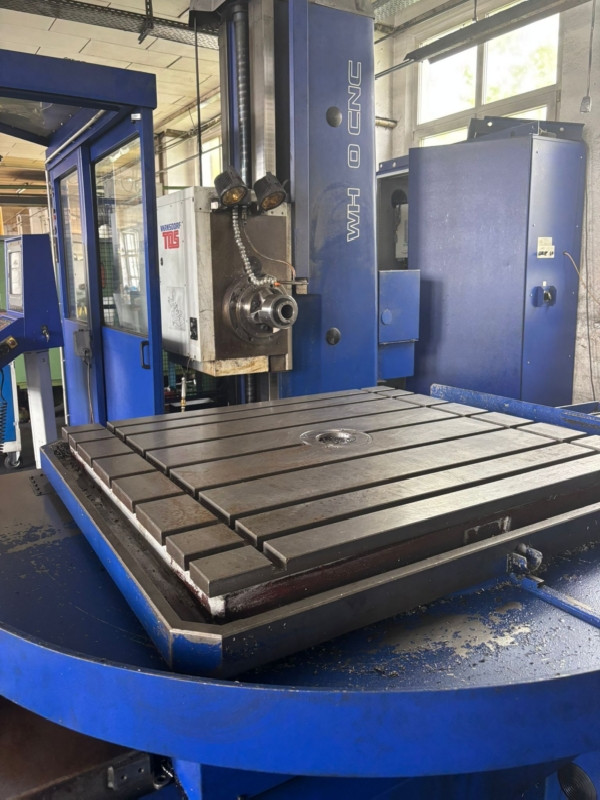

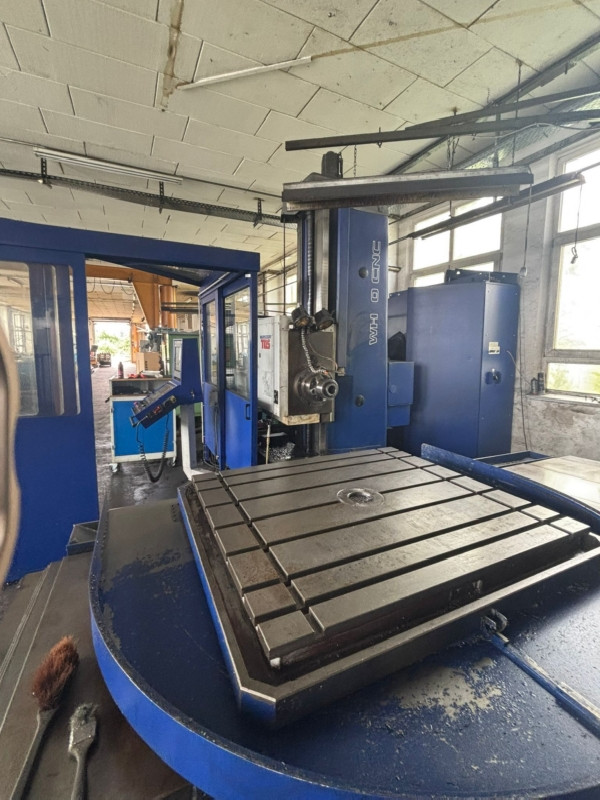

| Machine type: | Horizontal Boring Machine |
| Manufacturer: | TOS-VARNSDORF |
| Year of manifacturing: | 2016 |
| Type: | WH 10 CNC |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p229446 |
| Make | TOS-VARNSDORF |
| Type of machine | WH 10 CNC |
| Year of manufacture | 2016 |
| Control system | Heidenhain TNC 530 |
| Tool holder | ISO 50 |
| spindel speed | 10 - 2500 U/min |
| x-travel | 1250 mm |
| y-travel | 1100 mm |
| Table area | 1120 x 1000 mm |
| max. Table load | 3000 kg |
| Total power requirement | 70 kVA |
| Feeds - smooth | 4 - 6000 mm/min |
| Control | CNC |
| Machine's weight | 13 t |
| Cooling system | extern |
| Spindle diameter | 100 mm |
| Overall dimensions | 4,5 x 3 x 4 m |
| Spindle drive | 18,5 / 22 kW |
| Z-travel | 1000 mm |
| W - axis (spindle longitudinal) | 630 mm |
| Delivery period | kurzfristig-nach Vereinbarung |
| Price | Auf Anfrage |
