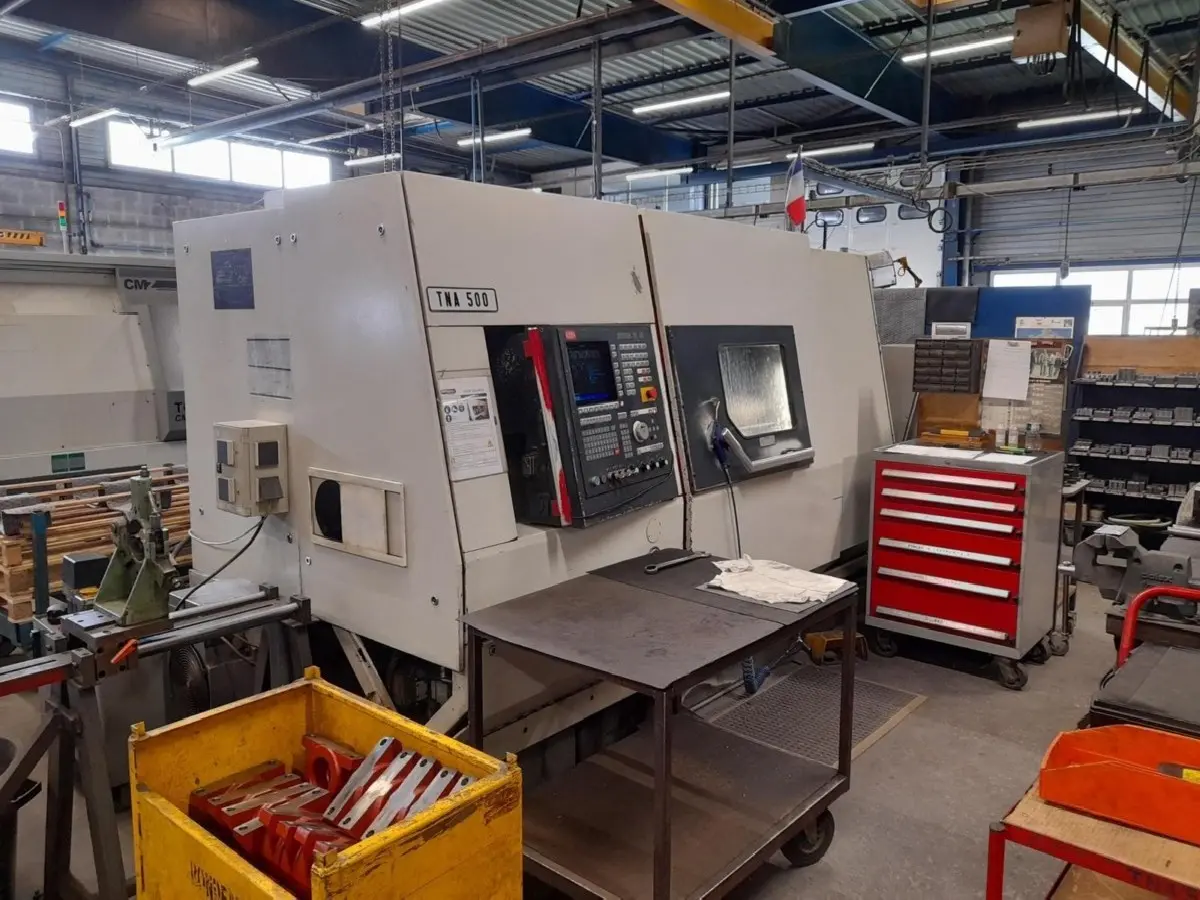

| Machine type: | CNC Turning and Milling Machine |
| Manufacturer: | TRAUB |
| Year of manifacturing: | 1997 |
| Type: | TNA 500 |
| Condition: | used |

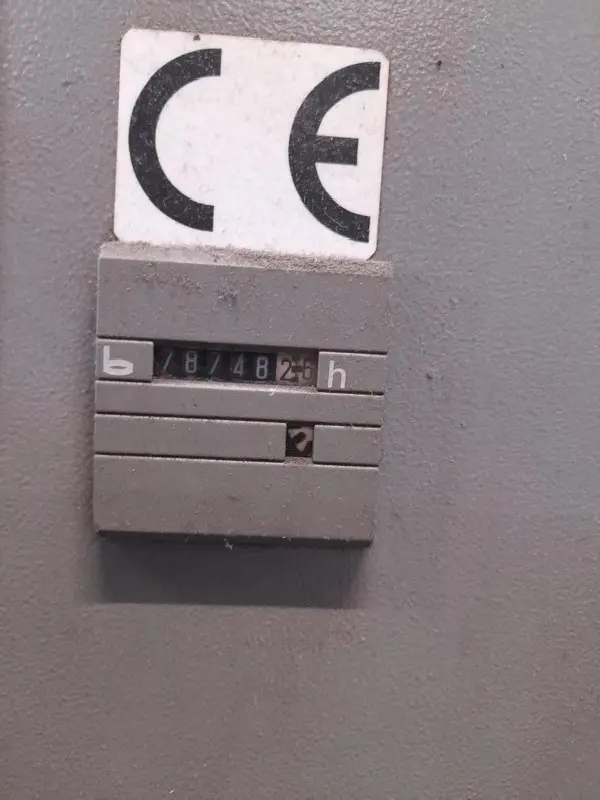

| Attended time: | h |
| Number of reference: | p161560 |
| Make | TRAUB |
| Type of machine | TNA 500 |
| Year of manufacture | 1997 |

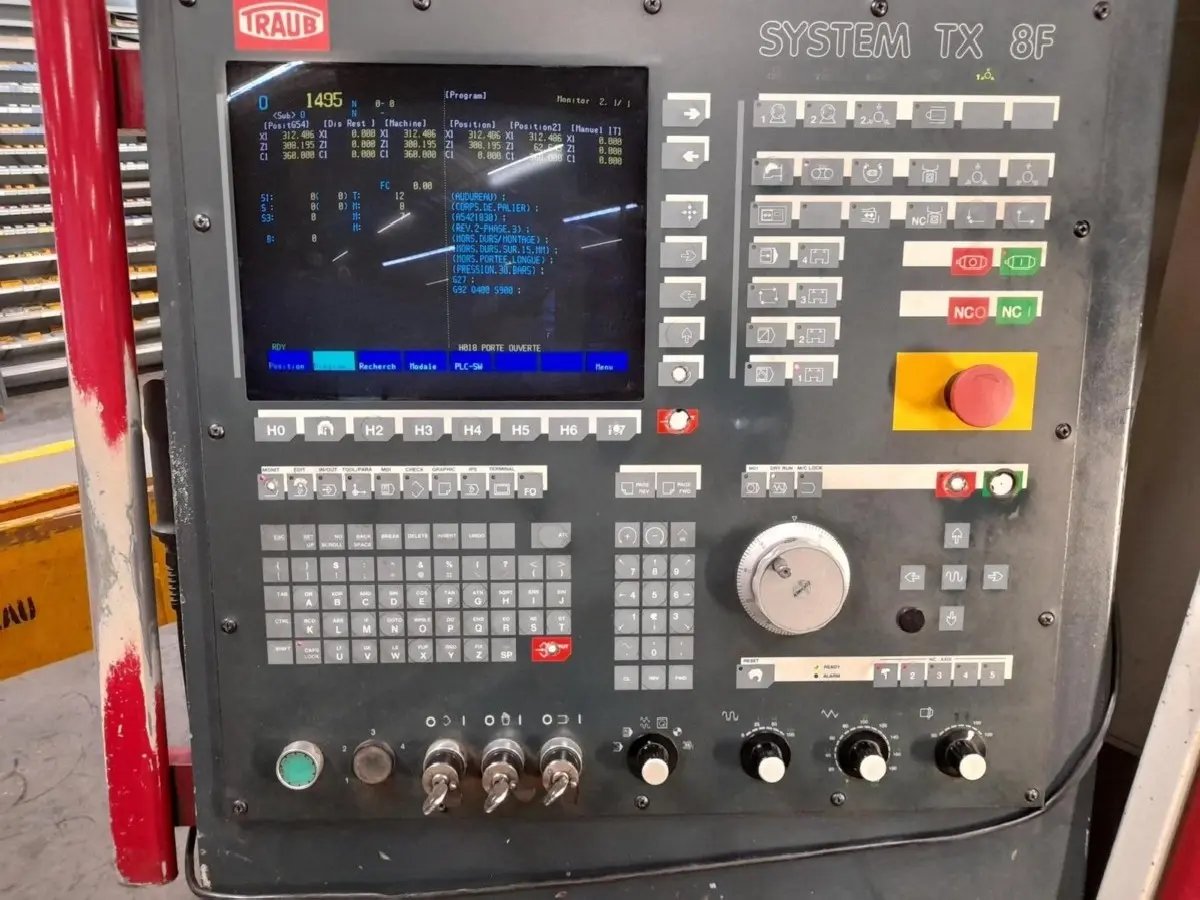

| Control system | TX 8F; Dreibackenfutter dia 350 Reitstock; |
| Tool holder | Ø40 |
| spindle motor | 31 kW |
| X-axis feed | 1 - 20.000 mm/min |
| Z-axis feed | 12500 N |
| Swing over bed | 680 mm |
| Total power requirement | 54 kW |
| Cutting diameter | 680 mm |
| Control | CNC |
| Machine's weight | 7 t |
| Turning length | 1000 mm |
| Number of tools | 12 |
| Overall dimensions | 4.3 X 2.3 X 2.2 m |
| Swing over saddle | 445 mm |
| Tailstock sleeve diameter | 100 mm |
| Tailstock sleeve travel | 100 mm |
| Diameter of spindle bore | 80 mm |
| Rapid X - axis | 20 m/min |
| Rapid Z - axis | 20 m/min |
| Spindle turning speed - stepless | 2800 U/min |
| Tailstock sleeve clamp | 6 |
| Spindle snout opening diameter | 160 mm |
| X-travel | 320 mm |
| Z-travel | 1050 mm |
| Torque | 769 Nm |
| Delivery period | versandbereit |
| - | 1,6 sec |
| Price | Auf Anfrage |
