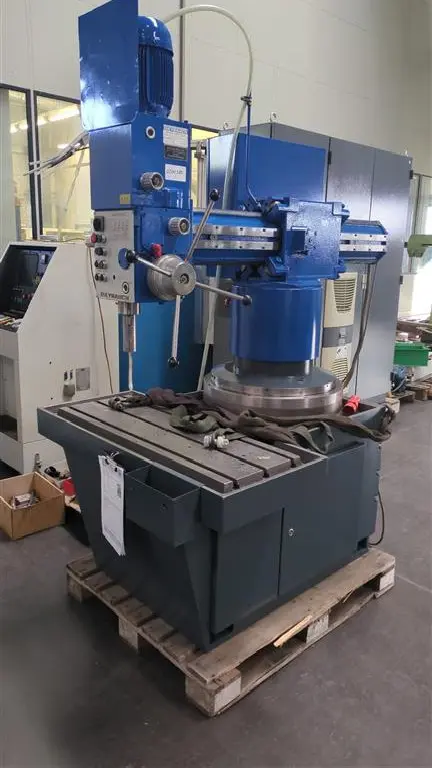

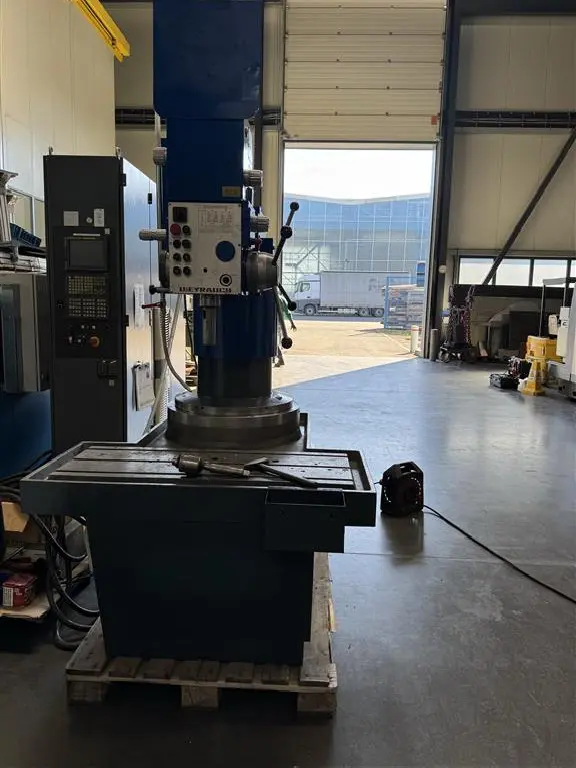

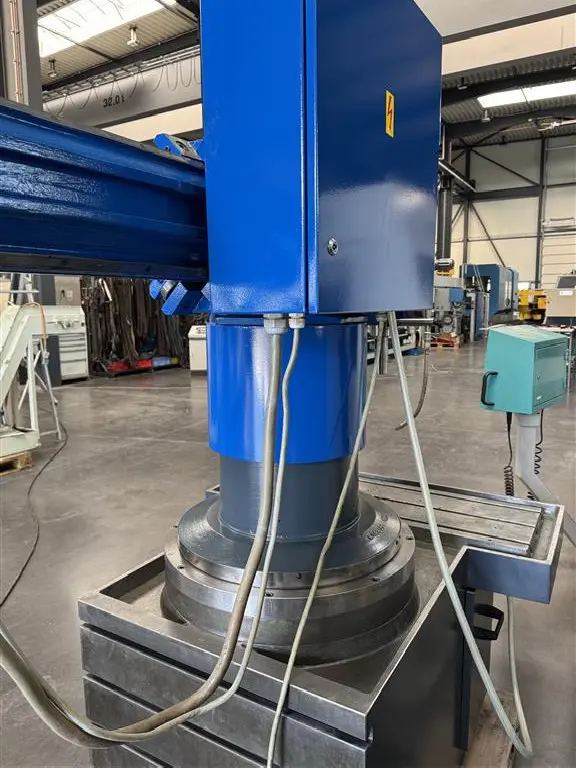

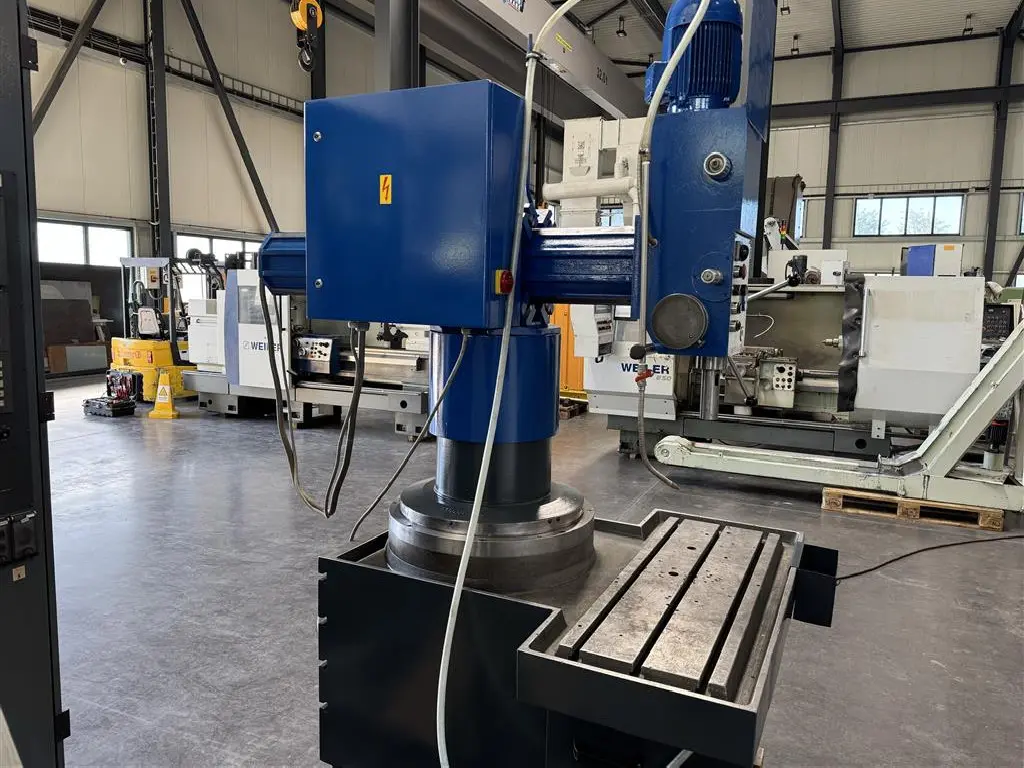

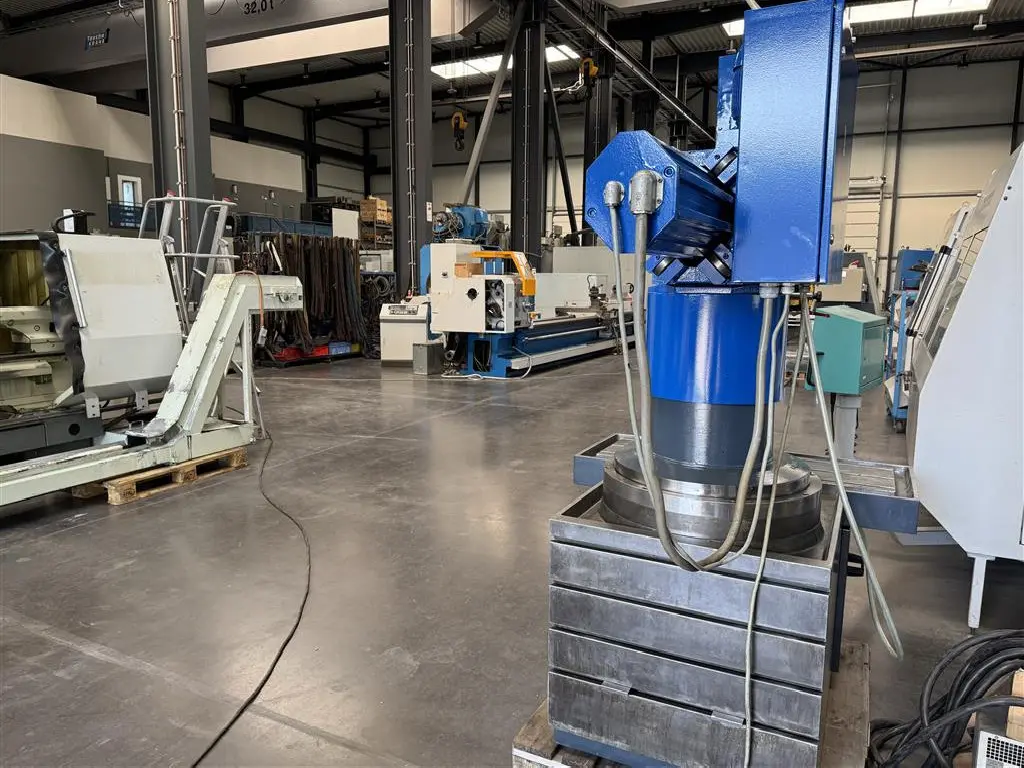

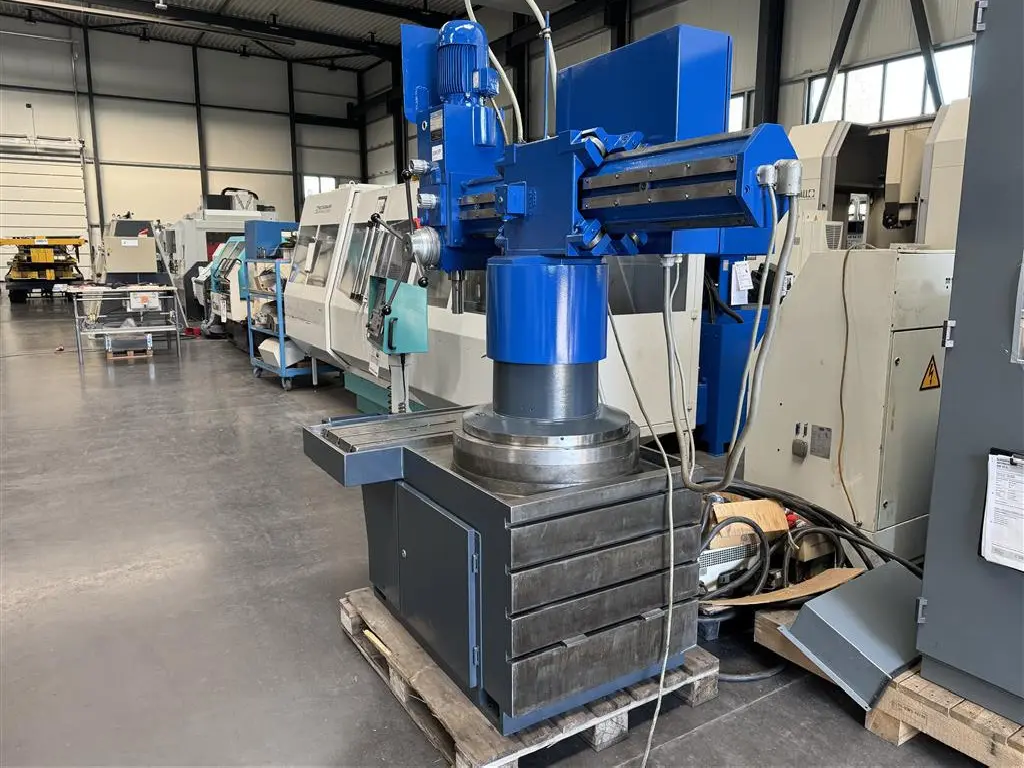

| Machine type: | Highspeed radial drilling machines |
| Manufacturer: | WEYRAUCH |
| Year of manifacturing: | 1976 |
| Type: | SW 32 G |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p227616 |
| Make | WEYRAUCH |
| Type of machine | SW 32 G |
| Year of manufacture | 1976 |
| Total power requirement | 2,4 kW |
| Spindle lock | 4 |
| Dimensions L x W x H | 1,3 x 1,3 x 2,25 m |
| Control | konventionell |
| Machine's weight | 1,8 t |
| Sweep | Spindel: min./max: ca. 400 / 1250 mm |
| Drilling diameter (in steel) | 32 mm |
| Outrigger vertical adjustment | 850 mm |
| Spindle edge/table distance | min./max.: 350 / 800 mm |
| Boring spindle travel | 150 mm |
| Grinding spindle speed range | 100 - 2000 U/min |
| Vertical adjustable boring head | 400 mm |
| Outrigger horizontal adjustment | 400 mm |
| Price |  |
