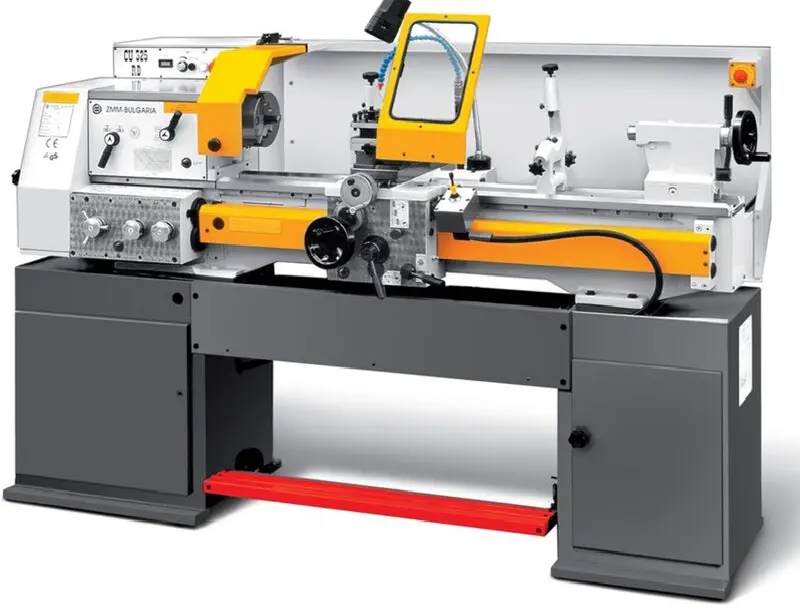

Machine type: | Screw-cutting lathe |
Manufacturer: | ZMM |
Type: | CU 325 RD |
Condition: | neu |
Attended time: | h |
Number of reference: | p187415 |
Make | ZMM |
Type of machine | CU 325 RD |
distance between centres | 750 mm |
Center height | 165 mm |
Bed width | 200 mm |
Operational weight | 770 kg |
Control | konventionell |
Turning length | 1.000 mm |
Spindle taper | 4,5 M |
Cooling system | |
Tailstock | mit Schnellklemmung |
Tailstock sleeve diameter | 40 mm |
Tailstock clamp/taper | 3 MK |
Machining diameter over bed | 400 mm |
Spindle turning speed - stepless | 85-405; 470-2200 U/Min |
Sleeve travel | 100 mm |
Operating manual | |
Motor power | 2.2 kW |
Three-jaw chuck | Bison 3204/DIN6350, Ø 160 mm |
Tool quick-change device | Amestra, System wie Multifix inkl. 4 Halter (3x Rechteck, 1 Rund) |
Machining diameter over cross carriage/ saddle | 190 mm |
Cross feed | 0.003 - 0.885 mm/U |
Drive | über variables Getriebe (2 Stufen) |
Longitudinal feed | 0.006 - 1.77 mm/U |
Spindle opening | 32 mm |
Delivery period | |
Price | 23160 € |
5 | |
48 | |
150 mm | |
95 mm |
