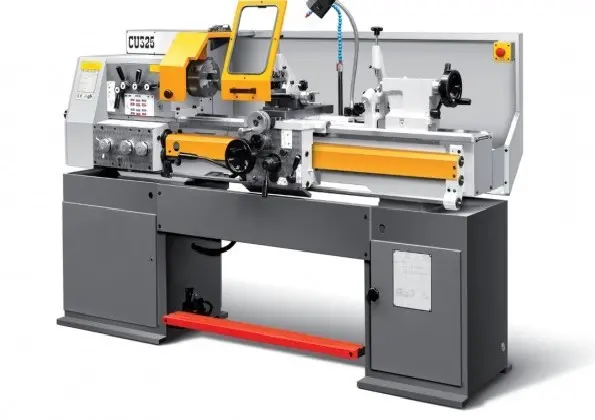

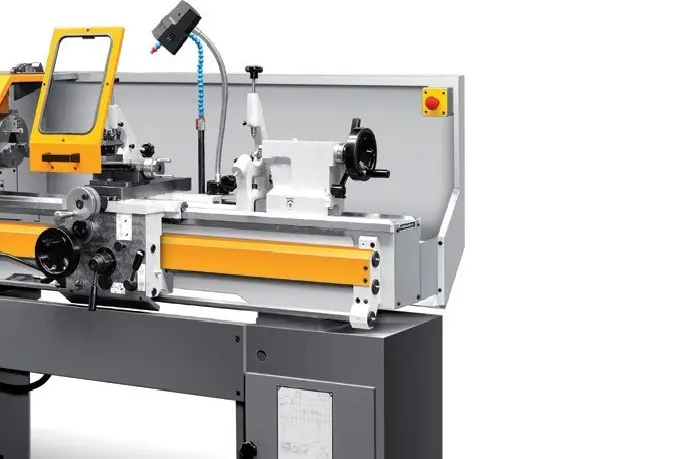

| Machine type: | Screw-cutting lathe |
| Manufacturer: | ZMM |
| Year of manifacturing: | 2021 |
| Type: | CU 325 x 1000 |
| Condition: | used |
| Attended time: | h |
| Number of reference: | p153622 |
| Make | ZMM |
| Type of machine | CU 325 x 1000 |
| Year of manufacture | 2021 |
| spindel speed | (12) 85 - 2000 U/min |
| Bed width | 200 mm |
| Total power requirement | 2,2 kW |
| Sleeve travel | 100 mm |
| Control | konventionell |
| Machine's weight | 770 kg |
| Turning length | 500, 750, 1000 mm |
| Regular cross feed | 0,003 - 0,888 mm |
| Machining diameter over bed | 325 mm |
| Turning diameter over saddle | 190 mm |
| Turning diameter over gap block | 440 mm |
| Metric thread | (48) 0,1 -28 mm |
| Whitworth thread | (19) 70 - 4 DP |
| Thread module | (19) 0,1 - 1,75 Tpi |
| Sleeve diameter | 40 mm |
| Rapid longitudinal/cross/transversal feed | mittels Joystick |
| ISO spindle taper | gr. 5 |
| Sleeve point size | gr. 3 |
| Number of feeds | 48 mm/U |
| Thread - inches | (53) 75 -2,5 inch. |
| Spindle opening | 32 mm |
| Delivery period | auf Anfrage |
| Top slide adjustment | 95 mm |
| Price | Auf Anfrage |
| : |
